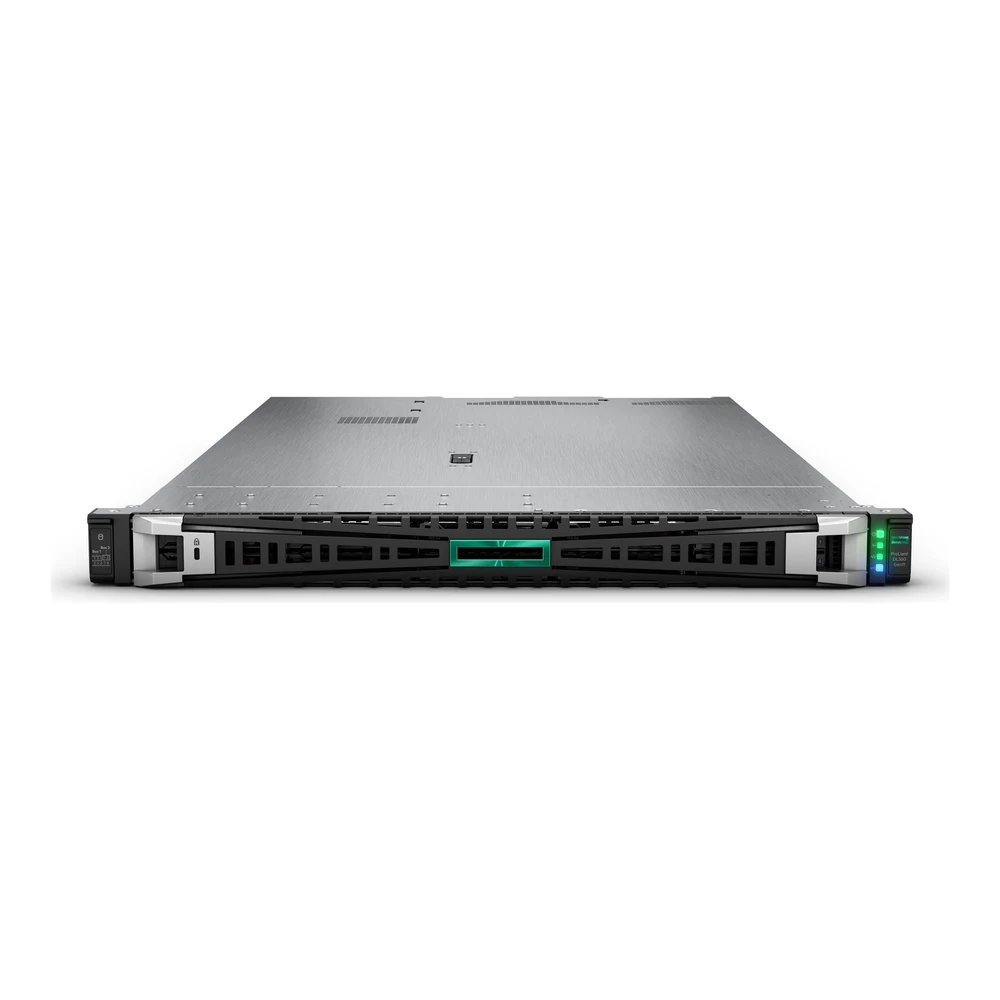

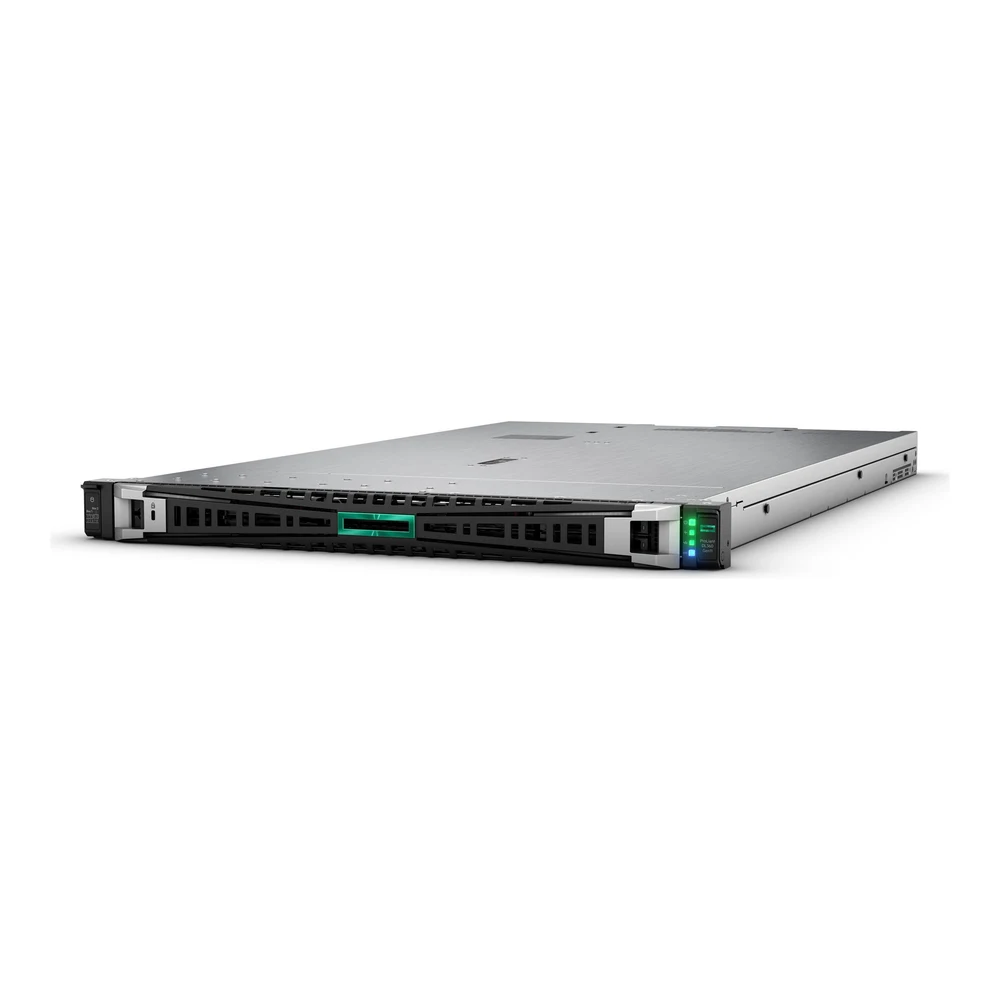

HPE DL360 G11 4514Y 1P 128G 8SFF EU Svr
R 212 810
Available to order
3–7 day deliveryPay by EFT or bank deposit — we confirm stock and the final price before you pay.
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE DL360 G11 4514Y 1P 128G 8SFF EU Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 1U. Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: Europe. CPU: Intel Xeon Silver 4514Y. Clock Speed: 2 GHz.
Specifications
- CPU
- Intel Xeon Silver 4514Y
- Installed Size
- 128 GB (installed) / 8 TB (max)
Highlights
- 16-core Intel Xeon Silver 4514Y processor with up to 3.4 GHz Turbo
- 128 GB DDR5 ECC registered memory expandable up to 8 TB
- Eight 2.5-inch SFF hot-swap drive bays
- Dual-port 10 Gigabit Ethernet networking via Broadcom BCM57416
- Dual 1000W 80 PLUS Titanium hot-plug power supplies
- Integrated Lights-Out 6 (iLO 6) and TPM 2.0 security chip
Networking
- Ethernet Ports
- 2 x 10 Gigabit Ethernet
- Ethernet Controller
- Broadcom BCM57416
- Data Link Protocol
- 10 Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out 6
- Features
- Wake on LAN (WoL), PXE support
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 2
- Max Supported Qty
- 2
- Voltage Required
- AC 100-240 V
- Power Provided
- 1000 Watt
- 80 PLUS Certification
- 80 PLUS Titanium
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Embedded Security
- Trusted Platform Module (TPM 2.0) Security Chip
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Europe
Cache Memory
- Installed Size
- L3 Cache - 30 MB
- Cache Per Processor
- 30 MB
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 75.31 cm
- Height
- 4.29 cm
- Weight
- 14.56 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% RH (non-condensing)
Expansion / Connectivity
- Bays
- 1 (total) / 1 (free) x external Universal Media Bay
- Bays
- 8 (total) / 6 (free) x hot-swap 2.5" SFF
- Slots
- 2 (total) / 2 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
- Interfaces
- 1 x HPE iLO - Type A (1 in front)
- Interfaces
- 1 x HPE iLO - RJ-45
- Interfaces
- 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
- Interfaces
- 1 x VGA
- Interfaces
- 2 x LAN (10Gigabit Ethernet)
- Interfaces
- 1 x USB 2.0
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site
Miscellaneous
- Included Accessories
- 7 x high performance fans
- Compliant Standards
- AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.4
- Manufacturer Selling Program
- HPE Smart Choice
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Provided
- No operating system
- OS Certified
- SuSE Linux Enterprise Server 11 SP4, Ubuntu 22.04, VMware vSphere 8.0 (ESXi)
- Software
- HPE Server UEFI
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Silver 4514Y
- Clock Speed
- 2 GHz
- Max Turbo Speed
- 3.4 GHz
- Number of Cores
- 16-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Intel Turbo Boost Technology
- Chipset Type
- Intel C741
RAM
- Installed Size
- 128 GB (installed) / 8 TB (max)
- Technology
- DDR5 SDRAM - Advanced ECC
- Effective Memory Speed
- 2800 MHz
- Rated Memory Speed
- 2800 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 32 (Total) / 28 (empty)
- Features
- Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
- Configuration Features
- 4 x 32 GB
Storage Controller
- Type
- RAID
- Controller Interface Type
- PCI Express (NVMe)
- Storage Controller Name
- HPE NS204i-u
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 4.0
Related Products
Dell
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
10–15 day deliveryCertified Refurbished
R 101 610Available
HP
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
10–15 day deliveryCertified Refurbished
R 22 140Available
Dell
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
10–15 day deliveryCertified Refurbished
R 50 970Available
Dell
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
10–15 day deliveryCertified Refurbished
R 52 960Available
The HPE DL360 G11 is a compact 1U dual-socket rack server engineered for enterprise data centres and virtualisation workloads. Configured with a 16-core Intel Xeon Silver 4514Y processor, 128 GB of DDR5 ECC memory, dual 10GbE networking, and eight 2.5-inch SFF hot-swap bays, it provides high-density compute and scalable performance.
Frequently asked questions
What workloads is the HPE DL360 G11 server designed for?
- This 1U rack server is built for virtualisation, compute-intensive applications, and enterprise data centre deployments. Its 16-core Intel Xeon Silver processor and 128 GB DDR5 memory provide the throughput and stability needed for heavy multitasking environments.
Can the processing power and memory be upgraded?
- Yes, the system features two-way scalability with support for a second CPU. It also includes 32 DIMM slots in total, enabling DDR5 memory expansion up to 8 TB in a dual-processor configuration.
Does this server come with a local warranty?
- Yes, this server includes a 3-year parts and labour on-site limited warranty serviced locally in South Africa via Server Hub.
