SPT-26D83925C2EB10
HPE DL360 G10 4214R MR416i-a 8SFF BC Svr
R 219 450
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

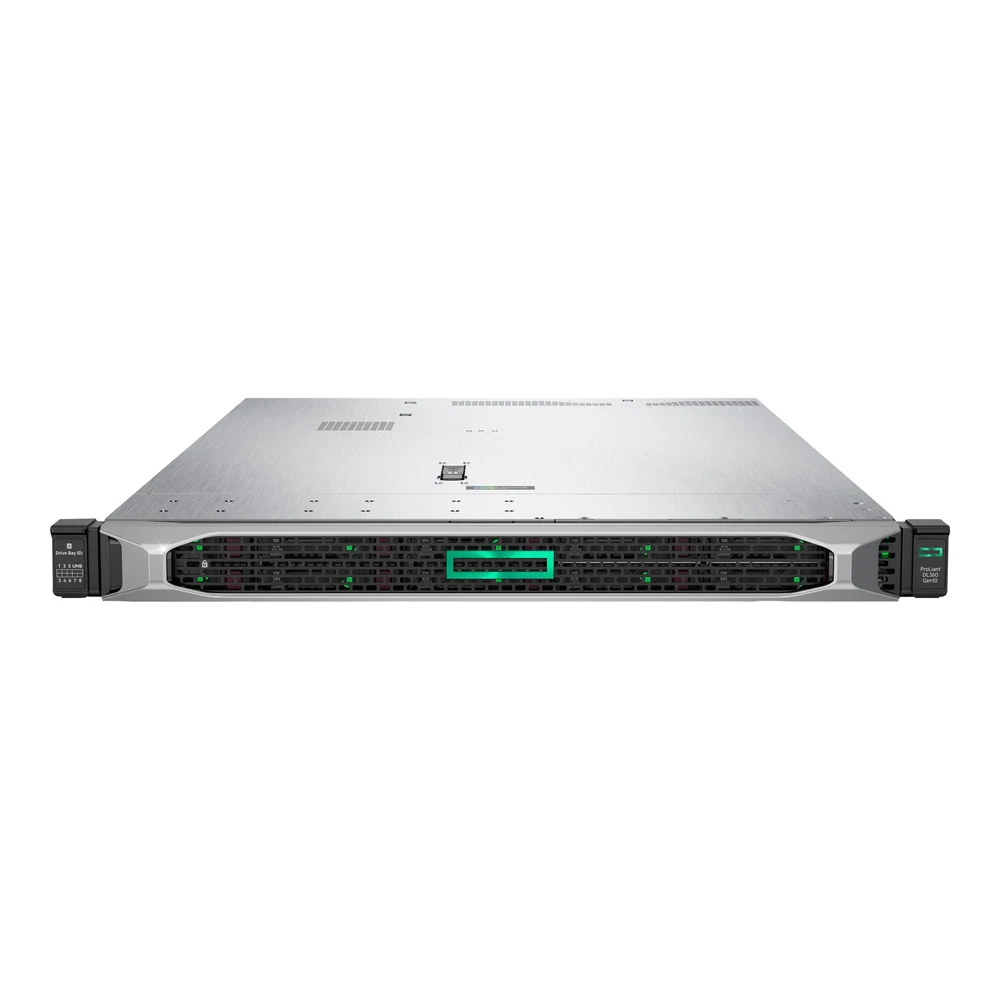

HPE DL360 G10 4214R MR416i-a 8SFF BC Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 1U. Built-in Devices: Led panel. Server Scalability: 2-way. Hot-Swap Bays Qty: 8. Localisation: Region: EMEA. CPU: Intel Xeon Silver 4214R. Clock Speed: 2.4 GHz.
Specifications
- CPU
- Intel Xeon Silver 4214R
- Buffer Size
- 4 GB
Highlights
- Intel Xeon Silver 4214R 12-core processor with 2-way scalability
- 32 GB DDR4 ECC Registered memory expandable up to 1.54 TB
- Broadcom MegaRAID MR416i-a 12G SAS/SATA/NVMe controller with 4 GB cache
- 8 hot-swap 2.5-inch SFF drive bays
- Integrated Lights-Out 5 (iLO 5) remote server management
- 800W 80 PLUS Titanium hot-plug power supply
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0, SMASH CLP
- Remote Management Controller
- Integrated Lights-Out 5
- Features
- Wake on LAN (WoL), PXE support
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Provided
- 800 Watt
- 80 PLUS Certification
- 80 PLUS Titanium
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Built-in Devices
- Led panel
- Server Scalability
- 2-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: EMEA
Cache Memory
- Installed Size
- L3 Cache - 16.5 MB
- Cache Per Processor
- 16.5 MB
Card Reader
- Type
- Card reader
- Supported Flash Memory Cards
- microSD
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 70.7 cm
- Height
- 4.29 cm
- Weight
- 15.01 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Bays
- 1 (total) / 1 (free) x external Universal Media Bay
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height
- Slots
- 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile
- Slots
- 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile)
- Slots
- 1 (total) / 1 (free) x microSD Card (internal)
- Interfaces
- 1 x HPE iLO - Type A (1 in front)
- Interfaces
- 1 x HPE iLO - RJ-45 (1 rear)
- Interfaces
- 5 x USB 3.0 (1 front, 2 rear, 2 internal)
- Interfaces
- 1 x VGA (1 rear)
- Interfaces
- 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Miscellaneous
- Included Accessories
- CPU standard heatsink, 5 x standard hot plug fans, HPE Smart Storage Battery, SFF easy install rails without CMA
- Compliant Standards
- AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Provided
- No operating system
- OS Certified
- CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
- Software
- HPE Server UEFI
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Silver 4214R
- Clock Speed
- 2.4 GHz
- Max Turbo Speed
- 3.5 GHz
- Number of Cores
- 12-core
- CPU Qty
- 1
- Max CPU Qty
- 2
- CPU Upgradability
- Upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Turbo Boost Technology 2
- CPU Socket
- FCLGA3647 Socket
- Chipset Type
- Intel C621
RAM
- Installed Size
- 32 GB / 1.54 TB (max)
- Technology
- DDR4 SDRAM - Advanced ECC
- Effective Memory Speed
- 2400 MHz
- Rated Memory Speed
- 2933 MHz
- Memory Specification Compliance
- PC4-23466
- Form Factor
- DIMM 288-pin
- Slots
- 12 (Total) / 11 (empty)
- Features
- Registered, Online Spare Memory, dual rank, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory, 6-channel memory architecture
- Configuration Features
- 1 x 32 GB
- RAM Supported
- 3 TB Load-Reduced
- RAM Supported
- 1.54 TB registered
- RAM Supported
- 192 GB Non-Volatile
- RAM Supported
- 6 TB Persistent Memory
Storage Controller
- Type
- 1 x RAID - PCIe 4.0 x8
- Controller Interface Type
- Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)
- Storage Controller Name
- Broadcom MegaRAID MR416i-a
- Channel Qty
- 16
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
- Buffer Size
- 4 GB
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 3.0
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE DL360 Gen10 is a compact 1U rack-mountable server engineered for business computing, virtualisation, and data-intensive workloads. Equipped with a 12-core Intel Xeon Silver 4214R processor, 32 GB of DDR4 ECC memory, a Broadcom MegaRAID MR416i-a controller, and eight 2.5-inch hot-swap SFF bays, it offers scalable two-way processing for growing enterprise IT infrastructure.
Frequently asked questions
What is the HPE DL360 Gen10 server used for?
- The HPE DL360 Gen10 is a versatile 1U rack server designed for enterprise virtualisation, database management, and compute-dense workloads. Its 12-core Intel Xeon Silver processor and hardware RAID support make it suitable for medium to large business environments.
Can the storage and memory be expanded?
- Yes, the server supports up to two processors and features 12 DIMM slots per configuration, expandable up to 1.54 TB of registered RAM. Storage can be expanded across its eight 2.5-inch hot-swap SFF drive bays using SAS, SATA, or NVMe interfaces.
Does this server come with a warranty in South Africa?
- Yes, this server is covered by a 3-year manufacturer limited warranty for parts and labour with next business day on-site response. Server Hub provides local support and order fulfillment for South African customers.
