SPT-C633FF67C1FE1F
HPE DL320 G11 4514Y 64G 8SFF EU Svr
R 200 830
Available to order
3–7 day deliveryPay by EFT or bank deposit — we confirm stock and the final price before you pay.
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE DL320 G11 4514Y 64G 8SFF EU Svr.
General — Type: Server. Product Form Factor: Rack-mountable - 1U. Built-in Devices: Led panel. Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip. Server Scalability: 1-way. Hot-Swap Bays Qty: 8. Localisation: Region: Europe. CPU: Intel Xeon Silver 4415Y.
Specifications
- CPU
- Intel Xeon Silver 4415Y
- Installed Size
- 64 GB (installed) / 2.04 TB (max)
- Capacity
- 2 x 480 GB
Highlights
- 16-core Intel Xeon Silver 4415Y processor with up to 3.4 GHz turbo speed
- 64 GB DDR5 ECC memory expandable up to 2.04 TB across 16 DIMM slots
- Eight 2.5-inch SFF hot-swap bays with two 480 GB SATA SSDs included
- HPE MR408i-o Gen11 SPDM RAID controller with 4 GB cache
- Dual redundant 1000W 80 PLUS Titanium hot-plug power supplies
- Integrated Lights-Out 6 (iLO 6) remote management controller
Networking
- Ethernet Ports
- 2 x Gigabit Ethernet
- Ethernet Controller
- Broadcom BCM5720
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, IPMI 2.0
- Remote Management Controller
- Integrated Lights-Out 6
- Features
- Wake on LAN (WoL), ACPI support, PXE support
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Provided
- 1000 Watt
- 80 PLUS Certification
- 80 PLUS Titanium
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Built-in Devices
- Led panel
- Embedded Security
- Trusted Platform Module (TPM 2.0) Security Chip
- Server Scalability
- 1-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Europe
Cache Memory
- Installed Size
- L3 Cache - 30 MB
- Cache Per Processor
- 30 MB
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 60.51 cm
- Height
- 4.28 cm
- Weight
- 12 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% RH (non-condensing)
Expansion / Connectivity
- Bays
- 8 (total) / 6 (free) x hot-swap 2.5" SFF
- Slots
- 2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode)
- Slots
- 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
- Interfaces
- 1 x HPE iLO (1 in front) (service port)
- Interfaces
- 3 x USB 3.2 Gen 1 (1 front, 2 rear)
- Interfaces
- 1 x USB 2.0
- Interfaces
- 1 x VGA
- Interfaces
- 2 x LAN (Gigabit Ethernet)
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Hard Drive
- Type
- SSD
- Capacity
- 2 x 480 GB
- Interface Type
- SATA
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Miscellaneous
- Included Accessories
- 7 x standard fans
- Compliant Standards
- AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3
- Manufacturer Selling Program
- HPE Smart Choice
Monitor
- Monitor Type
- None.
Operating System / Software
- OS Provided
- No operating system
- OS Certified
- CentOS, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.6, Ubuntu 22.04 LTS, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1
Optical Storage
- Type
- No optical drive
Processor / Chipset
- CPU
- Intel Xeon Silver 4415Y
- Clock Speed
- 2 GHz
- Max Turbo Speed
- 3.4 GHz
- Number of Cores
- 16-core
- CPU Qty
- 1
- Max CPU Qty
- 1
- CPU Upgradability
- Upgradable
- Processor Main Features
- Intel Turbo Boost Technology
- Chipset Type
- Intel C741
RAM
- Installed Size
- 64 GB (installed) / 2.04 TB (max)
- Technology
- DDR5 SDRAM - Advanced ECC
- Effective Memory Speed
- 2800 MHz
- Rated Memory Speed
- 2800 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 16 (Total) / 14 (empty)
- Features
- Registered, 8-channel memory architecture, HPE SmartMemory
- Configuration Features
- 2 x 32 GB
Storage Controller
- Type
- 1 x RAID - OCP
- Controller Interface Type
- Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)
- Storage Controller Name
- HPE MR408i-o Gen11 SPDM
- Channel Qty
- 8
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60
- Buffer Size
- 4 GB
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 4.0
Related Products
Dell
Dell PowerEdge R640 NVMe Server 2.50Ghz 40-Core 512GB RAM + 4x Caddies + Rails
10–15 day deliveryCertified Refurbished
R 101 610Available
HP
HP ProLiant DL380 G9 Server 8-Bay SFF 2.40Ghz 16-Core 32GB RAM + 3.0TB SATA HDDs
10–15 day deliveryCertified Refurbished
R 22 140Available
Dell
Dell PowerEdge R440 Server 8-Bay SFF 2.70Ghz 24-Core 128GB RAM + 2.4TB SATA SSDs
10–15 day deliveryCertified Refurbished
R 50 970Available
Dell
Dell PowerEdge R740xd NVMe Server 24-Bay 2.60Ghz 36-Core 128GB RAM + 24x Caddies
10–15 day deliveryCertified Refurbished
R 52 960Available

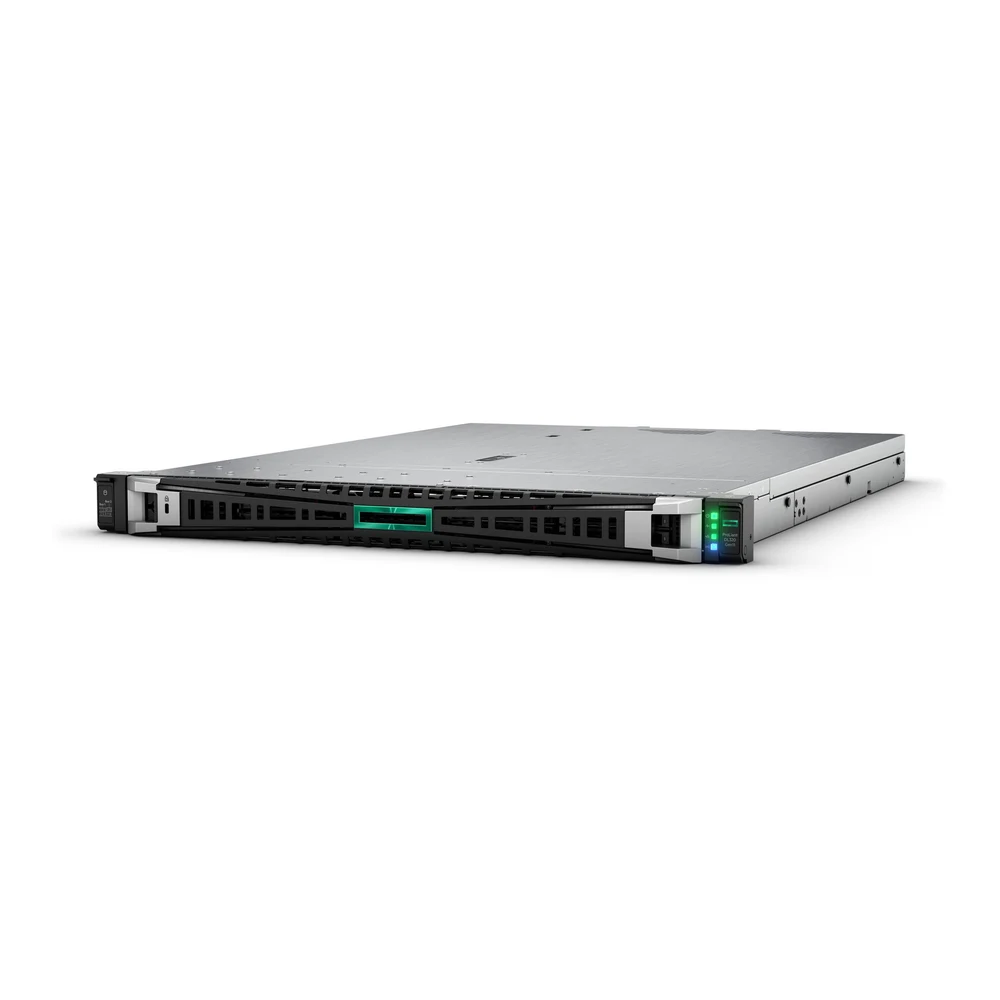

The HPE DL320 Gen11 is a compact 1U rack-mountable enterprise server powered by a 16-core Intel Xeon Silver 4415Y processor and 64GB of DDR5 RAM. Engineered for virtualisation, edge workloads, and data centre deployments, it features eight 2.5-inch hot-swap drive bays, redundant 1000W Titanium power supplies, and integrated HPE iLO 6 remote management.
Frequently asked questions
What workloads is the HPE DL320 Gen11 server designed for?
- The HPE DL320 Gen11 is built for edge computing, virtualisation, and front-end data centre workloads. Its 16-core Intel Xeon Silver 4415Y processor and DDR5 architecture deliver solid single-socket compute density in a compact 1U rack form factor.
What storage configuration does this HPE DL320 Gen11 model provide?
- The server includes eight 2.5-inch hot-swap SFF drive bays, with two 480 GB SATA solid state drives pre-installed. Drives are managed via an HPE MR408i-o Gen11 storage controller supporting SATA, SAS, and NVMe interfaces across multiple RAID levels.
Does this HPE server come with a local warranty in South Africa?
- Yes, this server is covered by a 3-year on-site parts and labour warranty with next-business-day response. Warranty support and service requests are facilitated directly through Server Hub.
