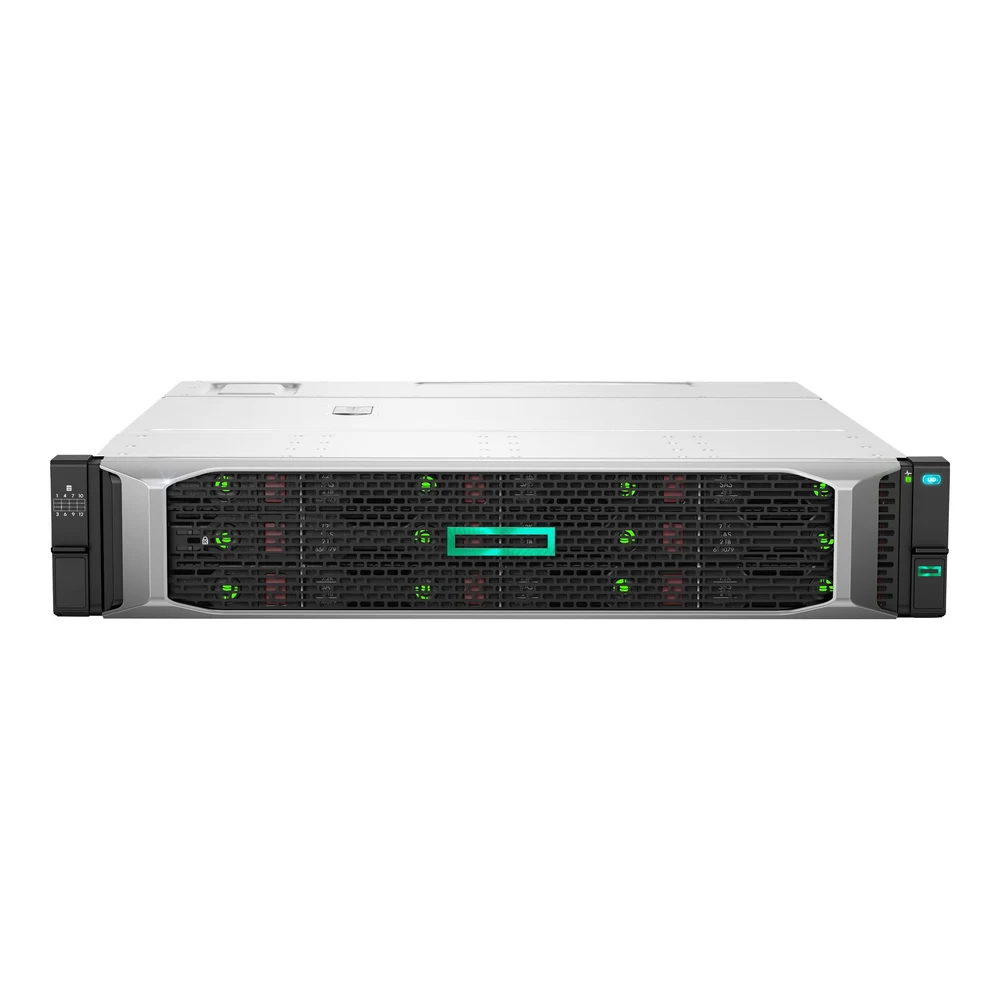

HPE D3610 Enclosure
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE D3610 Enclosure.
Device Type: Storage enclosure. Enclosure Type: Rack-mountable - 2U. Installed Devices / Modules Qty: 12. Supported Devices / Modules Qty: 12. Supported Drives: SATA-600 / SAS-3. Max Supported Capacity: 120 TB. CPU: No CPU. Type: No HDD.
Specifications
- CPU
- No CPU
Highlights
- 12 x 3.5-inch LFF hot-swap drive bays supporting SAS-3 and SATA-600
- High-speed 12Gb/s SAS interface for external storage expansion
- Up to 120 TB maximum supported storage capacity
- Dual 550W hot-plug redundant power supplies with 80 PLUS Platinum efficiency
- Includes rack mounting kit and dual 0.5 m mini SAS HD cables
Processor
- CPU
- No CPU
Storage
- Max Supported Capacity
- 120 TB
Power
- Power Device
- 2 x internal power supply - hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 100-240 V 50/60 Hz
- Power Provided
- 550 Watt
- 80 PLUS Certification
- 80 PLUS Platinum
Chassis
- Installed Devices / Modules Qty
- 12
- Supported Devices / Modules Qty
- 12
- Supported Drives
- SATA-600 / SAS-3
General
- Device Type
- Storage enclosure
- Enclosure Type
- Rack-mountable - 2U
Dimensions & Weight
- Width
- 44.8 cm
- Depth
- 59.8 cm
- Height
- 8.7 cm
- Weight
- 17.2 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 96.8 cm
- Shipping Depth
- 60.3 cm
- Shipping Height
- 28.3 cm
- Shipping Weight
- 35.38 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
- Sound Emission
- 53 dBA
Expansion / Connectivity
- Expansion Bays
- 12 (total) / 12 (free) x hot-swap - 3.5" LFF
- Interfaces
- 1 x SAS 12Gb/s
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Miscellaneous
- Features
- Redundant fans, 96% efficiency power supply
- Cables Included
- 2 x mini SAS HD cable - 0.5 m
- Included Accessories
- Rack mounting kit, 2 x PDU interconnect cords
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE D3610 Enclosure is a 2U rack-mountable storage enclosure designed for enterprise capacity expansion and high-density data environments. Featuring 12 hot-swap 3.5-inch LFF bays supporting SAS-3 and SATA-600 drives up to 120 TB total capacity, it provides reliable expansion equipped with dual 550W redundant power supplies and high-speed 12Gb/s SAS connectivity.
Frequently asked questions
What is the HPE D3610 Enclosure used for?
- The HPE D3610 is an external direct-attached storage enclosure used to expand the drive capacity of connected servers. It allows businesses to add up to 12 large form factor drives over 12Gb/s SAS connections for data storage, backup, or tiered archiving.
Does the HPE D3610 Enclosure come with hard drives installed?
- No, this enclosure is supplied without pre-installed drives. It includes 12 empty 3.5-inch hot-swap drive bays ready to accommodate your choice of compatible SAS-3 or SATA-600 hard drives up to a maximum total capacity of 120 TB.
Does the enclosure include a warranty in South Africa?
- Yes, the enclosure is covered by a 3-year limited parts warranty. Purchasing through Server Hub ensures prompt local South African support and warranty service.
