HPE BLc 40G QSFP+ MPO SR4 100m XCVR
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

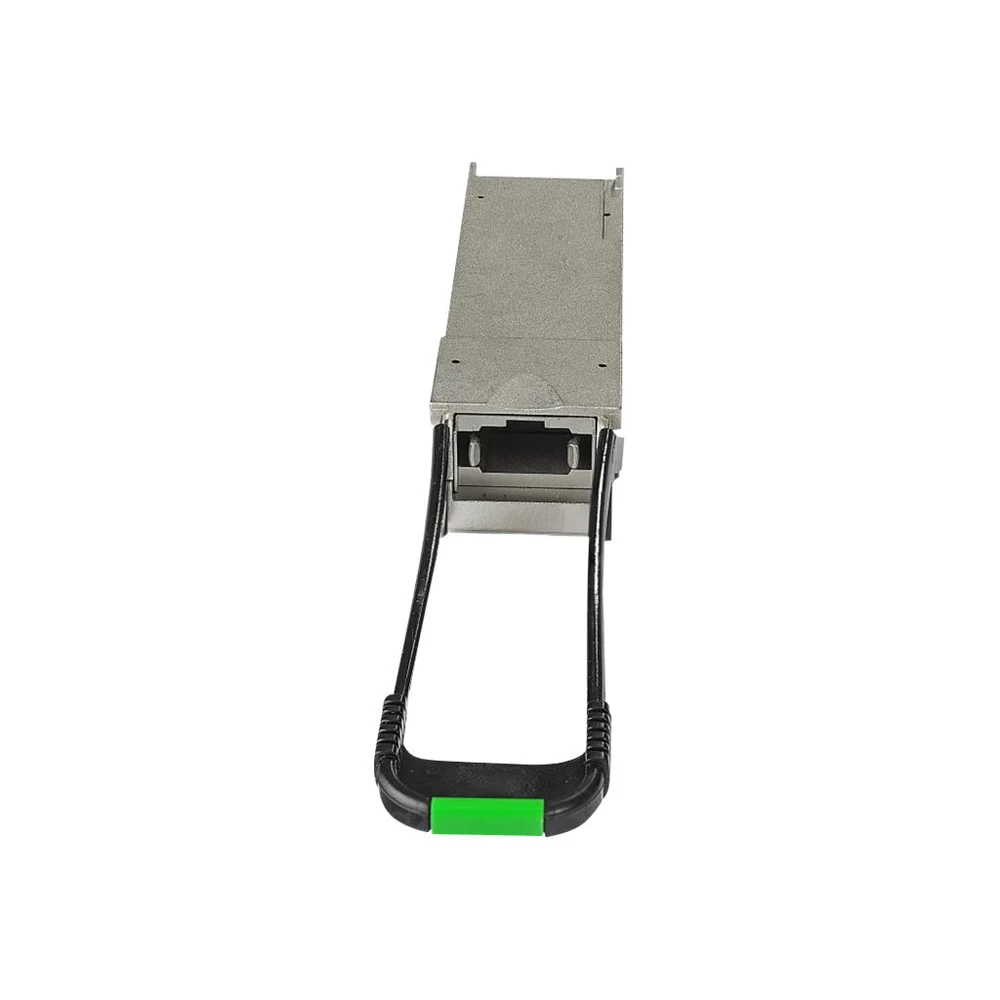

HPE BLc 40G QSFP+ MPO SR4 100m XCVR.
Device Type: QSFP+ transceiver module. Form Factor: Plug-in module. Connectivity Technology: Wired. Cabling Type: 40GBASE-SR4. Data Link Protocol: 40 Gigabit LAN. Data Transfer Rate: 40 Gbps. Optical Wave Length: 850 nm. Max Transfer Distance: 100 m.
Specifications
Highlights
- 40 Gbps data transfer rate over 40 Gigabit LAN
- 40GBASE-SR4 cabling with MPO multi-mode interface
- Maximum transfer distance of up to 100 metres
- 850 nm optical wavelength support
- Designed for HPE Virtual Connect FlexFabric-20/40 F8 Module
- Compliant with IEEE 802.3ba standards
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 40GBASE-SR4
- Data Link Protocol
- 40 Gigabit LAN
- Data Transfer Rate
- 40 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 100 m
- Compliant Standards
- IEEE 802.3ba
General
- Device Type
- QSFP+ transceiver module
- Form Factor
- Plug-in module
Compatibility Information
- Designed For
- HPE Virtual Connect FlexFabric-20/40 F8 Module
Dimensions & Weight
- Width
- 1.835 cm
- Depth
- 13.18 cm
- Height
- 1.371 cm
- Weight
- 35 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 0 - 85% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 40GBASE-SR4 - MPO multi-mode
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE BLc 40G QSFP+ MPO SR4 100m XCVR is a plug-in optical transceiver module delivering 40 Gbps wired network connectivity over multi-mode fibre. Designed for enterprise data centre environments utilising the HPE Virtual Connect FlexFabric-20/40 F8 Module, it enables short-range 40 Gigabit LAN links up to 100 metres using an 850 nm wavelength.
Frequently asked questions
What is the HPE BLc 40G QSFP+ MPO SR4 transceiver used for?
- This optical transceiver is used to provide high-speed 40 Gigabit Ethernet connectivity in enterprise blade and data centre environments. It connects compatible networking hardware over multi-mode fibre cabling for short-range links up to 100 metres.
Which systems are compatible with this transceiver module?
- This transceiver is designed specifically for the HPE Virtual Connect FlexFabric-20/40 F8 Module. It operates in line with standard IEEE 802.3ba specifications using a 40GBASE-SR4 MPO interface.
Does this HPE 40G transceiver come with a warranty?
- Yes, units purchased through Server Hub come supported by a local South African warranty. You can place your order securely with pricing displayed in ZAR.
