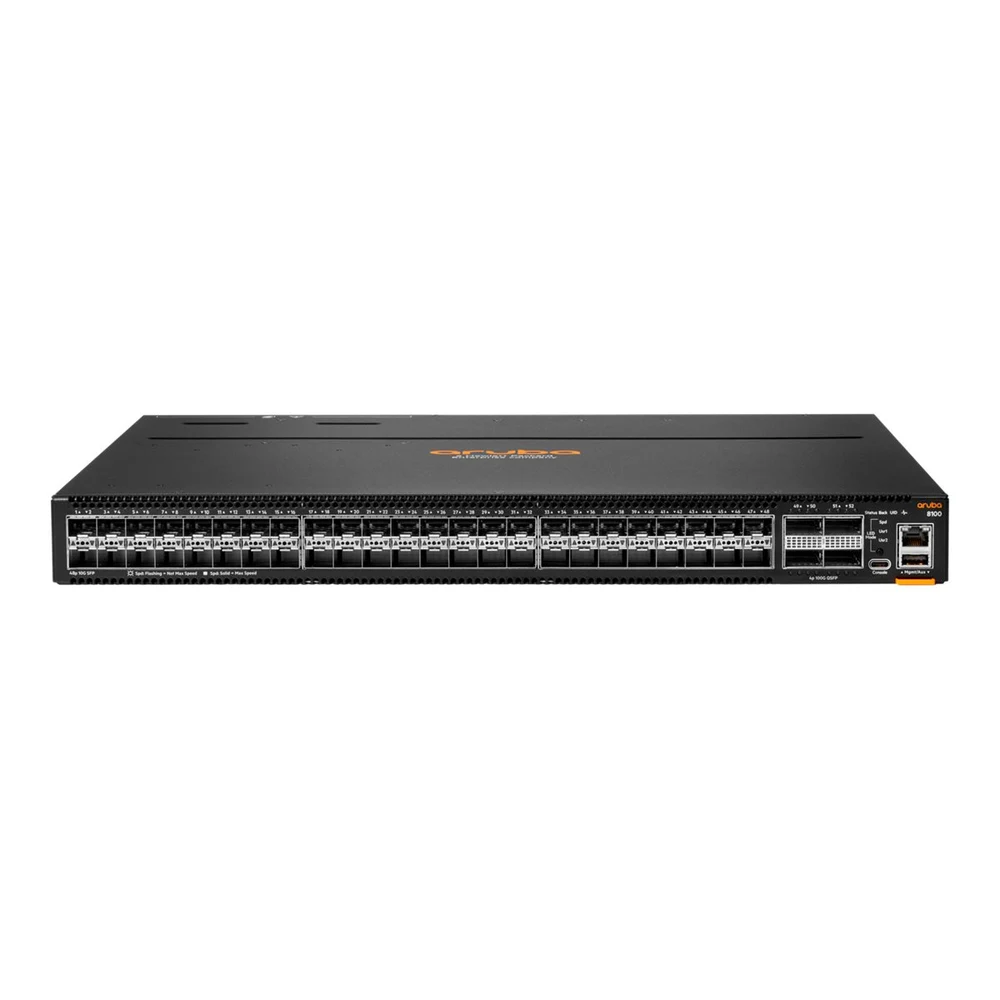

HPE ANW 8100-48XF4C BF3F2AC Bdl
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE ANW 8100-48XF4C BF3F2AC Bdl.
Device Type: Switch - 48 ports - L3 - Managed. Enclosure Type: Back to front airflow rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28. Performance: Switching capacity: 1.76 Tbps. Capacity: IPv4 ACL entries (ingress): 16384; IPv6 ACL entries (ingress): 4096; MAC ACL entries (ingress): 16384; IPv4 ACL entries (egress): 2048; IPv6 ACL entries (egress): 512; MAC ACL entries (egress): 2048; Maximum number of VLANs: 1024; IGMP groups: 4000; MLD groups: 4000; Packet buffer size: 32 MB; IPv4 routes (Multicast): 4096; IPv6 routes (Multicast): 4096; Link aggregation groups: 54; IPv4 routes (Unicast): 24576; IPv6 routes (Unicast): 12288. MAC Address Table Size: 147456 entries. Jumbo Frame Support: 9000 bytes.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 16 GB
- Capacity
- Packet buffer size: 32 MB
Highlights
- 48 x 1G/10GbE SFP/SFP+ ports and 4 x 40G/100GbE QSFP28 uplinks
- 1.76 Tbps switching capacity with a 32 MB packet buffer
- 1U rack-mountable chassis with back-to-front airflow
- Dual 550W hot-plug AC power supplies and three fan trays included
- Layer 3 routing support including BGP-4, OSPF, and RIP-2
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Provided
- 550 Watt
- Voltage Required
- AC 100-127/200-240 V (50/60 Hz)
- Power Consumption Stand by
- 120 Watt
General
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Back to front airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x 1 Gigabit / 10 Gigabit SFP / SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
- Performance
- Switching capacity: 1.76 Tbps
- Capacity
- IPv4 ACL entries (ingress): 16384
- Capacity
- IPv6 ACL entries (ingress): 4096
- Capacity
- MAC ACL entries (ingress): 16384
- Capacity
- IPv4 ACL entries (egress): 2048
- Capacity
- IPv6 ACL entries (egress): 512
- Capacity
- MAC ACL entries (egress): 2048
- Capacity
- Maximum number of VLANs: 1024
- Capacity
- IGMP groups: 4000
- Capacity
- MLD groups: 4000
- Capacity
- Packet buffer size: 32 MB
- Capacity
- IPv4 routes (Multicast): 4096
- Capacity
- IPv6 routes (Multicast): 4096
- Capacity
- Link aggregation groups: 54
- Capacity
- IPv4 routes (Unicast): 24576
- Capacity
- IPv6 routes (Unicast): 12288
- MAC Address Table Size
- 147456 entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 2, SNMP, SNMP 3, MIB
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Layer 2 switching, port mirroring, sFlow, Quality of Service (QoS), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Data Center Bridging (DCB), Generic Routing Encapsulation (GRE), Ethernet Ring Protection Switching (ERPS), RDMA over Converged Ethernet (RoCE), Bridge protocol data unit (BPDU), RDMA over Converged Ethernet (RoCE) v2, Open Shortest Path First (OSPF), Network Timing Protocol (NTP), policy based routing, Rapid PVST+ (RPVST+), Unidirectional Link Detection (UDL
- Compliant Standards
- IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 16 GB
- Flash Memory
- 32 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 40.64 cm
- Height
- 4.4 cm
- Weight
- 8.39 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 4 x 40/100Gbit LAN QSFP28/QSFP+ uplink
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x serial RJ-45
- Interfaces
- 1 x USB Type A AUX
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 3 fan trays, 2-Post Rack Kit
- Compliant Standards
- IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, VCCI Class A, EN 61000-3-3:2013, IEC 61000-3-3:2013, EMC 2014/30/EU, CNS 13438 Class A, Directive 2014/35/EU, KN32 Class A, EN 55032:2015, CISPR 35, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1
Software / System Requirements
- OS Required
- AOS-CX
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE ANW 8100-48XF4C is a high-performance 1U Layer 3 managed rack switch designed for enterprise data centres and aggregation environments. It features 48 1G/10G SFP/SFP+ ports, 4 40G/100G QSFP28 uplinks, and a 1.76 Tbps switching capacity. Equipped with back-to-front airflow, dual hot-plug power supplies, and AOS-CX, it provides resilient, scalable network connectivity.
Frequently asked questions
What network connectivity does the HPE ANW 8100-48XF4C provide?
- This switch features 48 SFP/SFP+ ports supporting 1GbE and 10GbE speeds, along with 4 QSFP28/QSFP+ uplink ports supporting 40GbE and 100GbE connections. It delivers up to 1.76 Tbps of switching capacity for demanding enterprise network traffic.
What hardware is included in the HPE ANW 8100-48XF4C bundle?
- The bundle includes the 1U rack-mountable switch chassis, two 550W hot-plug AC power supplies, three fan trays providing back-to-front airflow, and a 2-post rack kit. It is powered by a 1.8 GHz ARM Cortex-A72 processor with 16 GB of RAM.
Does the switch come with a warranty in South Africa?
- Yes, this HPE switch is covered by warranty support handled locally in South Africa via Server Hub.
