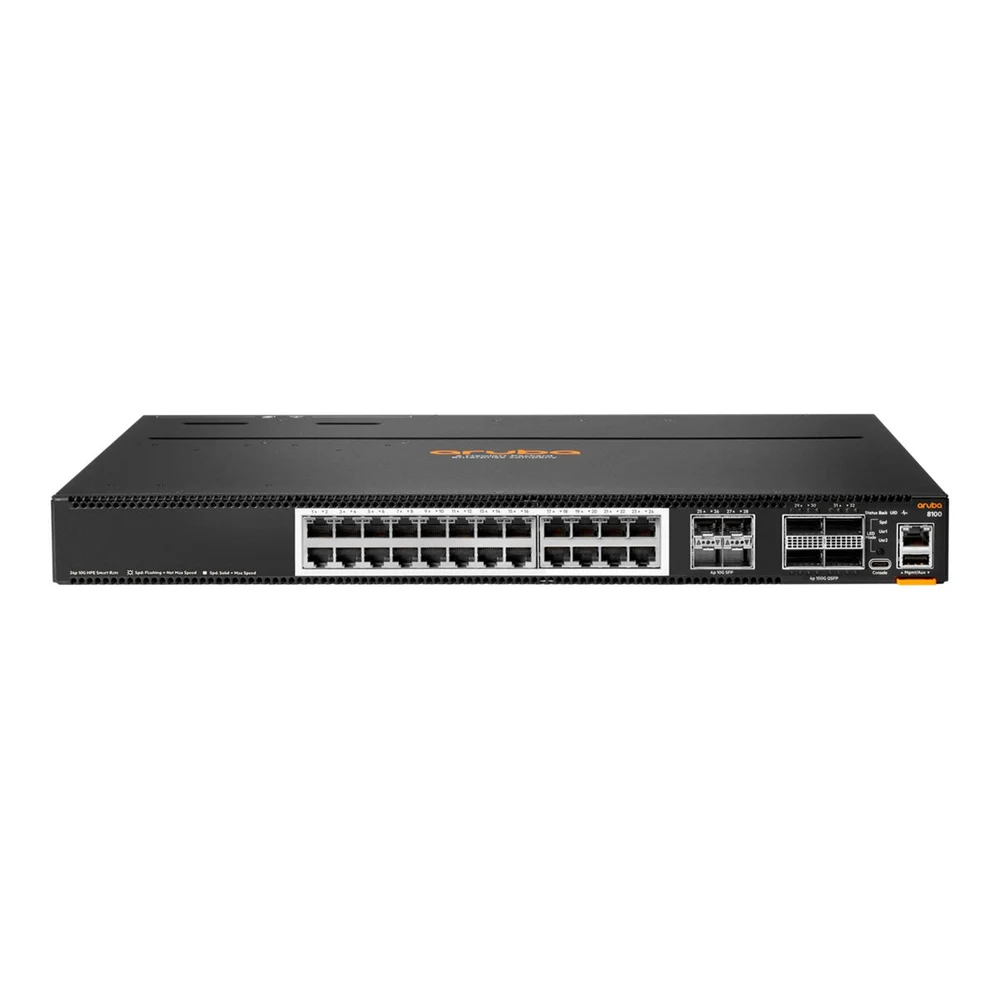

HPE ANW 8100-24XT4XF4C BF3F2AC Bdl
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE ANW 8100-24XT4XF4C BF3F2AC Bdl.
Device Type: Switch - 24 ports - L3 - Managed. Enclosure Type: Back to front airflow rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28. Performance: Switching capacity: 1.36 Tbps. Capacity: IPv4 ACL entries (ingress): 16384; IPv6 ACL entries (ingress): 4096; MAC ACL entries (ingress): 16384; IPv4 ACL entries (egress): 2048; IPv6 ACL entries (egress): 512; MAC ACL entries (egress): 2048; Maximum number of VLANs: 1024; IGMP groups: 4000; MLD groups: 4000; Packet buffer size: 32 MB; IPv4 routes (Multicast): 4096; IPv6 routes (Multicast): 4096; Link aggregation groups: 54; IPv4 routes (Unicast): 24576; IPv6 routes (Unicast): 12288. MAC Address Table Size: 147456 entries. Jumbo Frame Support: 9000 bytes.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 16 GB
- Capacity
- Packet buffer size: 32 MB
Highlights
- 24 x 100M/1G/2.5G/5G/10GBase-T multi-speed RJ-45 ports
- 4 x 1G/10G SFP+ and 4 x 40G/100G QSFP28 uplink interfaces
- 1.36 Tbps total switching capacity with 32 MB packet buffer
- 1U rack-mountable chassis with back-to-front airflow and 3 fan trays
- Dual hot-plug 550W power supplies for hardware redundancy
- Advanced Layer 3 routing support including BGP-4, OSPF, and ECMP
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Provided
- 550 Watt
- Voltage Required
- AC 100-127/200-240 V (50/60 Hz)
- Power Consumption Stand by
- 120 Watt
General
- Device Type
- Switch - 24 ports - L3 - Managed
- Enclosure Type
- Back to front airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 100/1000/2.5G/5G/10GBase-T + 4 x Gigabit SFP / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ / 100 Gigabit QSFP28
- Performance
- Switching capacity: 1.36 Tbps
- Capacity
- IPv4 ACL entries (ingress): 16384
- Capacity
- IPv6 ACL entries (ingress): 4096
- Capacity
- MAC ACL entries (ingress): 16384
- Capacity
- IPv4 ACL entries (egress): 2048
- Capacity
- IPv6 ACL entries (egress): 512
- Capacity
- MAC ACL entries (egress): 2048
- Capacity
- Maximum number of VLANs: 1024
- Capacity
- IGMP groups: 4000
- Capacity
- MLD groups: 4000
- Capacity
- Packet buffer size: 32 MB
- Capacity
- IPv4 routes (Multicast): 4096
- Capacity
- IPv6 routes (Multicast): 4096
- Capacity
- Link aggregation groups: 54
- Capacity
- IPv4 routes (Unicast): 24576
- Capacity
- IPv6 routes (Unicast): 12288
- MAC Address Table Size
- 147456 entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- BGP-4, RIP-2, IGMPv2, IGMP, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 2, SNMP, SNMP 3, MIB
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Layer 2 switching, port mirroring, sFlow, Quality of Service (QoS), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Data Center Bridging (DCB), Generic Routing Encapsulation (GRE), Ethernet Ring Protection Switching (ERPS), RDMA over Converged Ethernet (RoCE), Bridge protocol data unit (BPDU), RDMA over Converged Ethernet (RoCE) v2, Open Shortest Path First (OSPF), Network Timing Protocol (NTP), policy based routing, Rapid PVST+ (RPVST+), Unidirectional Link Detection (UDL
- Compliant Standards
- IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- RAM
- 16 GB
- Flash Memory
- 32 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 40.64 cm
- Height
- 4.4 cm
- Weight
- 8.3 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 100/1000/2.5G/5G/10GBase-T RJ-45
- Interfaces
- 4 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 4 x 40/100Gbit LAN QSFP28/QSFP+
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x serial RJ-45
- Interfaces
- 1 x USB Type A AUX
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 3 fan trays
- Compliant Standards
- IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, VCCI Class A, EN 61000-3-3:2013, IEC 61000-3-3:2013, EMC 2014/30/EU, CNS 13438 Class A, Directive 2014/35/EU, KN32 Class A, EN 55032:2015, CISPR 35, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1
Software / System Requirements
- OS Required
- AOS-CX
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE ANW 8100-24XT4XF4C is a 1U managed Layer 3 enterprise switch designed for high-density data centre and campus aggregation networks. Powered by AOS-CX, it offers 24 multi-gigabit 10GBase-T ports alongside high-speed 10G SFP+ and 100G QSFP28 uplinks, delivering 1.36 Tbps of switching capacity with back-to-front airflow and dual hot-plug power supplies.
Frequently asked questions
What is the HPE ANW 8100-24XT4XF4C switch used for?
- This managed Layer 3 switch is built for enterprise access, server aggregation, and top-of-rack data centre deployments. It provides high-speed 10GBase-T copper connectivity for servers and workstations, paired with 40G and 100G QSFP28 uplinks to connect seamlessly to core network infrastructure.
What type of airflow and power configuration does this switch have?
- The switch comes configured for back-to-front airflow and includes three fan trays to maintain optimal operating temperatures. It also includes two 550W hot-plug AC power supplies to deliver continuous, redundant power in standard 1U server racks.
Does the switch come with a warranty?
- Yes, orders placed through Server Hub include warranty coverage and local South African support. Please refer to the product listing details above or contact our sales team for specific warranty service terms.
