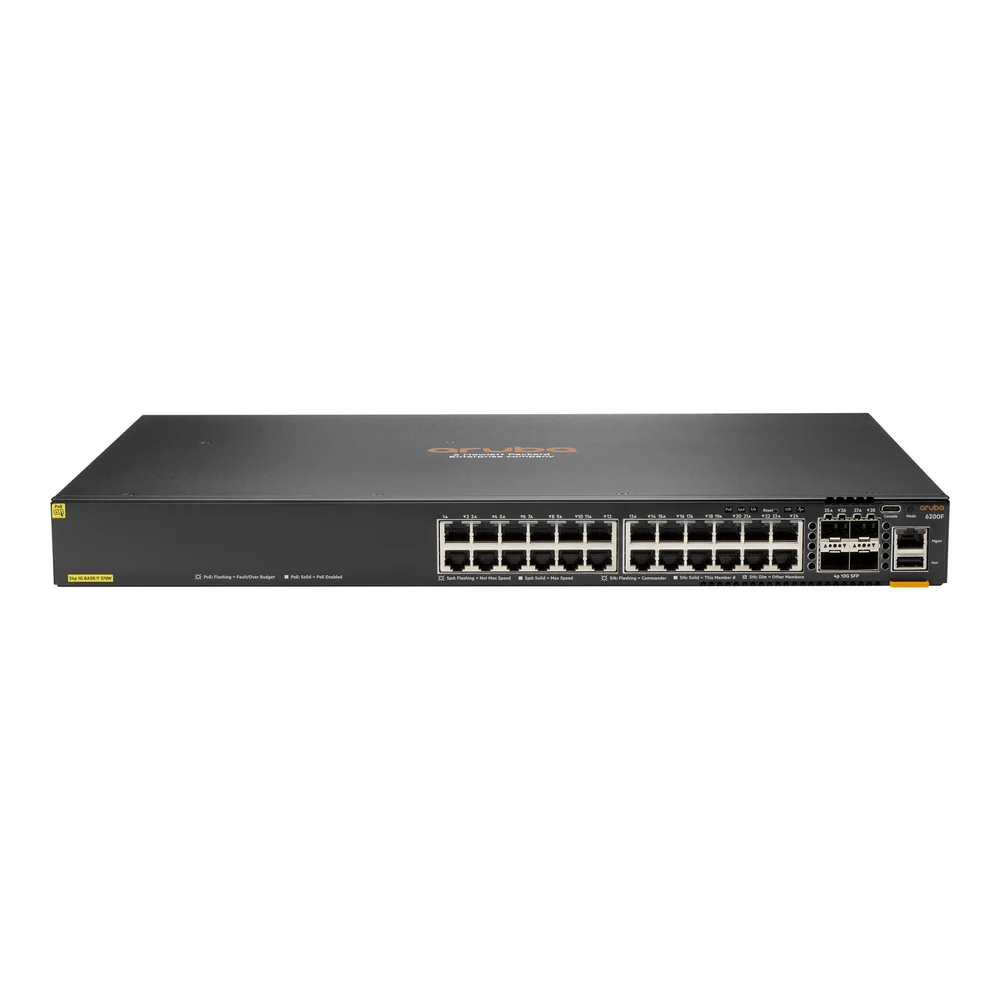

HPE ANW 6200F 24G C4 4SFP+370W Sw.
Device Type: Switch - 24 ports - L3 - Managed - stackable. Enclosure Type: Rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink). Power Over Ethernet (PoE): PoE+. PoE Budget: 370 W. Performance: Switching capacity: 128 Gbps; Throughput: 95.2 Mpps; Latency (1 Gbps): 2.28 µs; Latency (10 Gbps): 1.46 µs; Stacking bandwidth: 40 Gbps. Capacity: Packet buffer size: 8 MB; IPv4 ACL entries (ingress): 5120; IPv6 ACL entries (ingress): 1280; MAC ACL entries (ingress): 5120; IPv4 ACL entries (egress): 2048; IPv6 ACL entries (egress): 512; MAC ACL entries (egress): 2048.
Specifications
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
- Capacity
- Packet buffer size: 8 MB
Highlights
- 24 x Gigabit Ethernet PoE+ ports with 370W power budget
- 4 x 1G/10G SFP+ high-speed uplink interfaces
- 128 Gbps switching capacity and 95.2 Mpps throughput
- Stackable Layer 3 managed switch supporting up to 8 units
- 1U rack-mountable chassis with internal power supply
Power
- Power Device
- Internal power supply
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 128 Gbps
- Performance
- Throughput: 95.2 Mpps
- Performance
- Latency (1 Gbps): 2.28 µs
- Performance
- Latency (10 Gbps): 1.46 µs
- Performance
- Stacking bandwidth: 40 Gbps
- Capacity
- Packet buffer size: 8 MB
- Capacity
- IPv4 ACL entries (ingress): 5120
- Capacity
- IPv6 ACL entries (ingress): 1280
- Capacity
- MAC ACL entries (ingress): 5120
- Capacity
- IPv4 ACL entries (egress): 2048
- Capacity
- IPv6 ACL entries (egress): 512
- Capacity
- MAC ACL entries (egress): 2048
- Jumbo Frame Support
- 9220 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
- Remote Management Protocol
- RMON, CLI, MIB
- Encryption Algorithm
- SSL, FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Virtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- 1 x ARM Cortex-A72: 1.8 GHz
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 30.43 cm
- Height
- 4.37 cm
- Weight
- 4.39 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
- Interfaces
- 4 x 100/1000/10G SFP+ uplink
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x management
- Interfaces
- 1 x USB Type A host
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CAN/CSA C22.
- Pricing Type
- BTO
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE 6200F 24G 4SFP+ 370W switch is a stackable Layer 3 managed enterprise switch engineered for modern campus and branch networks. Equipped with 24 Gigabit PoE+ ports delivering a 370W power budget and four 10GbE SFP+ uplinks, it provides secure, high-performance connectivity with 128 Gbps switching capacity for access points, VoIP phones, and office workstations.
Frequently asked questions
What is the HPE 6200F 24G 4SFP+ 370W switch used for?
- This switch is designed for enterprise access layers, branch offices, and campus deployments. It delivers Layer 3 routing alongside 370W of PoE+ power to run connected devices such as IP cameras, wireless access points, and VoIP handsets.
Does this HPE switch support 10 Gigabit uplinks and stacking?
- Yes, the switch includes four dedicated 1G/10G SFP+ ports for high-bandwidth uplink connections. It also supports stacking of up to eight units with a dedicated 40 Gbps stacking bandwidth for simplified management and network scalability.
Does the switch come with a warranty in South Africa?
- Yes, this HPE switch comes with local South African warranty support when purchased through Server Hub. Orders are processed in rand and backed by local assistance for reliable enterprise hardware support.
