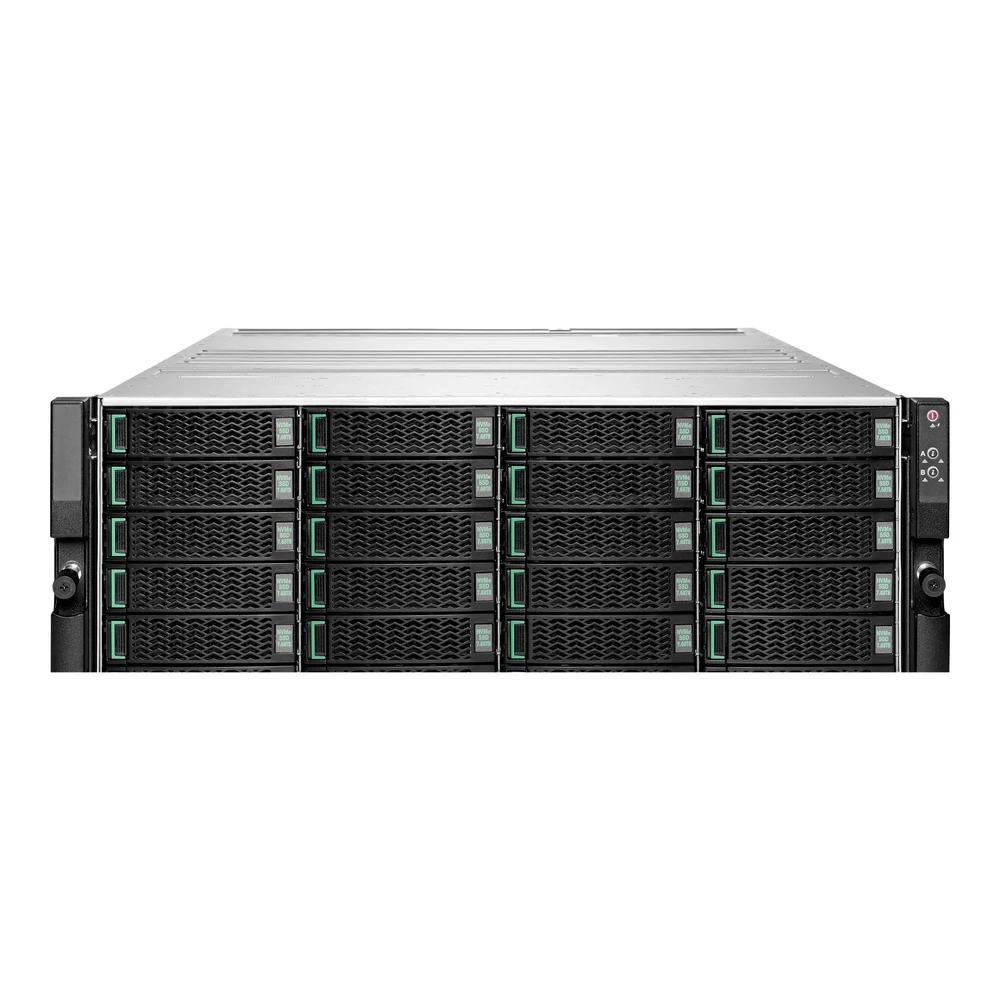

HPE Alletra 6010 AF DC TR Base Array
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE Alletra 6010 AF DC TR Base Array.
Device Type: Solid state drive array. Enclosure Type: Rack-mountable - 4U. Supported Devices / Modules Qty: 24. Supported Drives: PCIe (NVMe). Max Supported Capacity: 92 TB. Storage Controller — Type: RAID. Storage Controller — Installed Qty: 2. Interface Type: PCI Express (NVMe).
Specifications
Highlights
- 4U rack-mountable all-flash storage enclosure
- Supports up to 24 PCIe NVMe solid state drives
- Maximum supported capacity of 92 TB
- Dual installed storage controllers supporting RAID TP
- Broad OS compatibility including VMware vSphere, Windows Server, and Linux
Storage
- Max Supported Capacity
- 92 TB
Power
- Power Device
- 0 x internal power supply - hot-plug
- Max Supported Qty
- 4
- Power Redundancy
- Optional
Chassis
- Supported Devices / Modules Qty
- 24
- Supported Drives
- PCIe (NVMe)
General
- Device Type
- Solid state drive array
- Enclosure Type
- Rack-mountable - 4U
Dimensions & Weight
- Width
- 43.9 cm
- Depth
- 80 cm
- Height
- 17.58 cm
- Weight
- 54.5 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Hard Drive
- Type
- No HDD
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 1 year
- Service & Support
- New releases update - software - 90 days
Miscellaneous
- Compliant Standards
- UL, cUL, NOM, CCC, IC Class A, WEEE, FCC Part 15 B Class A, BSMI Class A, KC, VCCI V-3 Class A ITE, VCCI Class A, EAC, CITC, EN 50581:2012, RCM, RoHS 2011/65/EU, BIS, CoC, EN 55024:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, EN 55032:2012, ICES-003 issue 6 Class A, LoA, CISPR 32:2012, TP TC 020/2011, CISPR 24:2010+A1:2015, NBTC, TCVN 7189: 2009
- Pricing Type
- Tech refresh
Storage Controller
- Type
- RAID
- Installed Qty
- 2
- Interface Type
- PCI Express (NVMe)
- RAID Level
- RAID TP
Storage Controller (2nd)
- Installed Qty
- 2
System Requirements
- OS Required
- IBM AIX, HP-UX, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, Oracle Solaris, Citrix XenServer, Oracle Linux, SUSE Linux Enterprise, Microsoft Windows Hyper-V Server, VMware vSphere
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Alletra 6010 AF DC TR Base Array is an enterprise 4U rack-mountable all-flash solid state storage array designed for demanding data centre workloads. Engineered for high-throughput environments, it supports up to 24 PCIe NVMe drives with a maximum capacity of 92 TB and features dual RAID controllers running RAID TP.
Frequently asked questions
What is the HPE Alletra 6010 AF Base Array used for?
- The HPE Alletra 6010 AF is an all-flash NVMe array designed for enterprise environments requiring fast, resilient block storage. It provides low latency and high reliability for virtualisation, enterprise databases, and mission-critical application workloads.
What drive types and capacities are supported on this array?
- This array supports up to 24 PCIe NVMe solid state drives, reaching a total maximum storage capacity of up to 92 TB managed via dual RAID controllers.
Does the HPE Alletra 6010 come with a warranty?
- Yes, this product includes a 1-year parts warranty and is backed locally in South Africa via Server Hub.
