HPE Alletra 5030 126TB DC Array Bdl
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

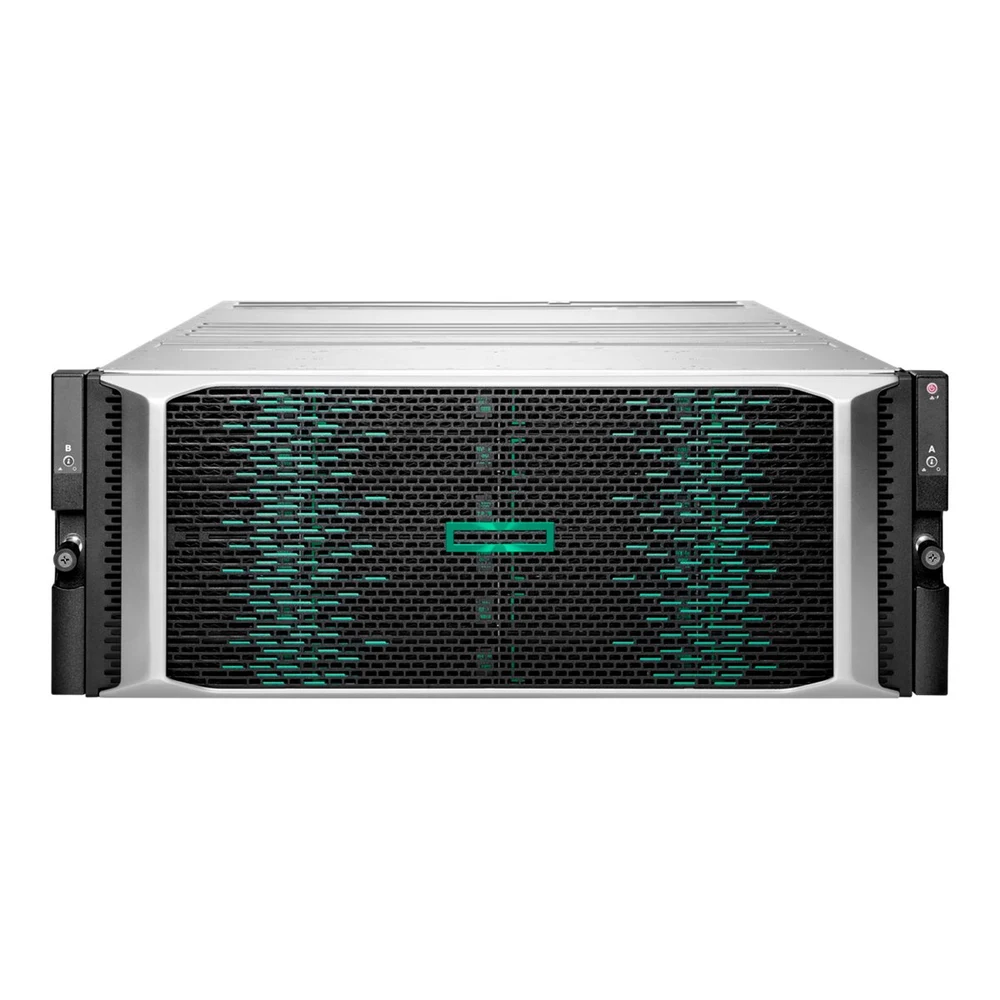

HPE Alletra 5030 126TB DC Array Bdl.
Device Type: Hard drive array. Enclosure Type: Rack-mountable - 4U. Supported Devices / Modules Qty: 24. Supported Drives: SAS-3. Total Array Capacity: 126 TB. HDD Array External Interface: SAS 12Gb/s. Storage Controller — Type: RAID. Storage Controller — Installed Qty: 2.
Specifications
- Capacity
- 21 x 6 TB
Highlights
- 126 TB total storage capacity configured with 21 x 6 TB SAS drives
- 4U rack-mountable chassis supporting up to 24 SAS-3 drive modules
- Dual RAID storage controllers for hardware redundancy
- High-speed 12Gb/s SAS external interface and 4 x 1Gb/10Gb iSCSI ports
- Dual hot-plug internal power supplies
Storage
- Total Array Capacity
- 126 TB
- HDD Array External Interface
- SAS 12Gb/s
Power
- Power Device
- 2 x internal power supply - hot-plug
- Max Supported Qty
- 2
Chassis
- Supported Devices / Modules Qty
- 24
- Supported Drives
- SAS-3
General
- Device Type
- Hard drive array
- Enclosure Type
- Rack-mountable - 4U
Dimensions & Weight
- Width
- 43.9 cm
- Depth
- 89 cm
- Height
- 17.58 cm
- Weight
- 65 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 4 x Ethernet 1Gb / 10Gb (iSCSI) ((iSCSI) / management)
Hard Drive
- Type
- HDD
- Capacity
- 21 x 6 TB
- Interface Type
- SAS 12Gb/s
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 1 year
- Service & Support
- New releases update - software - 90 days
Miscellaneous
- Compliant Standards
- FCC Class A certified, UL, cUL, NOM, CCC, IC Class A, WEEE, FCC Part 15 B Class A, BSMI Class A, KC, VCCI V-3 Class A ITE, NOM-019-SCFI-1998, VCCI Class A, EAC, CITC, EN 50581:2012, RCM, RoHS 2011/65/EU, BIS, CoC, EN 55024:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, EN 55032:2012, ICES-003 issue 6 Class A, LoA, CISPR 32:2012, sDoC, TP TC 004/2011, TP TC 020/2011, CISPR 24:2010+A1:2015, NBTC, TCVN 7189: 2009, UL/IEC 60960-1 Second Edition Am1 + Am2, NBTC TS 4001-2550, IS 1325
Storage Controller
- Type
- RAID
- Installed Qty
- 2
- Interface Type
- SAS 12Gb/s
Storage Controller (2nd)
- Installed Qty
- 2
System Requirements
- OS Required
- IBM AIX, HP-UX, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, Oracle Solaris, Oracle Linux, SUSE Linux Enterprise, Microsoft Windows Hyper-V Server, Citrix, VMware vSphere
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Alletra 5030 126TB DC Array Bundle is an enterprise 4U rack-mountable storage array designed for demanding data centre workloads and virtualisation. Equipped with dual RAID controllers, 21 x 6TB SAS-3 drives, and 10Gb iSCSI connectivity, it provides high-capacity, resilient block storage for IT environments running VMware, Windows Server, or Linux platforms.
Frequently asked questions
What is the HPE Alletra 5030 126TB DC Array used for?
- It is an enterprise hard drive array used to provide high-capacity block storage for virtualised infrastructures, backups, and critical business applications. It supports operating environments including VMware vSphere, Microsoft Windows Server, and Red Hat Enterprise Linux.
What connectivity and drive interfaces are supported?
- The array utilises a 12Gb/s SAS-3 drive interface and includes four 1Gb/10Gb Ethernet ports for iSCSI data transmission and dedicated management. It is configured with dual RAID controllers to maintain continuous data access.
Does the HPE Alletra 5030 include a warranty in South Africa?
- Yes, it includes a 1-year limited parts warranty with local South African warranty service and support fulfilled via Server Hub. All orders are invoiced in South African Rand.
