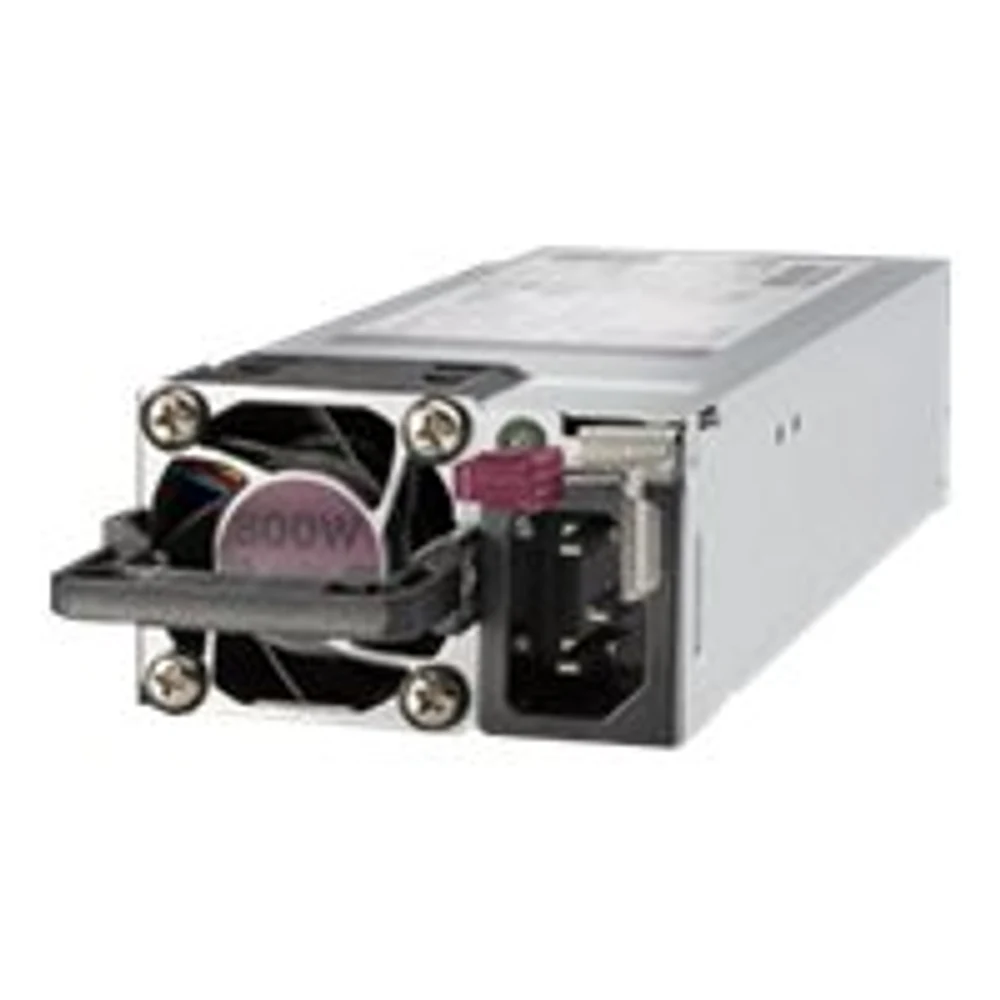

HPE 800W FS Ti Ht Plg LH Pwr Sply Kit
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 800W FS Ti Ht Plg LH Pwr Sply Kit.
Device Type: Power supply - hot-plug / redundant - plug-in module. Specification Compliance: Flex Slot. Input Voltage: AC 200-240 V. Frequency Required: 50 - 60 Hz. Input Connectors: Power IEC 60320 C14. Power Capacity: 800 Watt / 860 VA. Efficiency: 96%. 80 PLUS Certification: 80 PLUS Titanium.
Specifications
Highlights
- 800W / 860 VA power capacity with 96% energy efficiency
- 80 PLUS Titanium certified for reduced power waste
- Hot-plug redundant plug-in module form factor
- Flex Slot specification compliance with IEC 60320 C14 connector
- AC 200-240 V input voltage at 50 to 60 Hz frequency
- Broad compatibility with HPE ProLiant Gen10 and Apollo servers
General
- Device Type
- Power supply - hot-plug / redundant - plug-in module
- Specification Compliance
- Flex Slot
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node (800 Watt), 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo (800 Watt), 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform (800 Watt), 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform (800 Watt)
- Designed For
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (800 Watt), Medium Solution with HPE ProLiant DL325 Gen10 Plus (800 Watt), Medium Solution with HPE ProLiant DL360 Gen10 (800 Watt), Small Solution with HPE ProLiant DL360 Gen10 (800 Watt)
- Designed For
- HPE ProLiant DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (800 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage (800 Watt), DL325 Gen10 Plus for Weka BAse Tracking (800 Watt), DL325 Gen10 Plus for Weka Expansion Tracking (800 Watt), DL325 Gen10 Plus V2 (800 Watt), DL325 Gen10 Plus V2 Base (800 Watt), DL325 Gen10 Plus V2 for Weka Base Tracking (800 Watt), DL325 Gen10 Plus V2 Performance (800 Watt), DL345 Gen10 Plus (800 Watt), DL345 Gen10 Plus Base (800 Watt), DL345 Gen
- Designed For
- HPE SimpliVity 325 Gen10 Plus V2 Node (800 Watt), 380 Gen10 Network Choice G Node (800 Watt)
Dimensions & Weight
- Width
- 6.8 cm
- Depth
- 22.53 cm
- Height
- 4.04 cm
- Weight
- 910 g
Dimensions & Weight (Shipping)
- Shipping Width
- 19.05 cm
- Shipping Depth
- 37.47 cm
- Shipping Height
- 14.61 cm
- Shipping Weight
- 1.59 kg
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Miscellaneous
- Compliant Standards
- UL, TUV, C-Tick, BSMI, cUL, CCC, KCC, WEEE, low halogen, CISPR Class A
Power Device
- Input Voltage
- AC 200-240 V
- Frequency Required
- 50 - 60 Hz
- Input Connectors
- Power IEC 60320 C14
- Power Capacity
- 800 Watt / 860 VA
- Efficiency
- 96%
- 80 PLUS Certification
- 80 PLUS Titanium
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE 800W Flex Slot Titanium Hot Plug Power Supply Kit is an 80 PLUS Titanium certified server power module delivering up to 96 percent electrical efficiency. Designed for enterprise data centres and compatible HPE ProLiant, Apollo, and SimpliVity Gen10 systems, it provides hot-swappable, redundant power to minimise downtime and lower energy consumption.
Frequently asked questions
What is the HPE 800W Flex Slot Titanium Power Supply used for?
- It provides reliable, high-efficiency electrical power to compatible HPE enterprise servers and storage platforms. Its hot-plug capability allows IT administrators to replace or add a redundant unit without shutting down server operations.
Which servers are compatible with this power supply kit?
- This Flex Slot power supply is designed for select HPE ProLiant Gen10 and Gen10 Plus models, Apollo 4200 Gen10 systems, Nimble Storage dHCI solutions, and HPE SimpliVity nodes. Always verify server chassis compatibility before purchasing.
Does this power supply come with a warranty in South Africa?
- Yes, this HPE power supply kit includes a local South African warranty when purchased through Server Hub. Support and warranty requests are managed locally for prompt service.
