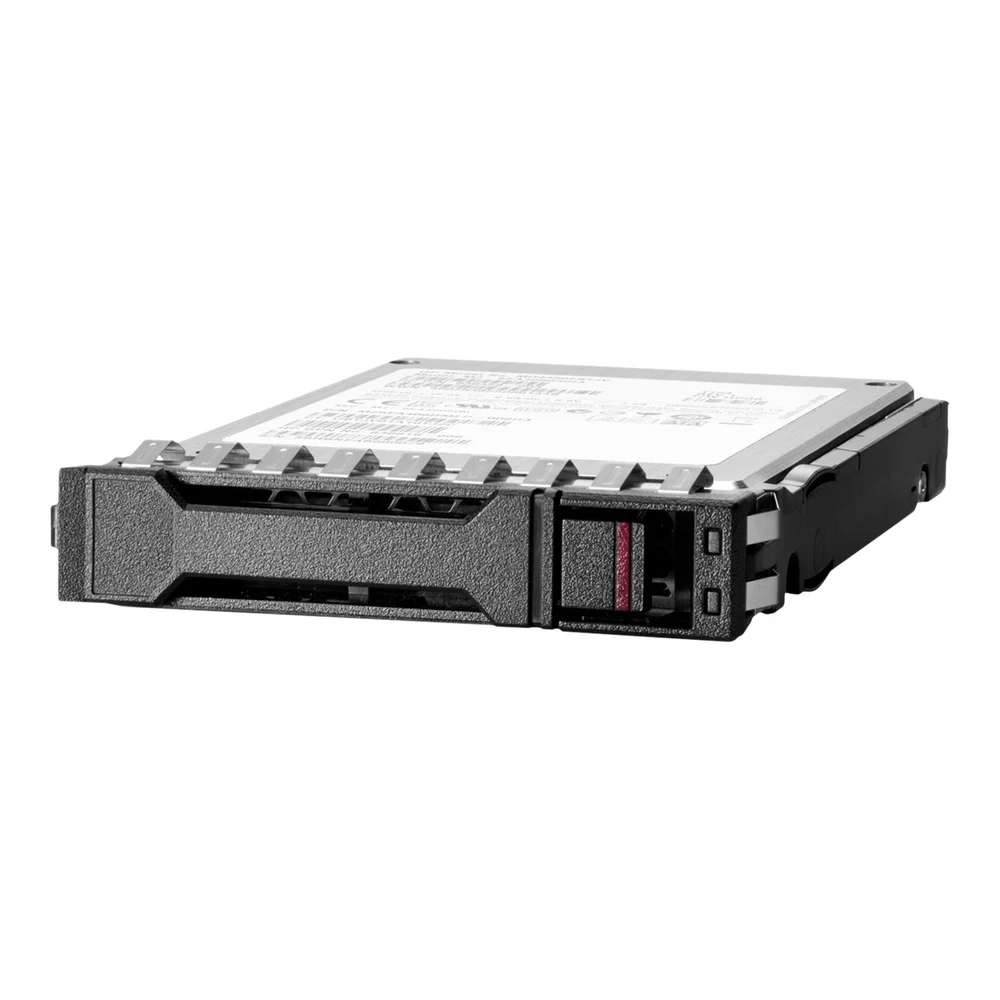

HPE 7.68TB NVMe RI BC U.3 PM1733a SSD
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 7.68TB NVMe RI BC U.3 PM1733a SSD.
Device Type: Solid state drive - hot-swap. Capacity: 7.68 TB. NAND Flash Memory Type: Triple-level cell (TLC). Form Factor: 2.5" SFF. Interface: U.3 PCIe 4.0 (NVMe). Features: Dual Port, Digitally Signed Firmware, High Performance. Height: 15 mm. Bundled with: HPE Basic Carrier.
Specifications
- Capacity
- 7.68 TB
Highlights
- 7.68 TB capacity with TLC NAND flash memory
- High-speed U.3 PCIe 4.0 NVMe dual-port interface
- Read-intensive performance up to 7100 MBps read and 4200 MBps write
- Hot-swap 2.5-inch SFF form factor with HPE Basic Carrier
- Digitally signed firmware with 1 DWPD endurance rating
- Designed for HPE ProLiant Gen10 Plus server series
Power
- Power Consumption
- 4.3 Watt (idle)
- Power Consumption
- 17.8 Watt (random read)
- Power Consumption
- 16.2 Watt (random write)
- Power Consumption
- 14.5 Watt (sequential read)
- Power Consumption
- 19 Watt (sequential write)
- Power Consumption
- 16.6 Watt (random read/write)
- Power Consumption
- 19 Watt (maximum)
General
- Device Type
- Solid state drive - hot-swap
- Capacity
- 7.68 TB
- NAND Flash Memory Type
- Triple-level cell (TLC)
- Form Factor
- 2.5" SFF
- Interface
- U.3 PCIe 4.0 (NVMe)
- Features
- Dual Port, Digitally Signed Firmware, High Performance
- Height
- 15 mm
- Bundled with
- HPE Basic Carrier
Compatibility Information
- Designed For
- HPE ProLiant DL345 Gen10 Plus (2.5"), DL360 Gen10 Plus (2.5"), DL365 Gen10 Plus (2.5"), DL380 Gen10 Plus (2.5"), DL385 Gen10 Plus (2.5")
Expansion & Connectivity
- Interfaces
- 1 x U.3 PCIe 4.0 (NVMe)
- Compatible Bay
- 2.5" SFF
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Performance
- Drive Writes Per Day (DWPD)
- 1
- SSD Endurance
- 14016 TB
- Drive Class
- Read Intensive
- Internal Data Rate
- 7100 MBps (read) / 4200 MBps (write)
- 4KB Random Read
- 200000 IOPS
- 4KB Random Write
- 175000 IOPS
- Maximum 4KB Random Write
- 180000 IOPS
- Maximum 4KB Random Read
- 1350000 IOPS
Software & System Requirements
- OS Required
- Microsoft Windows Server 2016
Related Products
Seagate IronWolf 12TB NAS Hard Drive
Seagate Barracuda 1TB 2.5-inch SATA Hard Drive
Manhattan Drive Enclosure - Hi-Speed USB 2.0, SATA, 2.5", Blue
Synology Enterprise 480GB 2.5-inch SATA SSD with 5-Year Warranty
The HPE 7.68TB NVMe RI BC U.3 PM1733a SSD is an enterprise-grade 2.5-inch solid state drive engineered for read-intensive server workloads. Mounted in an HPE Basic Carrier, it delivers high-throughput PCIe 4.0 performance and dual-port connectivity, making it ideal for enterprise IT departments upgrading compatible HPE ProLiant Gen10 Plus servers.
Frequently asked questions
What workloads is the HPE 7.68TB PM1733a SSD designed for?
- This solid state drive is built for read-intensive applications requiring fast data retrieval and high throughput. With an endurance rating of 1 DWPD (Drive Writes Per Day), it is well suited for web servers, read-heavy databases, and virtualisation environments.
Which servers are compatible with this drive?
- The drive is designed for HPE ProLiant Gen10 Plus servers with 2.5-inch SFF drive bays, including the DL345, DL360, DL365, DL380, and DL385 models. It connects via a U.3 PCIe 4.0 NVMe interface and comes pre-fitted in an HPE Basic Carrier.
Does this SSD come with a warranty?
- Yes, this drive includes a 3-year limited warranty supported locally in South Africa through Server Hub. All orders are priced in South African rand with nationwide delivery.
