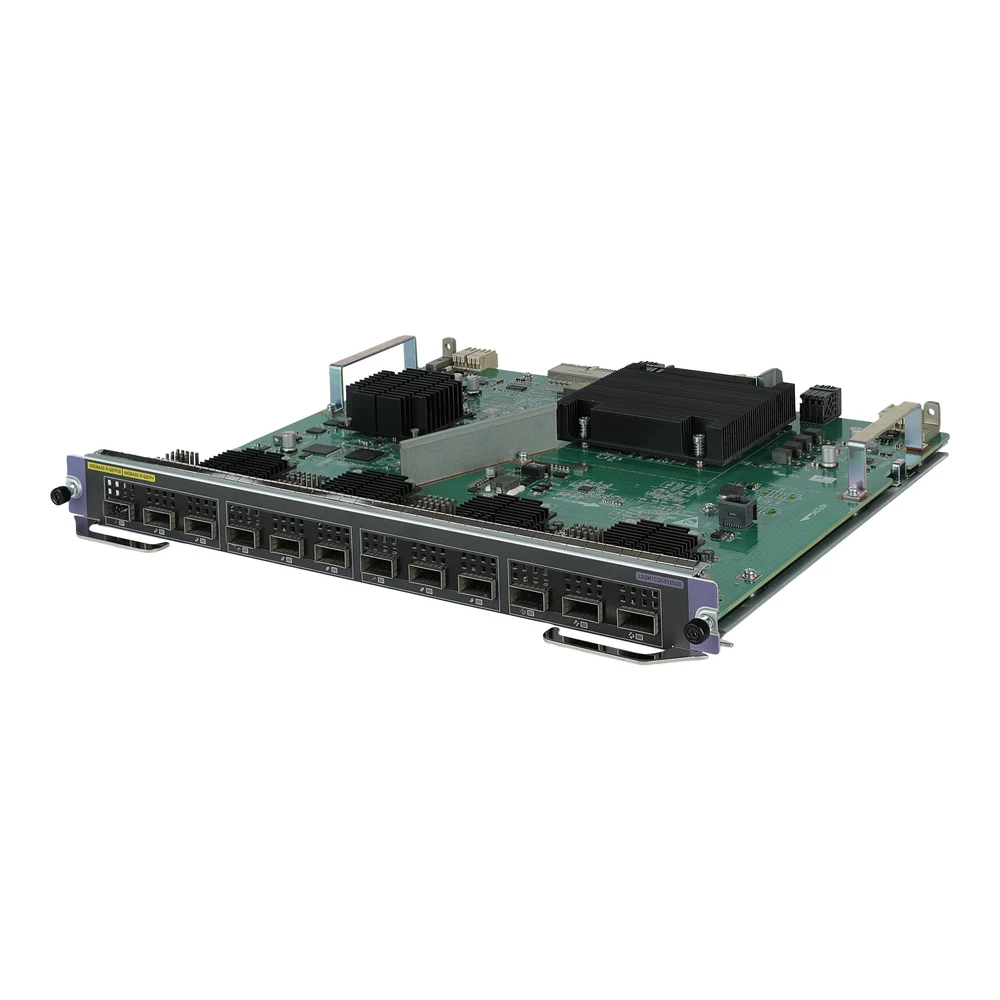

HPE 7500X 12x40G/4x100G QSFP28 SG Mod
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 7500X 12x40G/4x100G QSFP28 SG Mod.
Device Type: Switch - 12 ports - L3 - Managed - stackable. Enclosure Type: Plug-in module. Subtype: 100 Gigabit Ethernet. Ports: 12 x 40 Gigabit Ethernet + 4 x 100 Gigabit QSFP28. Performance: Switching capacity (per slot): 480 Gbps. Max Units In A Stack: 4. Routing Protocol: OSPF, IS-IS, BGP, OSPFv3, MPLS. Remote Management Protocol: Telnet.
Specifications
Highlights
- 12 x 40 Gigabit Ethernet and 4 x 100 Gigabit QSFP28 ports
- 480 Gbps per-slot switching capacity
- Layer 3 routing supporting OSPF, IS-IS, BGP, OSPFv3, and MPLS
- Stackable architecture supporting up to 4 units
- 4 GB RAM and 4 GB flash memory
- Supports In-Service Software Upgrade (ISSU) and SDN
Power
- Power Device
- Internal power supply (not installed)
- Power Redundancy
- Yes
- Voltage Required
- AC 100-240 V
General
- Device Type
- Switch - 12 ports - L3 - Managed - stackable
- Enclosure Type
- Plug-in module
- Subtype
- 100 Gigabit Ethernet
- Ports
- 12 x 40 Gigabit Ethernet + 4 x 100 Gigabit QSFP28
- Performance
- Switching capacity (per slot): 480 Gbps
- Max Units In A Stack
- 4
- Routing Protocol
- OSPF, IS-IS, BGP, OSPFv3, MPLS
- Remote Management Protocol
- Telnet
- Features
- IPv6 support, Zero Configuration Technology, Quality of Service (QoS), Rapid Ring Protection Protocol (RRPP) support, Endpoint Admission Defense (EAD), LACP support, Management Information Base (MIB), SNMP support, In-Service Software Upgrade (ISSU), Virtual Private LAN Service (VPLS), Software Defined Networking (SDN), Support Operations, Administration, and Maintenance (OAM) mechanism, Graceful Insertion and Removal (GIR) mode, mDNS, Web authentication
- Compliant Standards
- IEEE 802.3, IEEE 802.1x
- RAM
- 4 GB (max)
- Flash Memory
- 4 GB (max)
Expansion / Connectivity
- Interfaces
- 12 x 40Gbit LAN
- Interfaces
- 4 x 100Gbit LAN QSFP28
- Interfaces
- 1 x USB
- Interfaces
- 1 x LAN management
- Interfaces
- 1 x serial (RS-232C)
- Interfaces
- 1 x serial (RS-232C) management
- Interfaces
- 1 x modem
- Expansion Slots
- 10 (total) / 6 (free) x Expansion Slot
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Software / System Requirements
- Software Included
- HPE Intelligent Management Center
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE 7500X 12x40G/4x100G QSFP28 SG Mod is a high-density Layer 3 managed plug-in switch module engineered for enterprise core and aggregation switching. Featuring 12 40GbE and 4 100GbE QSFP28 ports with 480 Gbps per-slot switching capacity, it provides high-throughput modular connectivity for data centres and scalable campus networks requiring advanced Layer 3 routing and MPLS capabilities.
Frequently asked questions
What is the HPE 7500X QSFP28 module used for?
- The HPE 7500X 12x40G/4x100G QSFP28 module expands the high-speed interface capacity of compatible HPE 7500X modular chassis switches. It provides 40GbE and 100GbE high-bandwidth uplinks and aggregation links across enterprise and data centre networks.
Which routing protocols does this module support?
- This Layer 3 managed module supports enterprise routing protocols including OSPF, OSPFv3, IS-IS, BGP, and MPLS. It also incorporates advanced networking features such as Virtual Private LAN Service (VPLS) and IPv6 support.
Does this module come with a warranty?
- Yes, purchases through Server Hub include local South African warranty support. Orders are fulfilled locally and priced in South African Rand (ZAR).
