HPE 5710 24SFP+ 6QS+/2QS28 Switch
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 5710 24SFP+ 6QS+/2QS28 Switch.
Device Type: Switch - 24 ports - L3 - Managed - stackable. Enclosure Type: Rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 24 x 1 Gigabit / 10 Gigabit SFP+. Performance: Throughput: 714 Mpps; Routing/switching capacity: 960 Gbps; Latency (10 Gbps): 1.5 µs. Capacity: IPv4 routing table entries: 16000; IPv6 routing table entries: 8000; Virtual interfaces (VLANs): 4094; ARP entries: 68000; Static ARP entries: 1000. MAC Address Table Size: 208000 entries. Jumbo Frame Support: Yes.
Specifications
- RAM
- 4 GB SDRAM
Highlights
- 24 x 1GbE / 10GbE SFP+ ports
- 960 Gbps switching capacity and 714 Mpps throughput
- Compact 1U rack-mountable stackable design
- Layer 3 routing support including OSPF, BGP, and MPLS
- Hot-plug power support with optional 1+1 redundancy
- 208,000 MAC address table entries and 4,094 VLANs

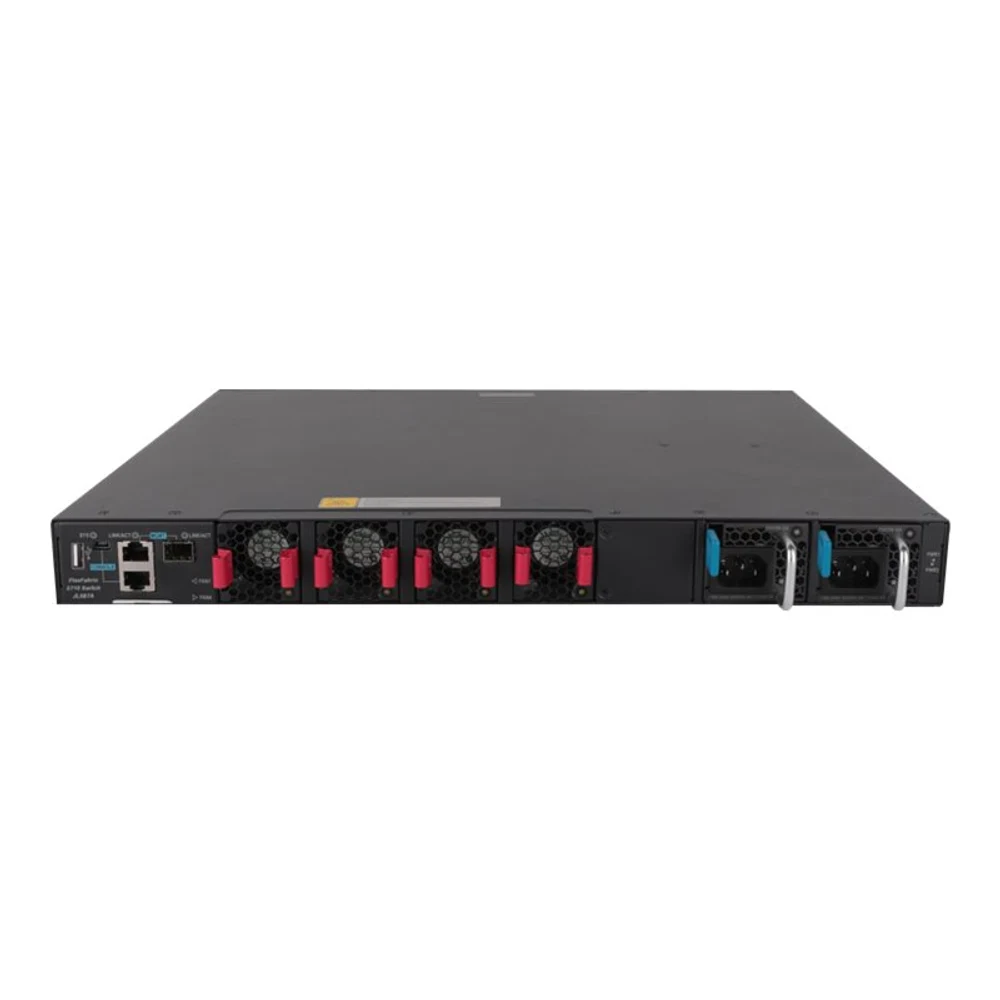

Power
- Power Device
- Internal power supply (not installed) - hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Throughput: 714 Mpps
- Performance
- Routing/switching capacity: 960 Gbps
- Performance
- Latency (10 Gbps): 1.5 µs
- Capacity
- IPv4 routing table entries: 16000
- Capacity
- IPv6 routing table entries: 8000
- Capacity
- Virtual interfaces (VLANs): 4094
- Capacity
- ARP entries: 68000
- Capacity
- Static ARP entries: 1000
- MAC Address Table Size
- 208000 entries
- Jumbo Frame Support
- Yes
- Routing Protocol
- OSPF, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MPLS, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, SNTP support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Data Center Bridging Exchange (DCBX) support, priority-based flow co
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.3ag
- RAM
- 4 GB SDRAM
- Flash Memory
- 1 GB
Dimensions & Weight
- Width
- 44 cm
- Depth
- 40 cm
- Height
- 4.4 cm
- Weight
- 8.55 kg
Dimensions & Weight (Shipping)
- Shipping Weight
- 8.61 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 1 x 10/100/1000 Base-T management
- Interfaces
- 1 x SFP management
- Interfaces
- 1 x console (mini-USB)
- Interfaces
- 1 x serial (console) RJ-45
Miscellaneous
- MTBF
- 145.41 hours
- Compliant Standards
- CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, VCCI Class A, CNS 13438, FCC CFR47 Part 15 A, KN32, KN35, AS/NZS CISPR 32 Class A, CNS 14336-1, TCVN 7189, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 386
Software / System Requirements
- OS Required
- Comware v7
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

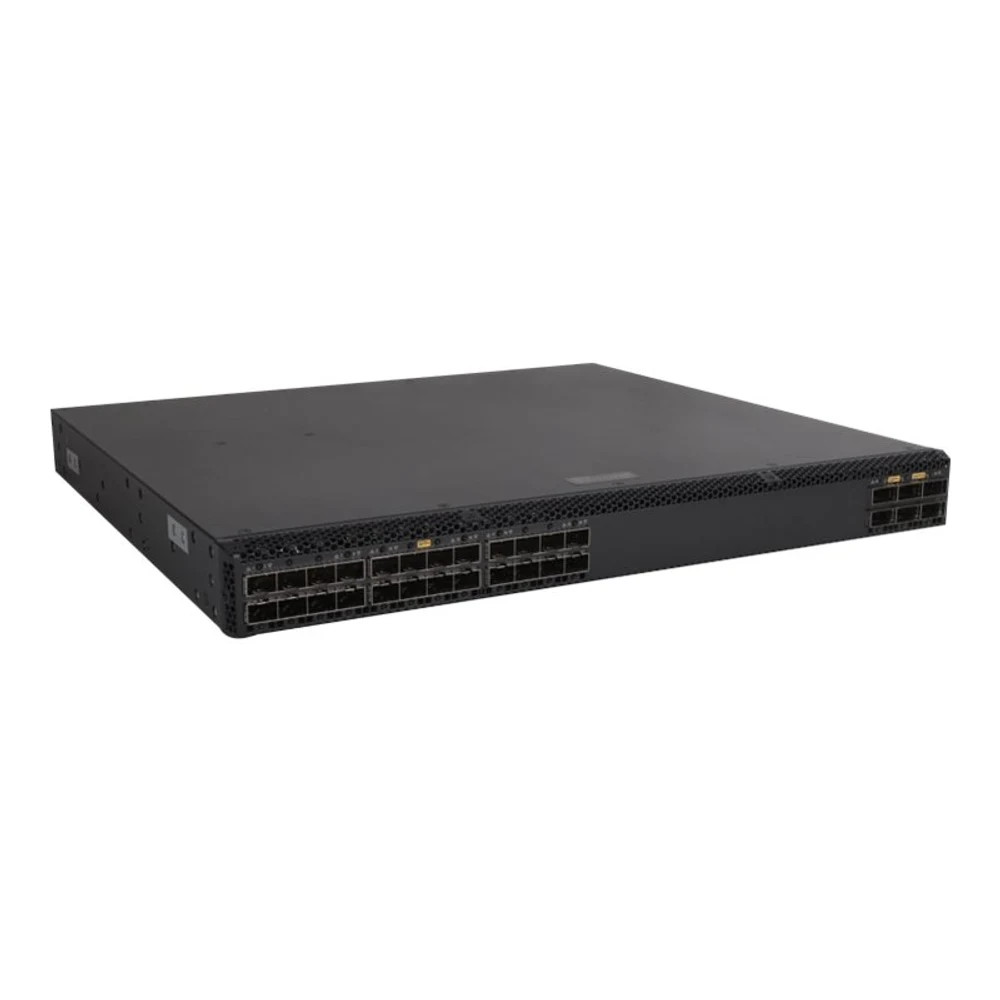

The HPE 5710 24SFP+ is a 1U rack-mountable Layer 3 managed stackable switch designed for high-performance enterprise and data centre networking. Featuring 24 1GbE/10GbE SFP+ ports, a switching capacity of 960 Gbps, and ultra-low 1.5 µs latency, it delivers responsive connectivity for network administrators requiring robust Layer 3 routing and high-throughput aggregation.
Frequently asked questions
What is the HPE 5710 24SFP+ switch used for?
- The HPE 5710 24SFP+ is an enterprise-grade Layer 3 managed switch engineered for high-density 10 Gigabit aggregation and top-of-rack deployments. With 24 SFP+ ports and a 960 Gbps switching capacity, it efficiently manages high-volume network traffic with low 1.5 µs latency across corporate networks and data centres.
Does the HPE 5710 switch support redundant power?
- Yes, the switch supports up to two hot-plug internal power supply units to enable an optional 1+1 power redundancy scheme. This architecture allows continuous network uptime and maintenance without taking the unit offline.
Does this switch come with a South African warranty?
- Yes, this HPE switch comes with a local South African warranty provided via Server Hub. Your order is billed directly in rand with local support available for seamless enterprise purchasing.
