SPT-FC85E4BC273FBE

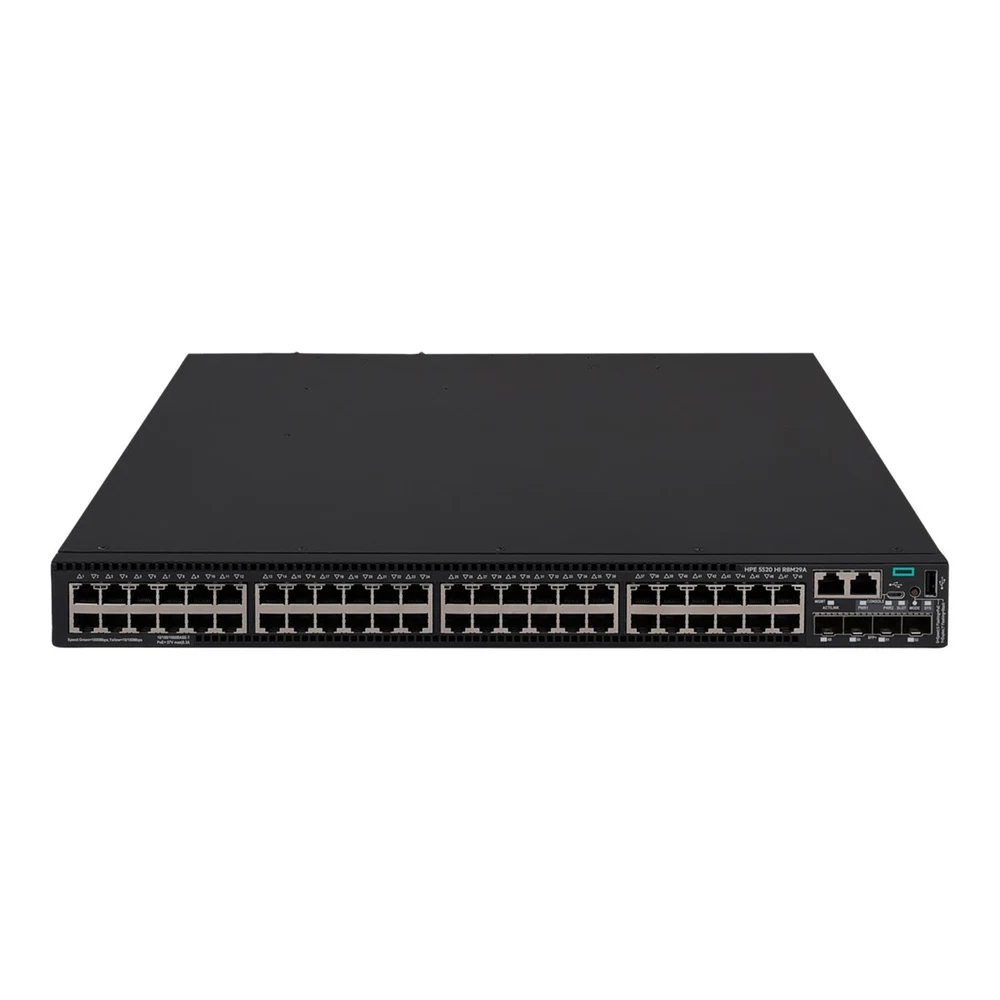

HPE 5520 48G PoE+ 4SFP+ HI Swch
R 238 970
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE 5520 48G PoE+ 4SFP+ HI Swch.
Device Type: Switch - 48 ports - L3 - Managed - stackable. Enclosure Type: Side to back airflow rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+. Power Over Ethernet (PoE): PoE+. PoE Budget: 1440 W. Performance: Latency (1000 Mbps): 5 µs; Latency (10 Gbps): 3 µs; Throughput: 180 Mbps; Routing/switching capacity: 288 Gbps. Capacity: IPv4 routing table entries: 32768; IPv6 routing table entries: 16384.
Specifications
- RAM
- 2 GB SDRAM
Highlights
- 48 Gigabit RJ-45 PoE+ ports with 1440W PoE budget
- 4 dedicated 1GbE/10GbE SFP+ uplink interfaces
- Layer 3 routing with 288 Gbps switching capacity
- Stackable architecture supporting up to 9 units
- 1U side-to-back airflow rack-mountable enclosure
Power
- Power Device
- Internal power supply (not installed) - hot-plug
- Max Supported Qty
- 2
- Power Provided
- 3 A
- Voltage Required
- AC 100-240 V (50/60 Hz)
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Side to back airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 1440 W
- Performance
- Latency (1000 Mbps): 5 µs
- Performance
- Latency (10 Gbps): 3 µs
- Performance
- Throughput: 180 Mbps
- Performance
- Routing/switching capacity: 288 Gbps
- Capacity
- IPv4 routing table entries: 32768
- Capacity
- IPv6 routing table entries: 16384
- MAC Address Table Size
- 64K entries
- Jumbo Frame Support
- 10000 bytes
- Max Units In A Stack
- 9
- Routing Protocol
- OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
- Encryption Algorithm
- SSL
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
- Features
- Flow control, Layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, full duplex mode, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) su
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- RAM
- 2 GB SDRAM
- Flash Memory
- 512 MB
- Status Indicators
- Power, system, operation mode
Dimensions & Weight
- Width
- 44 cm
- Depth
- 46 cm
- Height
- 4.37 cm
- Weight
- 9.6 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 PoE+
- Interfaces
- 4 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 1 x serial (console)
- Interfaces
- 1 x management RJ-45
- Interfaces
- 1 x USB 2.0
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Installed Modules Qty (Max)
- 0 (installed) / 1 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- EN55024, AS/NZS 60950-1, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 61000-4-29, ANSI C63.4-2009, EN 60825-2, IPv6 Ready, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EAC, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, EMC 2004/108/EC, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010, CISPR 22:2008, EN 300 386, FDA 21 CFR, VCCI V-3/2012.04, EN 61000-4-3:2006, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-4:2012
- Pricing Type
- CTO
