SPT-CD450BED4364F5
HPE 5520 24G 4SFP+ HI Swch
R 140 930
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

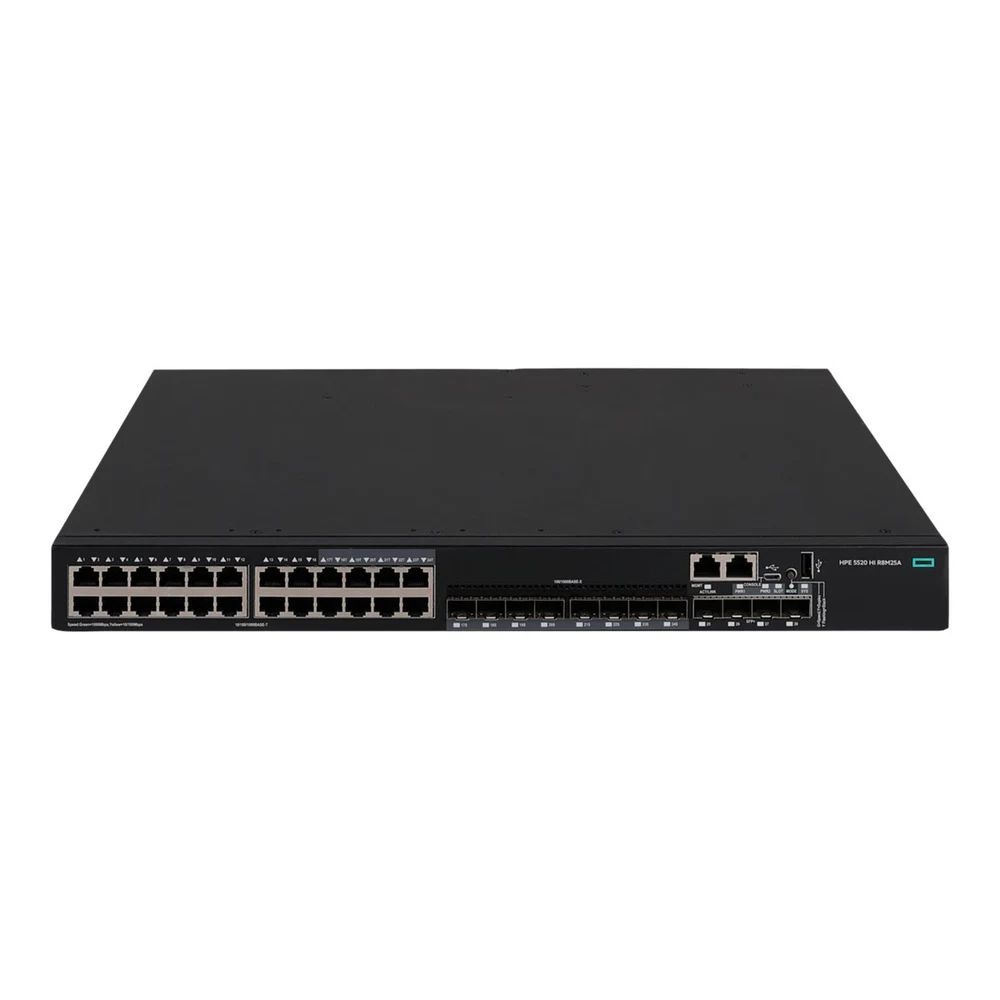

HPE 5520 24G 4SFP+ HI Swch.
Device Type: Switch - 24 ports - L3 - Managed - stackable. Enclosure Type: Side to back airflow rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+. Performance: Latency (1000 Mbps): 5 µs; Latency (10 Gbps): 3 µs; Throughput: 180 Mbps; Routing/switching capacity: 288 Gbps. Capacity: IPv4 routing table entries: 32768; IPv6 routing table entries: 16384. MAC Address Table Size: 64K entries. Jumbo Frame Support: 10000 bytes.
Specifications
- RAM
- 2 GB SDRAM
Highlights
- 24 x 10/100/1000Base-T RJ-45 Gigabit ports
- 4 x 1G/10G SFP+ high-speed uplink ports
- 288 Gbps switching capacity with 180 Mbps throughput
- Advanced Layer 3 routing support including OSPF, BGP, and MPLS
- Stackable design supporting up to 9 switches
- 1U rack-mountable form factor with side-to-back airflow
Power
- Power Device
- Internal power supply (not installed) - hot-plug
- Max Supported Qty
- 2
- Power Provided
- 2 A
- Voltage Required
- AC 100-240 V (50/60 Hz)
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Side to back airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Latency (1000 Mbps): 5 µs
- Performance
- Latency (10 Gbps): 3 µs
- Performance
- Throughput: 180 Mbps
- Performance
- Routing/switching capacity: 288 Gbps
- Capacity
- IPv4 routing table entries: 32768
- Capacity
- IPv6 routing table entries: 16384
- MAC Address Table Size
- 64K entries
- Jumbo Frame Support
- 10000 bytes
- Max Units In A Stack
- 9
- Routing Protocol
- OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD), CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
- Encryption Algorithm
- SSL
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
- Features
- Flow control, Layer 3 switching, DHCP support, BOOTP support, ARP support, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, full duplex mode, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) su
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- RAM
- 2 GB SDRAM
- Flash Memory
- 512 MB
- Status Indicators
- Power, system, operation mode
Dimensions & Weight
- Width
- 44 cm
- Depth
- 36 cm
- Height
- 4.36 cm
- Weight
- 6.7 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
- Interfaces
- 4 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 1 x serial (console)
- Interfaces
- 1 x management RJ-45
- Interfaces
- 1 x USB 2.0
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Installed Modules Qty (Max)
- 0 (installed) / 1 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- EN55024, AS/NZS 60950-1, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 61000-4-29, ANSI C63.4-2009, EN 60825-2, IPv6 Ready, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, EAC, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, EMC 2004/108/EC, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010, CISPR 22:2008, EN 300 386, FDA 21 CFR, VCCI V-3/2012.04, EN 61000-4-3:2006, CAN/CSA-C22.2 No. 60950-1, EN 61000-4-4:2012
- Pricing Type
- CTO
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE 5520 24G 4SFP+ HI is a 1U rack-mountable Layer 3 managed Gigabit switch designed for enterprise campus and data centre networks. It features 24 Gigabit Ethernet ports, four 10GbE SFP+ uplinks, 288 Gbps switching capacity, and support for up to nine stackable units, providing high-resilience routing and switching for demanding business environments.
Frequently asked questions
What is the HPE 5520 24G 4SFP+ HI Switch used for?
- This switch is designed for enterprise access, campus, and aggregation layers requiring dependable Layer 3 routing. It provides 24 Gigabit ports for connected devices and 4 high-speed 10GbE SFP+ uplink ports for backbone network connectivity.
Can the HPE 5520 24G switch be stacked?
- Yes, this model supports stacking for up to 9 units. Stacking allows network administrators to manage multiple physical switches as a single logical device, simplifying administration and improving redundancy.
Does this switch come with a warranty in South Africa?
- Yes, it is covered by a local South African warranty provided via Server Hub, alongside the manufacturer's limited lifetime warranty support.
