SPT-10ACEA2FDF6684
HPE 5140 8G 2SFP 2GT EI Sw
R 28 160
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

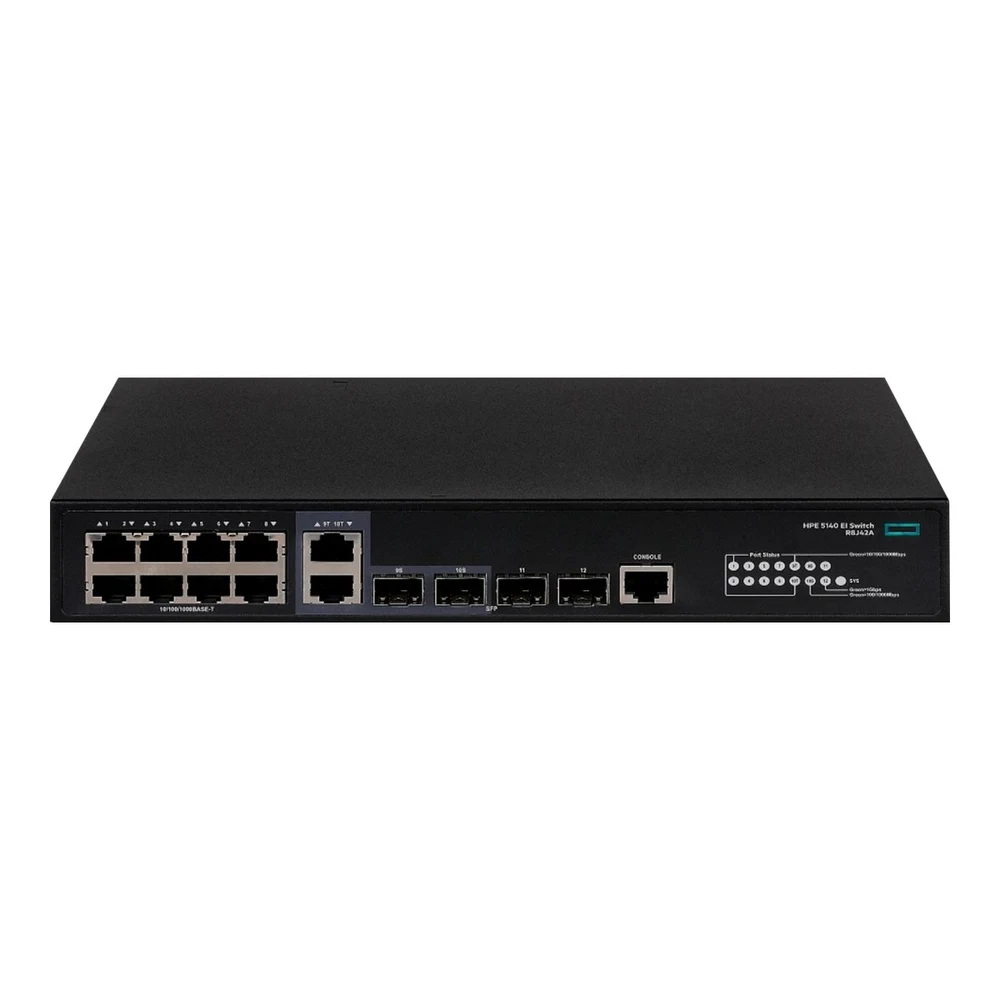

HPE 5140 8G 2SFP 2GT EI Sw.
Device Type: Switch - 12 ports - L3 - smart. Enclosure Type: Rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T. Performance: Latency (1000 Mbps): 5 µs; Latency (10 Gbps): 3 µs; Throughput: 18 Mpps; Routing/switching capacity: 128 Gbps. Capacity: IPv4 routing table entries: 512; IPv6 routing table entries: 256; VLAN IDs: 4094. MAC Address Table Size: 16384 entries. Jumbo Frame Support: 9216 bytes.
Specifications
- RAM
- 512 MB SDRAM
Highlights
- 8 x 10/100/1000Base-T RJ-45 Ethernet ports
- 2 x 1G/10G SFP+ uplink ports and 2 x combo 10GBase-T ports
- 128 Gbps routing and switching capacity with 18 Mpps throughput
- Layer 3 routing support including OSPF, RIP, and static IPv4/IPv6
- Compact 1U rack-mountable form factor with included rack kit
- 16384 MAC address table entries and 9216-byte jumbo frame support
Power
- Power Device
- Internal power supply
- Power Provided
- 10 A
- Voltage Required
- AC 100-240 V (50/60 Hz)
General
- Device Type
- Switch - 12 ports - L3 - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T
- Performance
- Latency (1000 Mbps): 5 µs
- Performance
- Latency (10 Gbps): 3 µs
- Performance
- Throughput: 18 Mpps
- Performance
- Routing/switching capacity: 128 Gbps
- Capacity
- IPv4 routing table entries: 512
- Capacity
- IPv6 routing table entries: 256
- Capacity
- VLAN IDs: 4094
- MAC Address Table Size
- 16384 entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS
- Encryption Algorithm
- SSL
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
- Features
- Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, High Availability, full duplex mode, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Acc
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- RAM
- 512 MB SDRAM
- Flash Memory
- 256 MB
Dimensions & Weight
- Width
- 26.6 cm
- Depth
- 16 cm
- Height
- 4.36 cm
- Weight
- 1.5 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45
- Interfaces
- 2 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 2 x Gigabit / 10Gbit LAN RJ-45
- Interfaces
- 1 x console RJ-45 management
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254
- Pricing Type
- BTO
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE 5140 8G 2SFP 2GT EI is a compact 1U rack-mountable Layer 3 smart managed switch engineered for enterprise branch offices and campus networks. Featuring eight Gigabit Ethernet ports, two 10GbE SFP+ slots, and two combo 10GBase-T ports, it delivers 128 Gbps switching capacity and dynamic routing capabilities for demanding networking environments.
Frequently asked questions
What port configurations are available on this HPE 5140 switch?
- The switch is equipped with eight Gigabit Ethernet RJ-45 ports for local network connections. It also provides two 1G/10G SFP+ fibre slots and two combo 10GBase-T RJ-45 ports for flexible high-speed uplinks.
Does the HPE 5140 8G support Layer 3 routing?
- Yes, this model includes Layer 3 smart management and routing capabilities. It supports static IPv4 and IPv6 routes as well as dynamic routing protocols such as OSPFv2, OSPFv3, RIP-1, and RIP-2.
Does this switch come with a warranty?
- Yes, hardware purchased through Server Hub is backed by standard local warranty support in South Africa. The product specification also carries HPE's limited lifetime warranty.
