SPT-D26CEC1F0CB54F
HPE 5140 24G 4SFP+ 1-slot HI Sw
R 110 230
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

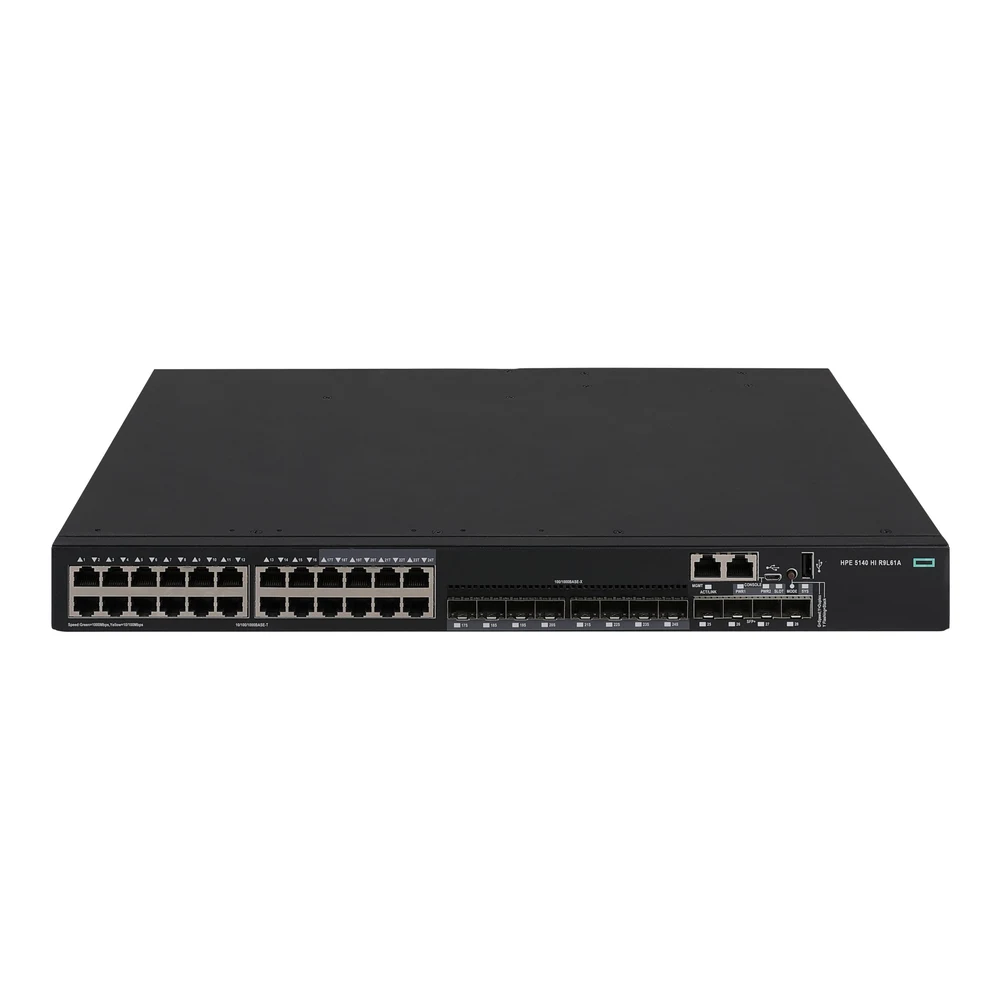

HPE 5140 24G 4SFP+ 1-slot HI Sw.
Device Type: Switch - 24 ports - L3 - Managed. Enclosure Type: Side to back airflow rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 24 x 10/100/1000 + 8 x combo Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+. Performance: Latency (1000 Mbps): 5 µs; Latency (10 Gbps): 3 µs; Throughput: 180 Mpps; Routing/switching capacity: 288 Gbps. MAC Address Table Size: 32K entries. Jumbo Frame Support: 9KB. Routing Protocol: OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, VRRPE, static IPv4 routing, static IPv6 routing, CIDR.
Specifications
- RAM
- 2 GB SDRAM
Highlights
- 24 x 10/100/1000Base-T RJ-45 and 8 x combo Gigabit SFP ports
- 4 x 10G / 1G SFP+ high-speed uplink ports
- 288 Gbps switching capacity with 180 Mpps throughput
- Layer 3 routing support including OSPF, RIP, VRRP, and static routing
- 1U rack-mountable chassis with 1 expansion slot
- Support for up to 2 internal power supplies with 2 fan trays included
Power
- Power Device
- Internal power supply (not installed)
- Max Supported Qty
- 2
- Power Consumption Stand by
- 29 Watt
General
- Device Type
- Switch - 24 ports - L3 - Managed
- Enclosure Type
- Side to back airflow rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 8 x combo Gigabit SFP + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
- Performance
- Latency (1000 Mbps): 5 µs
- Performance
- Latency (10 Gbps): 3 µs
- Performance
- Throughput: 180 Mpps
- Performance
- Routing/switching capacity: 288 Gbps
- MAC Address Table Size
- 32K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, VRRPE, static IPv4 routing, static IPv6 routing, CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SNMP 6, NTP, ICMP, RADIUS
- Encryption Algorithm
- SSL
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
- Features
- Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, MLD snooping, Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard, DHCP relay,
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r
- RAM
- 2 GB SDRAM
- Flash Memory
- 512 MB
Dimensions & Weight
- Width
- 44 cm
- Depth
- 36 cm
- Height
- 4.36 cm
- Weight
- 6.7 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45
- Interfaces
- 8 x Gigabit LAN SFP
- Interfaces
- 4 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 1 x console RJ-45 management
- Interfaces
- 1 x mini-USB management
- Interfaces
- 1 x management RJ-45
- Interfaces
- 1 x USB 2.0
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 2 fan trays
- Rack Mounting Kit
- Included
- Compliant Standards
- IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 60825-2, EAC, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-3-3:2013, ETSI EN 300 386 V1.6.1:2012, EN 61000-3-2:2014, FCC CFR47 Part 15 B Class A, FDA 21 CFR, ANSI C63.4-2014, EN 55032:2015 Class A, CISPR 32:2015 Class A, IEC 61000-4-3:2010, IEC 61000-4-5:2014, IEC 61000-4-6:2013, CAN/CSA-C22.2 No. 60950-1, VCC
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE 5140 24G 4SFP+ 1-slot HI is a 1U rack-mountable Layer 3 managed Gigabit Ethernet switch engineered for enterprise access and aggregation layers. It provides 24 Gigabit RJ-45 ports, 8 combo SFP ports, and 4 high-speed 10GbE SFP+ uplink ports, delivering a 288 Gbps routing and switching capacity for high-demand business networks.
Frequently asked questions
What is the HPE 5140 24G 4SFP+ HI switch used for?
- This Layer 3 managed switch is designed for enterprise networks requiring high-speed connectivity, reliable traffic management, and routing. With 24 Gigabit Ethernet ports and 4 dedicated 10GbE SFP+ uplinks, it connects end-user devices, access points, and servers directly into your network backbone.
Does this switch support advanced Layer 3 routing?
- Yes, the switch supports dynamic and static Layer 3 routing protocols, including OSPFv2, OSPFv3, RIP-1, RIP-2, and VRRP. These capabilities allow the device to route IPv4 and IPv6 traffic efficiently without overloading core network infrastructure.
Does the HPE 5140 switch come with a warranty?
- Yes, this unit includes limited lifetime hardware coverage backed by local South African warranty support via Server Hub. Orders are shipped securely with local technical assistance readily available.
