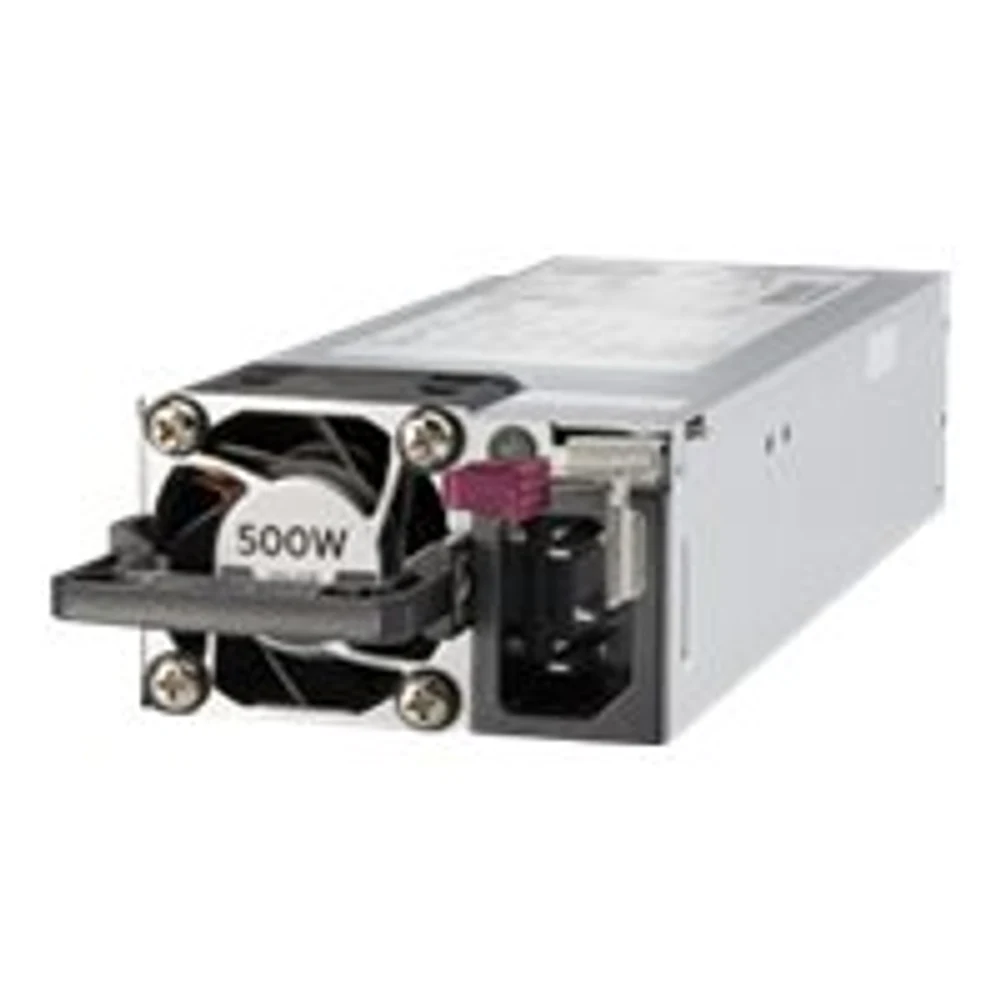

HPE 500W FS Plat Ht Plg LH Pwr Sply Kit
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 500W FS Plat Ht Plg LH Pwr Sply Kit.
Device Type: Power supply - hot-plug / redundant - plug-in module. Specification Compliance: Flex Slot. Input Voltage: AC 100-240 V. Frequency Required: 50 - 60 Hz. Input Connectors: Power IEC 60320 C14. Power Capacity: 500 Watt / 563 VA. Efficiency: 94%. 80 PLUS Certification: 80 PLUS Platinum.
Specifications
Highlights
- 500 Watt / 563 VA power output
- 80 PLUS Platinum certification with 94% efficiency
- Hot-plug redundant Flex Slot form factor
- Universal input voltage of AC 100-240 V at 50-60 Hz
- Standard IEC 60320 C14 input connector
- Compatible with select HPE ProLiant Gen10 and Gen10 Plus servers
General
- Device Type
- Power supply - hot-plug / redundant - plug-in module
- Specification Compliance
- Flex Slot
Compatibility Information
- Designed For
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (500 Watt), Medium Solution with HPE ProLiant DL325 Gen10 Plus (500 Watt), Medium Solution with HPE ProLiant DL360 Gen10 (500 Watt), Small Solution with HPE ProLiant DL360 Gen10 (500 Watt)
- Designed For
- HPE ProLiant DL160 Gen10 SMB, DL20 Gen10 Plus (500 Watt), DL20 Gen10 Plus Base (500 Watt), DL20 Gen10 Plus Entry (500 Watt), DL20 Gen10 Plus High Performance (500 Watt), DL20 Gen10 Plus Performance (500 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Qumulo (500 Watt), DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage (500 Watt), DL325 Gen10 Plus for Weka BAse Tracking (500 Watt), DL325 Gen10 Plus for Weka Expansion Tracking (500 Watt), DL325 Gen10 Plus V2 (500 Watt), DL325 Gen10
- Designed For
- HPE SimpliVity 325 Gen10 Plus V2 Node (500 Watt)
Dimensions & Weight
- Width
- 6.8 cm
- Depth
- 22.53 cm
- Height
- 4.04 cm
- Weight
- 910 g
Dimensions & Weight (Shipping)
- Shipping Width
- 19.05 cm
- Shipping Depth
- 37.47 cm
- Shipping Height
- 14.61 cm
- Shipping Weight
- 1.59 kg
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Miscellaneous
- Compliant Standards
- Low halogen, UL, cUL, KCC, BSMI, CCC, TUV, C-Tick, CISPR Class A, WEEE
Power Device
- Input Voltage
- AC 100-240 V
- Frequency Required
- 50 - 60 Hz
- Input Connectors
- Power IEC 60320 C14
- Power Capacity
- 500 Watt / 563 VA
- Efficiency
- 94%
- 80 PLUS Certification
- 80 PLUS Platinum
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit is an 80 PLUS Platinum certified redundant power module delivering 94% electrical efficiency. Designed for compatible HPE ProLiant Gen10, DL-series servers, and SimpliVity systems, it provides reliable 500-watt power delivery with hot-plug capabilities for IT administrators seeking continuous uptime in enterprise server environments.
Frequently asked questions
What is the HPE 500W Flex Slot Power Supply used for?
- It provides redundant, hot-swappable AC power for compatible HPE ProLiant Gen10 and Gen10 Plus rack servers. The module ensures continuous system uptime and delivers high electrical efficiency to reduce operational energy loss.
Which server models are compatible with this power supply?
- This 500W Flex Slot module is engineered for select HPE platforms including ProLiant DL20 Gen10 Plus, DL160 Gen10, DL325 Gen10 Plus, DL360 Gen10, and DL380 Gen10 servers, as well as HPE SimpliVity 325 Gen10 Plus nodes.
Does this HPE power supply kit include a warranty?
- Yes, purchases made through Server Hub include a local South African warranty to ensure dependable hardware support and reliable enterprise operation.
