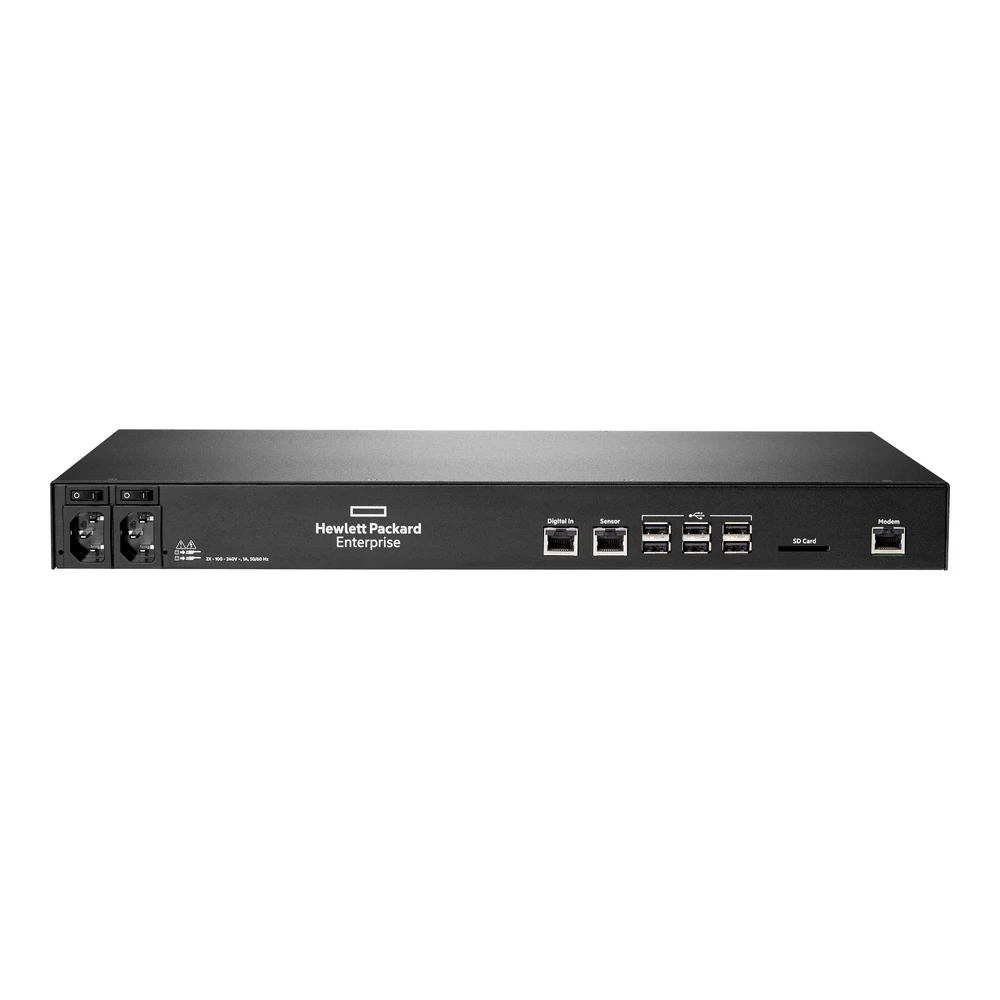

HPE 48-port WW Serial Console Server
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 48-port WW Serial Console Server.
Device Type: Terminal server. Height (Rack Units): 1U. Width: 43.82 cm. Depth: 24.13 cm. Height: 4.45 cm. Weight: 3.4 kg. Form Factor: External. Ports Qty: 48.
Specifications
Highlights
- 48 RJ-45 serial console ports for out-of-band access
- Compact 1U rack-mountable external form factor
- Secure remote management via SSH, Telnet, CLI, and SNMP
- Enterprise authentication integration with RADIUS and LDAP
- Dedicated 100Base-TX and DB-9 management interfaces
- Integrated internal power supply
Networking
- Form Factor
- External
- Ports Qty
- 48
- Connectivity Technology
- Wired
- Data Link Protocol
- Serial
- Network / Transport Protocol
- TCP/IP
- Remote Management Protocol
- SNMP, Telnet, SSH, CLI
- Authentication Method
- RADIUS, LDAP
Power
- Power Device
- Internal power supply
General
- Device Type
- Terminal server
- Height (Rack Units)
- 1U
- Width
- 43.82 cm
- Depth
- 24.13 cm
- Height
- 4.45 cm
- Weight
- 3.4 kg
Expansion / Connectivity
- Interfaces
- 1 x 100Base-TX - RJ-45
- Interfaces
- 48 x serial - RJ-45
- Interfaces
- 1 x management - RJ-45
- Interfaces
- 1 x management - DB-9
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE 48-port WW Serial Console Server is a 1U rack-mountable terminal server designed for secure, out-of-band management of network infrastructure and IT hardware. Ideal for enterprise data centres and network administrators, it provides 48 RJ-45 serial ports with SSH, Telnet, SNMP, and CLI support alongside RADIUS and LDAP authentication.
Frequently asked questions
What is the HPE 48-port Serial Console Server used for?
- It functions as a 1U terminal server that gives administrators centralised out-of-band access to serial consoles on up to 48 networked devices. This enables remote configuration, troubleshooting, and system monitoring even when standard network access is unavailable.
Which management protocols and authentication methods are supported?
- The unit supports remote management protocols including SSH, Telnet, CLI, and SNMP over TCP/IP. Security and access governance are handled via RADIUS and LDAP authentication methods.
Does this console server come with a warranty in South Africa?
- Yes, the HPE 48-port Serial Console Server includes a 3-year limited warranty. South African orders placed through Server Hub are supported locally.
