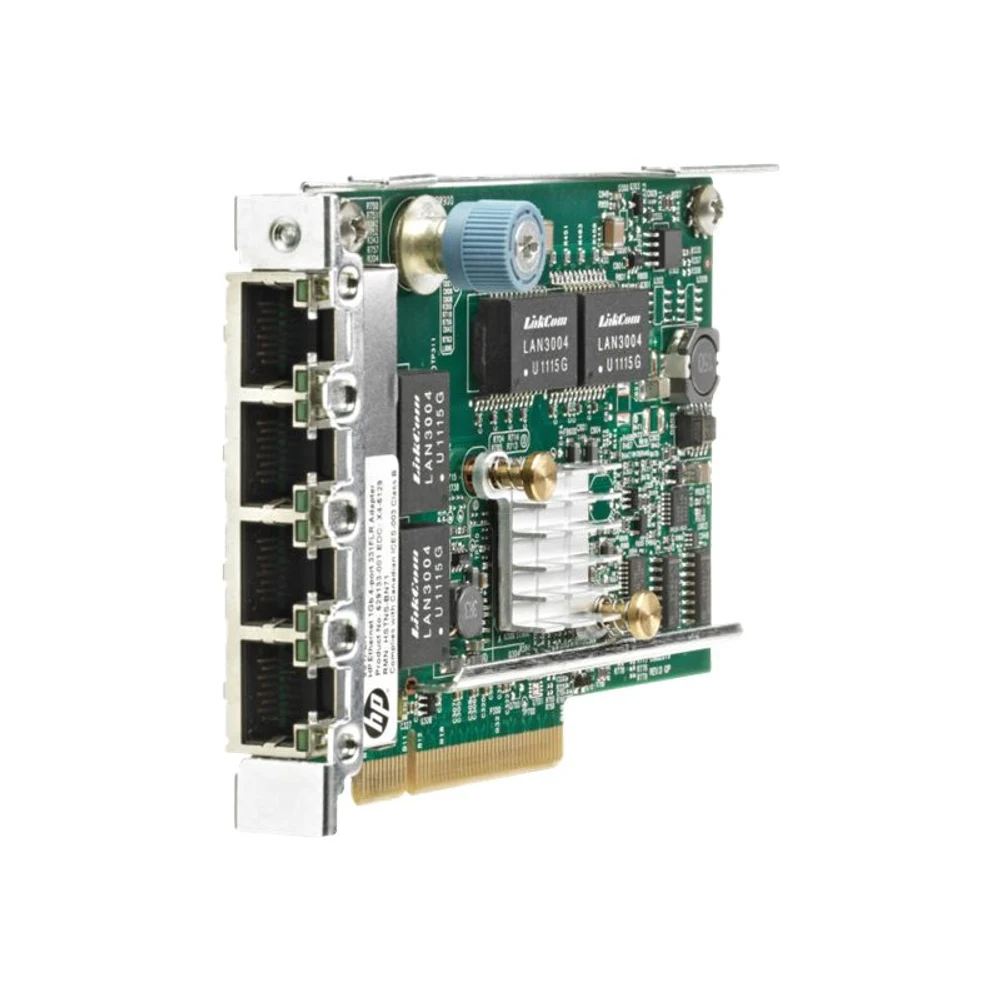

HPE 1GbE 4p FLR-T BCM5719 Adptr
hpeSPT-FD1995C89F3F19

HPE 1GbE 4p FLR-T BCM5719 Adptr

R 10 610
Available to order
3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity
1

HPE 1GbE 4p FLR-T BCM5719 Adptr.

Device Type: Network adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 2.0 x4. Ports: Gigabit Ethernet x 4. Connectivity Technology: Wired. Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet. Data Transfer Rate: 1 Gbps. Network / Transport Protocol: TCP/IP, UDP/IP.

Specifications

Processor
1 x Broadcom BCM5719

Highlights

  • Four 1Gbps RJ-45 Ethernet ports
  • Broadcom BCM5719 controller
  • FlexibleLOM PCIe 2.0 x4 plug-in card form factor
  • Hardware offloads for TCP/IP, UDP/IP checksums, LSO, and TSO
  • Low 5.5 Watt operational power consumption
  • Engineered for HPE ProLiant Gen9 and Gen10 rack servers

Networking

Ports
Gigabit Ethernet x 4
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP
Remote Management Protocol
SNMP
Status Indicators
Port transmission speed, link/activity
Features
VLAN support, full duplex mode, Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Power

Power Consumption Operational
5.5 Watt

General

Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 2.0 x4

Compatibility Information

Designed For
HPE Apollo 4520 Gen9
Designed For
HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10
Designed For
HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Serve
Designed For
HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node
Designed For
HPE StoreEasy 1850, 3850 Gateway Single Node

Dimensions & Weight

Depth
11.75 cm
Height
7.62 cm

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)

Expansion / Connectivity

Expansion Slots
1 x FlexibleLOM
Interfaces
4 x Ethernet 1000 - RJ-45

Miscellaneous

Compliant Standards
FCC Class B certified, UL, VCCI Class B ITE, EN55024, FCC Part 15, EN 60950-1, WEEE, RoHS, ICES, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN22, KN24, EN55022:2006 Class B

Processor / Memory

Processor
1 x Broadcom BCM5719

Software / System Requirements

Software Included
HP Systems Insight Manager (HP SIM)
OS Required
SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.1, VMware ESXi 5.0

Related Products

iPhone 17E Silicone Case with MagSafe - Black
Apple

iPhone 17E Silicone Case with MagSafe - Black

3–7 day delivery
R 1 220Available
Apple Power Adapter Extension Cable
Apple

Apple Power Adapter Extension Cable

3–7 day delivery
R 459Available
Sold out
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
rct

RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount

3–7 day delivery
R 260Sold Out
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
zebra

Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

Ships in 10–15 business days
R 3 920Available

The HPE 1GbE 4-Port FLR-T BCM5719 Adapter is a quad-port FlexibleLOM Gigabit Ethernet network card designed for select HPE ProLiant Gen9 and Gen10 servers. Powered by the Broadcom BCM5719 controller with a PCIe 2.0 x4 bus interface, it provides four 1Gbps RJ-45 connections to expand network bandwidth, support link aggregation, and manage virtualised server environments.

Frequently asked questions

Which servers are compatible with this adapter?

This FlexibleLOM adapter is designed for compatible HPE ProLiant Gen9 and Gen10 systems, including DL380, DL180, DL325, and DL20 series servers. It is also compatible with selected HPE Apollo, SimpliVity, and StoreEasy platforms.

What network offload features are included?

The card features TCP/IP and UDP/IP checksum offloads, Large Send Offload (LSO), TCP Segmentation Offload (TSO), and MSI-X support. These capabilities reduce host CPU overhead during high-volume data transmission.

Does this adapter include a warranty in South Africa?

Yes, this adapter includes a local South African warranty supplied via Server Hub. Your order is processed locally with transparent pricing in South African Rand.
