SPT-47DF92292F2206

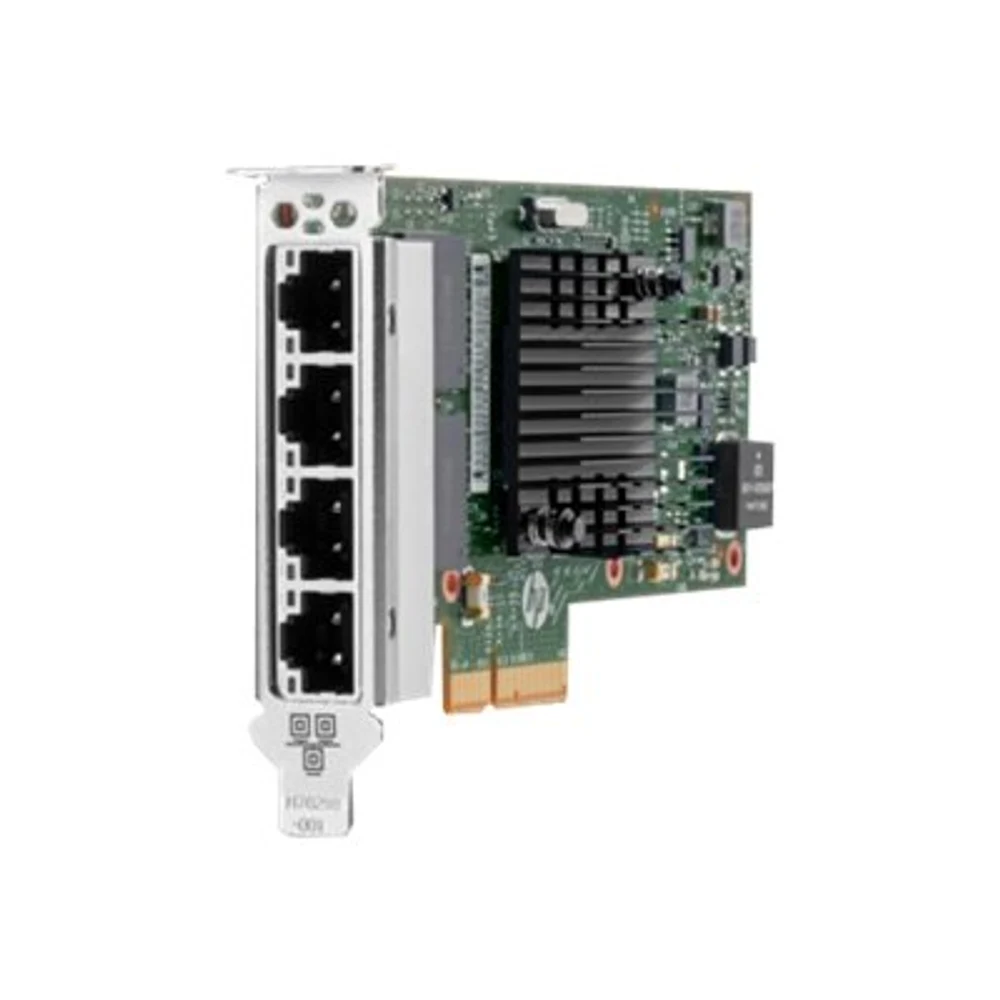

HPE 1GbE 4p BASE-T I350 Adptr
R 23 200
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
HPE 1GbE 4p BASE-T I350 Adptr.
Device Type: Network adapter. Form Factor: Plug-in card - low profile. Interface (Bus) Type: PCI Express 2.1 x4. PCI Specification Revision: PCIe 2.1. Ports: Gigabit Ethernet x 4. Connectivity Technology: Wired. Data Link Protocol: Gigabit Ethernet. Data Transfer Rate: 1 Gbps.
Specifications
- Processor
- 1 x Intel I350
Highlights
- Four RJ-45 Gigabit Ethernet ports supporting 1 Gbps transfer rates
- Powered by Intel I350 controller on a PCI Express 2.1 x4 interface
- Low-profile plug-in card with both full-height and half-height brackets included
- Enterprise features including PXE, Jumbo Frames, LSO, and MSI-X support
- Built-in network resilience with fault tolerance and link aggregation
Networking
- Ports
- Gigabit Ethernet x 4
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet
- Data Transfer Rate
- 1 Gbps
- Remote Management Protocol
- SNMP
- Status Indicators
- Port transmission speed, link/activity
- Features
- Fault tolerance, load balancing, Jumbo Frames support, PXE support, Large Send Offload (LSO), Extended Message-Signaled Interrupts (MSI-X)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1 x4
- PCI Specification Revision
- PCIe 2.1
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10
- Designed For
- HPE Edgeline e920, e920d
- Designed For
- HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10
- Designed For
- HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server f
- Designed For
- HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
Dimensions & Weight
- Depth
- 13.46 cm
- Height
- 6.86 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 4 x Ethernet 1000 - RJ-45
Miscellaneous
- Included Accessories
- Full-height bracket, half-height bracket
- Compliant Standards
- UL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, WEEE, RoHS, FCC Part 15 A, ICES, VCCI V-3 Class A ITE
Processor / Memory
- Processor
- 1 x Intel I350
Software / System Requirements
- OS Required
- SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, VMware vSphere 5.0, VMware vSphere 4.1
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE 1GbE 4p BASE-T I350 Adapter is a low-profile quad-port Gigabit Ethernet PCI Express 2.1 x4 network interface card. Powered by the Intel I350 controller, it is designed for enterprise environments needing multi-port copper connectivity, fault tolerance, and load balancing across compatible HPE ProLiant, Apollo, Edgeline, and SimpliVity Gen10 systems.
Frequently asked questions
What is the HPE 1GbE 4p BASE-T I350 Adapter used for?
- This network adapter expands server connectivity by providing four dedicated 1 Gbps RJ-45 copper Ethernet ports via a single PCIe slot. It is typically used for network segmentation, traffic load balancing, and virtualisation environments requiring multiple network interfaces.
Which servers are compatible with this network adapter?
- The adapter is designed for a wide range of HPE systems, including select HPE ProLiant Gen10 and Gen9 servers, HPE Apollo 4200 Gen10, Edgeline systems, and SimpliVity nodes. It includes both full-height and half-height brackets to suit different rack and chassis profiles.
Does this adapter come with a warranty in South Africa?
- Yes, orders placed through Server Hub are supported by a local South African warranty. This ensures direct local technical assistance and straightforward support for your hardware.
