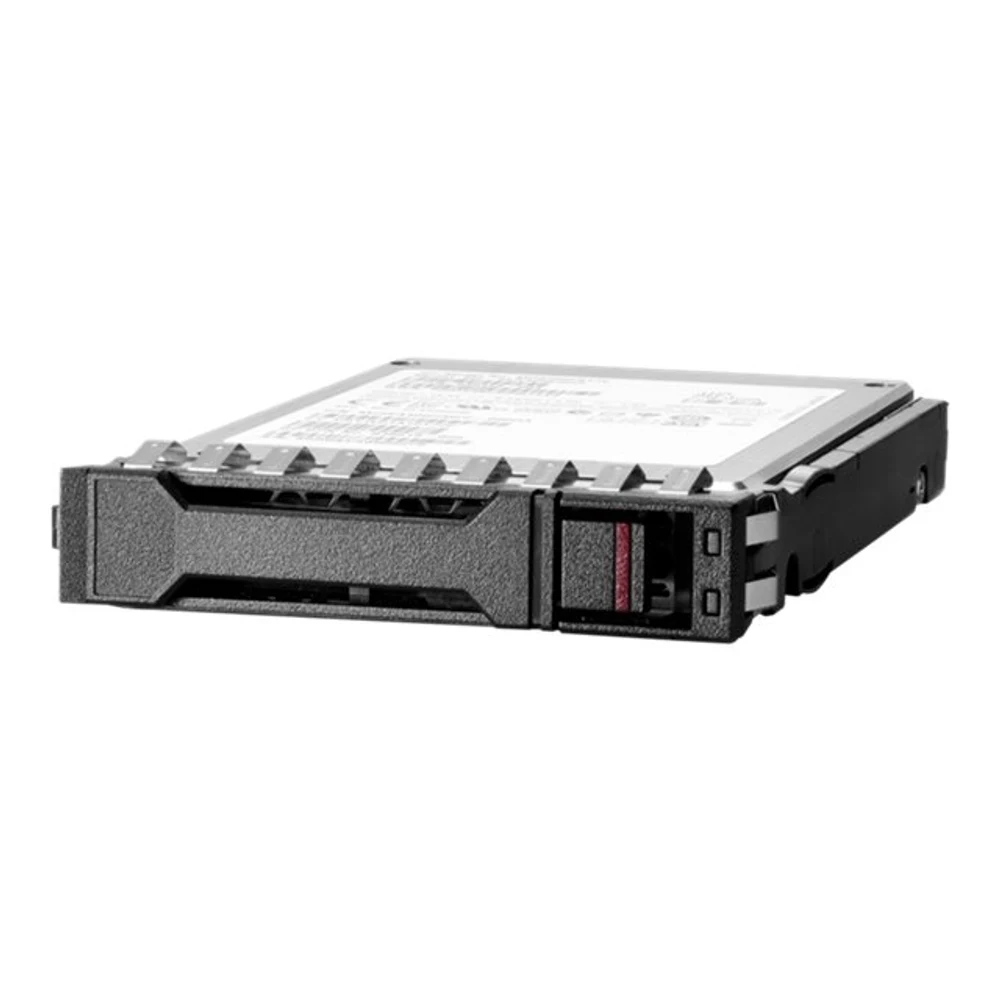

HPE 1.92T NVMeRI SFF BC U.3ST V2 MV SSD
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 1.92T NVMeRI SFF BC U.3ST V2 MV SSD.
Device Type: Solid state drive - hot-swap. Capacity: 1.92 TB. Form Factor: 2.5" SFF. Interface: U.3 PCIe 4.0 (NVMe). Height: 15 mm. Weight: 500 g. Bundled with: HPE Basic Carrier. Drive Writes Per Day (DWPD): 1.
Specifications
- Capacity
- 1.92 TB
Highlights
- 1.92 TB read intensive NVMe storage capacity
- High-throughput U.3 PCIe 4.0 interface
- Hot-swap 2.5-inch small form factor design
- Bundled with HPE Basic Carrier
- 1 Drive Write Per Day with 3504 TB endurance rating
- Up to 811976 IOPS maximum 4KB random read speed
Power
- Power Consumption
- 11.18 Watt
General
- Device Type
- Solid state drive - hot-swap
- Capacity
- 1.92 TB
- Form Factor
- 2.5" SFF
- Interface
- U.3 PCIe 4.0 (NVMe)
- Height
- 15 mm
- Weight
- 500 g
- Bundled with
- HPE Basic Carrier
Expansion & Connectivity
- Interfaces
- 1 x U.3 PCIe 4.0 (NVMe)
- Compatible Bay
- 2.5" SFF
Manufacturer Warranty
- Service & Support
- Limited warranty - parts - 3 years
Performance
- Drive Writes Per Day (DWPD)
- 1
- SSD Endurance
- 3504 TB
- Drive Class
- Read Intensive, Mainstream Performance
- 4KB Random Read
- 202698 IOPS
- 4KB Random Write
- 133123 IOPS
- Maximum 4KB Random Write
- 133753 IOPS
- Maximum 4KB Random Read
- 811976 IOPS
Related Products
Seagate IronWolf 12TB NAS Hard Drive
Seagate Barracuda 1TB 2.5-inch SATA Hard Drive
Manhattan Drive Enclosure - Hi-Speed USB 2.0, SATA, 2.5", Blue
Synology Enterprise 480GB 2.5-inch SATA SSD with 5-Year Warranty
The HPE 1.92TB NVMe Read Intensive U.3 SFF SSD is an enterprise hot-swap solid state drive engineered for data-intensive server environments. Featuring a high-speed PCIe 4.0 U.3 interface, a 2.5-inch small form factor, and an HPE Basic Carrier, it provides fast data access and dependable performance for read-dominant enterprise applications.
Frequently asked questions
What workloads is this HPE 1.92TB SSD suited for?
- This drive is designed for read intensive server workloads such as web servers, database caching, and analytics. With an endurance rating of 1 Drive Write Per Day (DWPD) and 3504 TB total bytes written, it provides high read IOPS for enterprise data access.
What interface and carrier does this HPE SSD use?
- The drive uses a high-performance U.3 PCIe 4.0 (NVMe) interface in a standard 15 mm 2.5-inch SFF profile. It comes pre-mounted in an HPE Basic Carrier (BC) for compatible hot-swap server backplanes.
Does this HPE SSD come with a warranty?
- Yes, this drive includes a 3-year limited parts warranty. When purchased through Server Hub, orders are supported with local South African warranty assistance and technical support.
