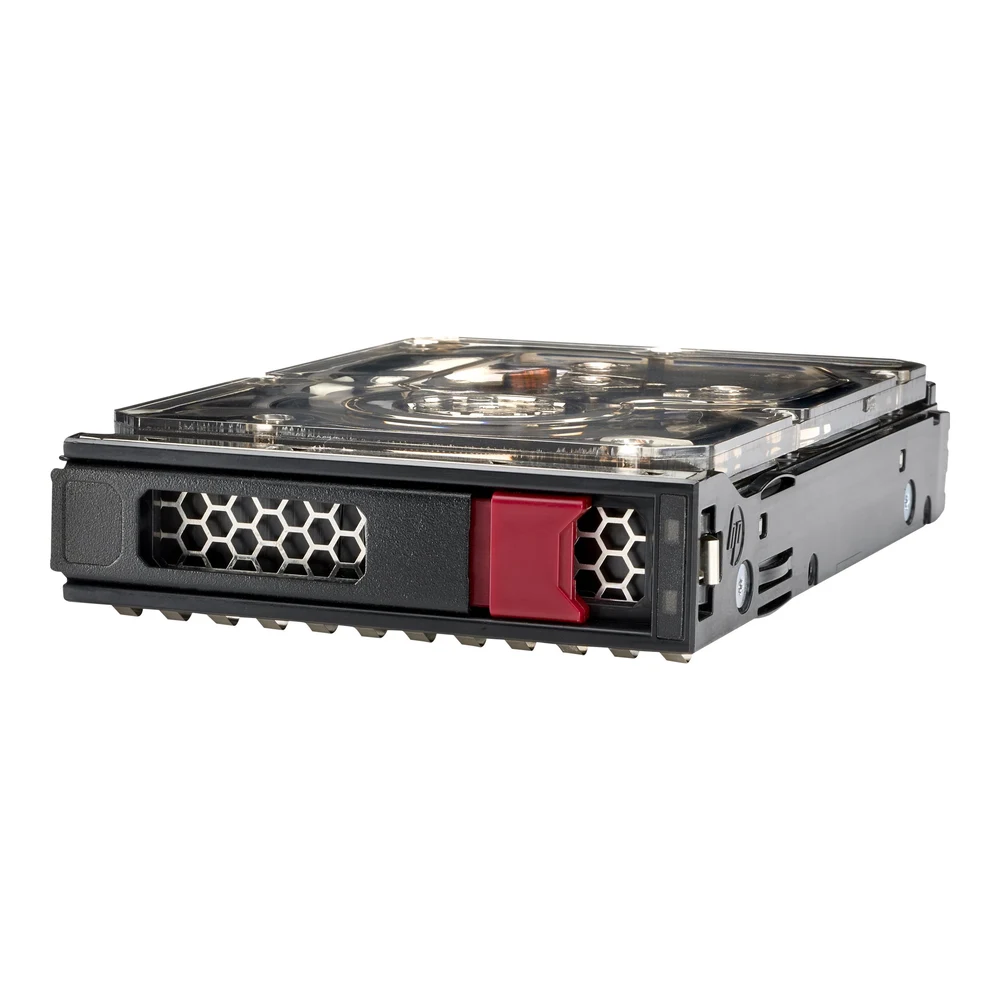

HPE 16TB SAS 7.2K LFF LP ISE MV HDD
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 16TB SAS 7.2K LFF LP ISE MV HDD.
Device Type: Hard drive - hot-swap. Capacity: 16 TB. Form Factor: 3.5" LFF. Interface: SAS 12Gb/s. Bytes per Sector: 512. Features: Instant Secure Erase (ISE), advanced format 512e. Width: 105.5 mm. Depth: 156.58 mm.
Specifications
- Capacity
- 16 TB
Highlights
- 16TB enterprise storage capacity in a 3.5-inch LFF form factor
- High-speed 12Gb/s SAS interface with 7200 rpm spindle speed
- Hot-swap support with bundled HPE Low Profile carrier
- Instant Secure Erase (ISE) and 512e advanced format technology
- Engineered for compatible HPE ProLiant DL20 and DL325 Gen10 systems
Power
- Power Consumption
- 5.23 Watt (idle)
- Power Consumption
- 6.69 Watt (random read/write)
- Power Consumption
- 8.01 Watt (sequential read)
- Power Consumption
- 6.4 Watt (sequential write)
General
- Device Type
- Hard drive - hot-swap
- Capacity
- 16 TB
- Form Factor
- 3.5" LFF
- Interface
- SAS 12Gb/s
- Bytes per Sector
- 512
- Features
- Instant Secure Erase (ISE), advanced format 512e
- Width
- 105.5 mm
- Depth
- 156.58 mm
- Height
- 26.1 mm
- Bundled with
- HPE Low Profile
Compatibility Information
- Designed For
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus (3.5")
- Designed For
- HPE ProLiant DL20 Gen10 (3.5"), DL20 Gen10 Entry (3.5"), DL20 Gen10 Performance (3.5"), DL20 Gen10 Plus (3.5"), DL20 Gen10 Plus Base (3.5"), DL20 Gen10 Plus Entry (3.5"), DL20 Gen10 Plus High Performance (3.5"), DL20 Gen10 Plus Performance (3.5"), DL20 Gen10 solution (3.5"), DL325 Gen10 Plus (3.5"), DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage (3.5"), DL325 Gen10 Plus for Weka Expansion Tracking (3.5"), DL325 Gen10 Plus V2 (3.5"), DL325 Gen10 Plus V2 Base (3.5"), DL325 Gen10
- Designed For
- HPE SimpliVity 325 Gen10 Plus V2 Node (3.5")
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
Expansion & Connectivity
- Interfaces
- 1 x SAS 12 Gb/s
- Compatible Bay
- 3.5" LFF
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Performance
- Drive Transfer Rate
- 1.2 GBps (external)
- Spindle Speed
- 7200 rpm
Related Products
Seagate IronWolf 12TB NAS Hard Drive
Seagate Barracuda 1TB 2.5-inch SATA Hard Drive
Manhattan Drive Enclosure - Hi-Speed USB 2.0, SATA, 2.5", Blue
Synology Enterprise 480GB 2.5-inch SATA SSD with 5-Year Warranty
The HPE 16TB SAS 7.2K LFF LP ISE MV HDD is an enterprise-grade 3.5-inch hot-swap hard drive engineered for high-capacity, reliable server storage. Designed for HPE ProLiant Gen10 and Gen10 Plus servers, it delivers 12Gb/s SAS performance and Instant Secure Erase technology for secure, high-density data workloads.
Frequently asked questions
What is the HPE 16TB SAS 7.2K LFF HDD used for?
- This enterprise hard drive is used to expand bulk storage capacity in compatible HPE servers and storage arrays. It is suited for applications requiring high-density, reliable storage such as data backups, archiving, and large-scale enterprise workloads.
Which servers are compatible with this 16TB HPE hard drive?
- This 3.5-inch LFF low-profile drive is designed for select HPE systems, including ProLiant DL20 Gen10, DL325 Gen10 Plus, and HPE SimpliVity 325 Gen10 Plus models equipped with 3.5-inch LFF drive bays.
Does this HPE 16TB hard drive come with a warranty?
- Yes, it includes a 1-year limited warranty backed locally in South Africa when purchased through Server Hub.
