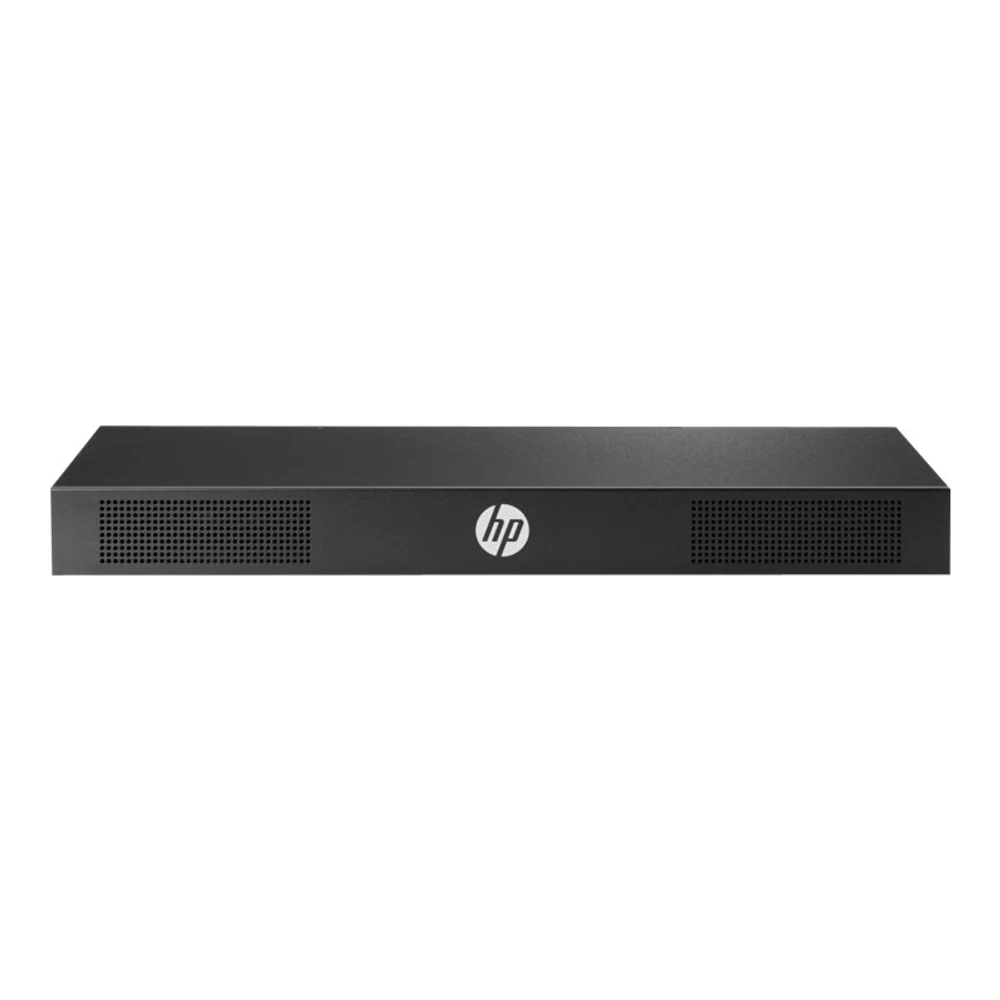

HPE 0x2x16 G3 KVM Console Switch
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
HPE 0x2x16 G3 KVM Console Switch.
Device Type: KVM switch - 16 ports - cascadable. Enclosure Type: Rack-mountable. Subtype: KVM. Ports: 16 x KVM port(s). KVM Local Users Qty: 2 local users. Server Connection Via Twisted Pair: CAT5. Keyboard / Mouse Interface: USB. Features: On-Screen Display.
Specifications
Highlights
- 16 server connections via CAT5 twisted pair cabling
- Supports 2 simultaneous local console users
- Cascadable design for expanding server management
- Integrated On-Screen Display interface
- USB keyboard and mouse connectivity with dual VGA display ports
- Rack-mountable form factor with mounting kit included
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- KVM switch - 16 ports - cascadable
- Enclosure Type
- Rack-mountable
- Subtype
- KVM
- Ports
- 16 x KVM port(s)
- KVM Local Users Qty
- 2 local users
- Server Connection Via Twisted Pair
- CAT5
- Keyboard / Mouse Interface
- USB
- Features
- On-Screen Display
Compatibility Information
- Designed For
- HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL320e Gen8 Special Server, DL320e Gen8 v2, DL320e Gen8 v2 Base, DL320e Gen8 v2 Entry, DL320e Gen8 v2 Performance, DL360e
Dimensions & Weight
- Width
- 43.8 cm
- Depth
- 16.51 cm
- Height
- 4.36 cm
- Weight
- 2.04 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 20 - 80%
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 60 °C
Expansion / Connectivity
- Interfaces
- 16 x KVM RJ-45
- Interfaces
- 1 x management
- Interfaces
- 1 x cascading RJ-45
- Interfaces
- 2 x VGA HD-15
- Interfaces
- 4 x keyboard (USB) Type A
- Interfaces
- 4 x mouse (USB) Type A
Miscellaneous
- Cables Included
- 1 x DB-9 to RJ-45 adapter
- Rack Mounting Kit
- Included
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The HPE 0x2x16 G3 KVM Console Switch is a 16-port, rack-mountable KVM switch engineered for enterprise data centres and server rooms. It allows up to two local users to manage and control multiple connected servers via CAT5 cabling, USB peripherals, and VGA displays. It is ideal for system administrators managing compatible HPE ProLiant environments.
Frequently asked questions
What is the HPE 0x2x16 G3 KVM Console Switch used for?
- It is used in server rooms and data centres to manage multiple servers from centralised consoles. Up to two local administrators can access and control 16 connected servers using CAT5 cabling, USB keyboards, USB mice, and VGA monitors.
Can I expand the HPE 0x2x16 G3 KVM beyond 16 servers?
- Yes, the switch features a dedicated RJ-45 cascading port that allows you to connect additional compatible KVM switches. This enables centralised management of a larger number of servers as your infrastructure grows.
Does this KVM switch come with a warranty in South Africa?
- Yes, orders placed through Server Hub include a local South African warranty for dependable hardware support. All units are shipped locally and priced in rand for transparent procurement.
