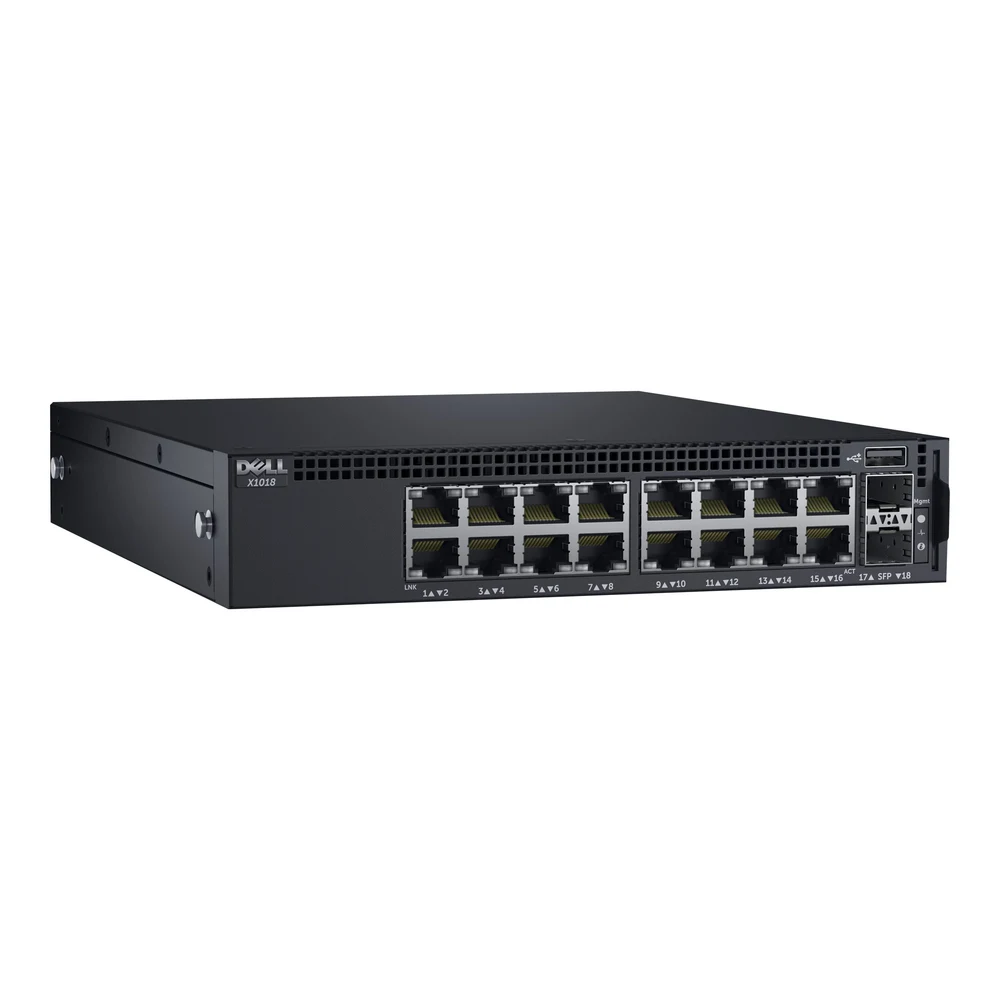

Dell Networking X1018 Smart Web Managed Switch/ 16x 1GbE and 2x 1GbE SFP ports Lifetime Limited Hardware Warranty Minimum Warranty ( add 575 BBEE to make the switch rackmountable )
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Dell Networking X1018 Smart Web Managed Switch/ 16x 1GbE and 2x 1GbE SFP ports Lifetime Limited Hardware Warranty Minimum Warranty ( add 575 BBEE to make the switch rackmountable ).
Device Type: Switch - 16 ports - L2+ - Managed. Enclosure Type: 1U. Subtype: Gigabit Ethernet. Ports: 16 x 10/100/1000 + 2 x Gigabit SFP. Performance: Switching fabric bandwidth: 36 Gbps; Forwarding performance: 26.8 Mpps. Capacity: MAC addresses: 16000; LAG groups: 12; Priority queues per port: 4; Virtual interfaces (VLANs): 4096; Maximum member ports per LAG: 8. MAC Address Table Size: 16K entries. Remote Management Protocol: SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI.
Specifications
Highlights
- 16 x 10/100/1000 Gigabit Ethernet ports and 2 x 1GbE SFP uplinks
- 36 Gbps switching fabric bandwidth with 26.8 Mpps forwarding rate
- Layer 2+ smart web management with SNMP, RMON, and CLI support
- 16K MAC address table capacity and support for up to 4096 VLANs
- Advanced traffic control including QoS, ACLs, and Broadcast Storm Control
- Compact 1U form factor with internal 40W power supply
Power
- Power Device
- Internal power supply
- Power Provided
- 40 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 21.5 Watt
General
- Device Type
- Switch - 16 ports - L2+ - Managed
- Enclosure Type
- 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 + 2 x Gigabit SFP
- Performance
- Switching fabric bandwidth: 36 Gbps
- Performance
- Forwarding performance: 26.8 Mpps
- Capacity
- MAC addresses: 16000
- Capacity
- LAG groups: 12
- Capacity
- Priority queues per port: 4
- Capacity
- Virtual interfaces (VLANs): 4096
- Capacity
- Maximum member ports per LAG: 8
- MAC Address Table Size
- 16K entries
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON, SNMP 3, HTTP, CLI
- Authentication Method
- RADIUS, TACACS+
- Features
- Auto-negotiation, VLAN support, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Uni-Directional Link Detection (UDLD), DNS server, LLDP support,
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
Dimensions & Weight
- Width
- 20.9 cm
- Depth
- 25 cm
- Height
- 41.25 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T
- Interfaces
- 2 x Gigabit LAN SFP
- Interfaces
- 1 x USB Type A management
- Interfaces
- 1 x micro-USB output management
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The Dell Networking X1018 is a compact 1U Layer 2+ smart web-managed switch designed for small to medium enterprise networks. It offers 16 Gigabit Ethernet ports and 2 dedicated 1GbE SFP uplink interfaces, delivering 36 Gbps switching fabric bandwidth for reliable local data traffic, VLAN segmentation, and simple browser-based remote management.
Frequently asked questions
What is the Dell Networking X1018 switch used for?
- It is used to connect network devices such as computers, servers, access points, and printers within a local area network (LAN). With 16 Gigabit ports and 2 SFP uplinks, it provides fast wired connectivity and optical uplink flexibility for office environments.
How is the Dell X1018 switch managed?
- The switch features an intuitive web-based interface for smart management, alongside remote control via SNMP 1/2/3, RMON, HTTP, and CLI. It enables straightforward configuration of VLANs, QoS priority queues, and network security policies.
Does the Dell X1018 switch come with a warranty in South Africa?
- Yes, it includes a limited lifetime hardware warranty supported locally in South Africa when purchased through Server Hub.
