BCM 57416 10GbE 2p BASE-T Adptr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
BCM 57416 10GbE 2p BASE-T Adptr.
Device Type: Network adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 3.0 x8. PCI Specification Revision: PCIe 3.0. Ports: Gigabit Ethernet / 10Gb Ethernet x 2. Connectivity Technology: Wired. Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v1), RDMA over Converged Ethernet (RoCE v2). Data Transfer Rate: 10 Gbps.
Specifications
- Processor
- 1 x Broadcom BCM57416
Highlights
- Dual-port 10GbE and 1GbE BASE-T RJ-45 connectivity
- PCI Express 3.0 x8 plug-in card interface
- Broadcom BCM57416 controller with 10 Gbps data transfer rate
- RoCE v1 and RoCE v2 support for low-latency networking
- Hardware security with secure boot and firmware root of trust
- Advanced virtualisation support with SR-IOV and DPDK
Networking
- Ports
- Gigabit Ethernet / 10Gb Ethernet x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v1), RDMA over Converged Ethernet (RoCE v2)
- Data Transfer Rate
- 10 Gbps
- Features
- IPv6 support, IPv4 support, RSS, UEFI support, SR-IOV, VXLAN, NVGRE, secure boot, NPAR, Mware NetQueue and Microsoft VMQ, DPDK, firmware root of trust, audit logs, tunnel offload, GENEVE support, sanitisation, UEFI PXE Boot, legacy BIOS PXE Boot
Power
- Power Consumption Operational
- 16.4 Watt
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x8
- PCI Specification Revision
- PCIe 3.0
Compatibility Information
- Designed For
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
- Designed For
- HPE ProLiant DL20 Gen10 Plus, DL20 Gen10 Plus Base, DL20 Gen10 Plus Entry, DL20 Gen10 Plus High Performance, DL20 Gen10 Plus Performance, DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL345 Gen10 Plus Base, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL365 Gen10 Plus, DL380 Gen10 Plus, D
Expansion / Connectivity
- Interfaces
- 2 x 1Gb Ethernet/10Gb Ethernet
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Processor / Memory
- Processor
- 1 x Broadcom BCM57416
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

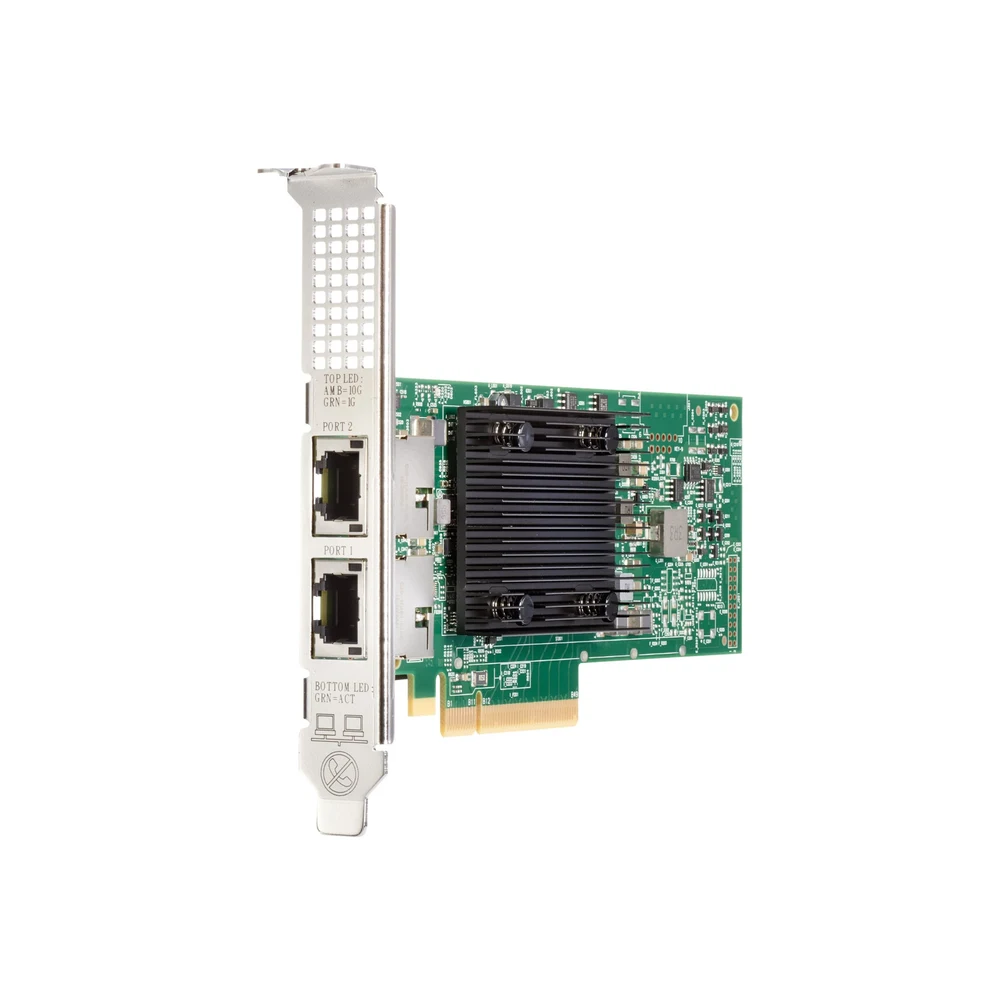

The HPE BCM 57416 10GbE 2-Port BASE-T Adapter is a dual-port PCIe 3.0 x8 network interface card designed for HPE ProLiant Gen10 Plus servers. Built for enterprise data centres and virtualised environments, it delivers 10 Gbps transfer speeds with hardware offloads including RoCE v1/v2, VXLAN, and NVGRE to optimise server networking efficiency.
Frequently asked questions
What is the HPE BCM 57416 10GbE 2-Port BASE-T Adapter used for?
- This plug-in PCIe network card provides high-speed 10 Gbps Ethernet connectivity across two ports for compatible HPE ProLiant Gen10 Plus servers. It is commonly used for bandwidth-intensive enterprise workloads, network virtualisation, and high-throughput data transfer in modern data centres.
Which servers are compatible with this adapter?
- This adapter is engineered for HPE ProLiant Gen10 Plus platforms, including the DL20, DL325, DL345, DL360, DL365, and DL380 Gen10 Plus models. It also supports HPE Nimble Storage dHCI solutions configured with DL325 Gen10 Plus hardware.
Does this network adapter come with a warranty?
- Yes, this adapter includes a 1-year limited warranty backed locally in South Africa through Server Hub. All orders are priced in South African Rand for convenient local procurement.
