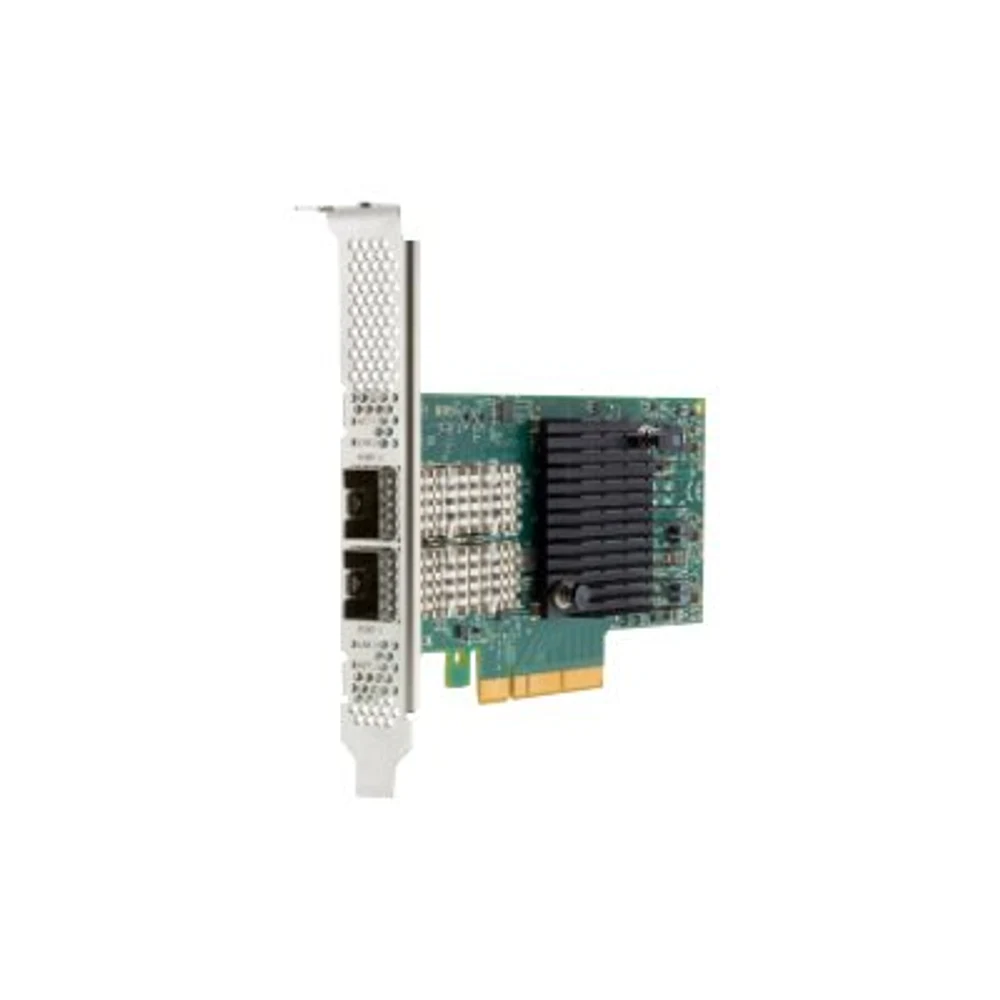

BCM 57414 10/25GbE 2p SFP28 Adptr
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
BCM 57414 10/25GbE 2p SFP28 Adptr.
Device Type: Network adapter. Form Factor: Plug-in card. Interface (Bus) Type: PCI Express 3.0 x8. PCI Specification Revision: PCIe 3.0. Ports: Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2. Connectivity Technology: Wired. Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v1), RDMA over Converged Ethernet (RoCE v2). Data Transfer Rate: 25 Gbps.
Specifications
- Processor
- 1 x Broadcom BCM57414
Highlights
- Dual SFP28 ports supporting 1GbE, 10GbE, and 25GbE speeds
- PCI Express 3.0 x8 plug-in card interface
- Broadcom BCM57414 processor with RoCE v1 and RoCE v2 support
- Hardware offloads including SR-IOV, VXLAN, NVGRE, and GENEVE
- Enhanced security with firmware root of trust and secure boot
- Energy-efficient design with 9.1W operational power consumption
Networking
- Ports
- Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v1), RDMA over Converged Ethernet (RoCE v2)
- Data Transfer Rate
- 25 Gbps
- Features
- IPv6 support, IPv4 support, Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), secure boot, Network Partitioning (NPAR), Mware NetQueue and Microsoft Virtual Machine Queue (VMQ), Data Plane Development Kit (DPDK), firmware root of trust, audit logs, tunnel offload, GENEVE support, sanitisation, UEFI PXE Boot, legacy BIOS PXE Boot
Power
- Power Consumption Operational
- 9.1 Watt
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x8
- PCI Specification Revision
- PCIe 3.0
Compatibility Information
- Designed For
- HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
- Designed For
- HPE ProLiant DL110 Gen10 Plus Front Cabled Telco, DL20 Gen10 Plus, DL20 Gen10 Plus Base, DL20 Gen10 Plus Entry, DL20 Gen10 Plus High Performance, DL20 Gen10 Plus Performance, DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 P
Expansion / Connectivity
- Interfaces
- 2 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28
Processor / Memory
- Processor
- 1 x Broadcom BCM57414
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE BCM 57414 is a dual-port 10/25GbE SFP28 PCIe 3.0 x8 network adapter designed for enterprise servers and data centres. Built for compatible HPE ProLiant systems, it delivers up to 25 Gbps data transfer speeds with hardware offloads including RoCE v1/v2, SR-IOV, and VXLAN.
Frequently asked questions
What is the HPE BCM 57414 adapter used for?
- It is used to add high-speed 10GbE or 25GbE connectivity to compatible servers. It enables low-latency data transfers using RoCE and network virtualisation offloads for virtualised and cloud environments.
Which servers are compatible with this network adapter?
- This adapter is designed for select HPE ProLiant Gen10 Plus servers, including models such as the DL20 Gen10 Plus, DL110 Gen10 Plus, and DL325 Gen10 Plus, as well as HPE Nimble Storage dHCI solutions.
Does the HPE BCM 57414 come with a warranty?
- Yes, orders include a local South African warranty backed by Server Hub. Technical support is handled locally for your peace of mind.
