Aruba USB LTE Modem
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

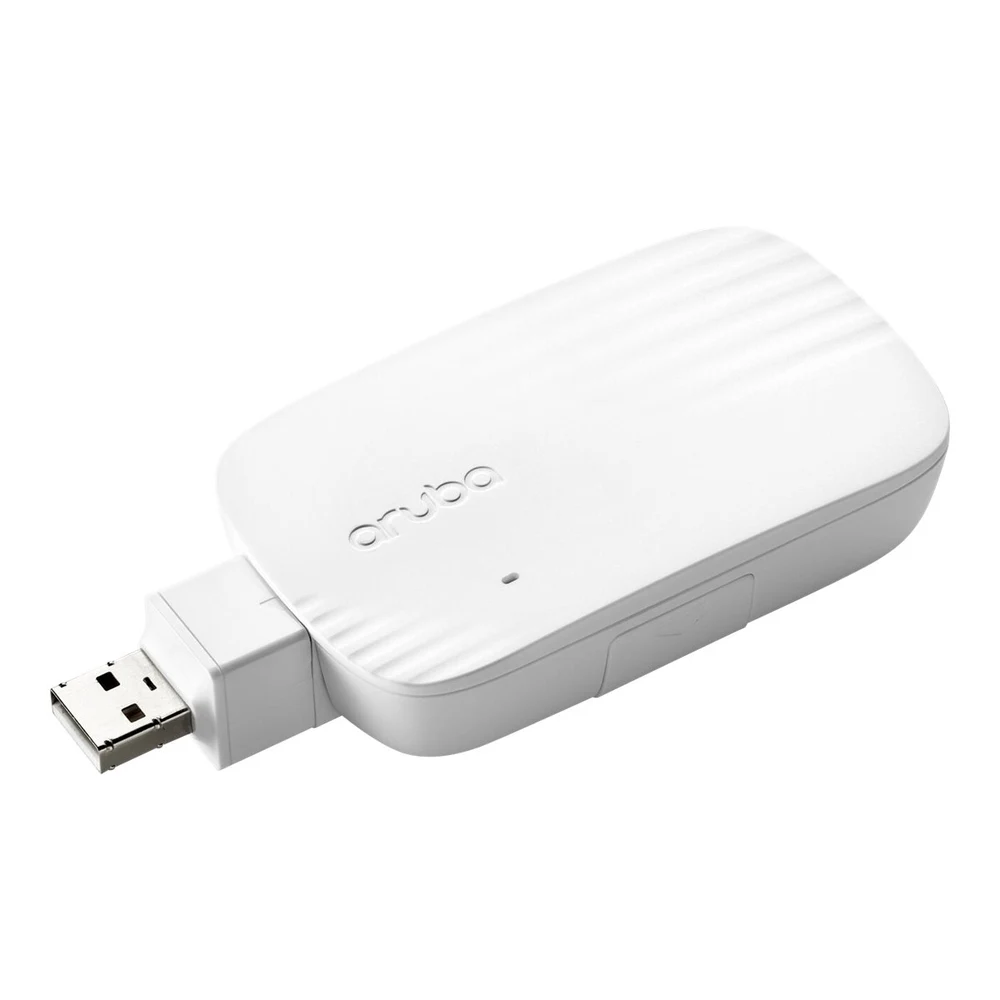

Aruba USB LTE Modem.
Device Type: Wireless cellular modem. Form Factor: External. Built-in Devices: Beidou, QZSS, GPS / GLOSNASS / Galileo. Bus: USB. Connectivity Technology: Wireless. Max Transfer Rate: 480 Mbps. Mobile Band: LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B66 / WCDMA B1/B2/B3/B4/B5/B8/B9/B19. Mobile Communication Protocol: WCDMA, FDD LTE, TDD LTE.
Specifications
Highlights
- Supports multi-band FDD LTE, TDD LTE, and WCDMA protocols
- Integrated multi-GNSS tracking including GPS, GLONASS, Galileo, Beidou, and QZSS
- USB 2.0 Type-A interface with 270-degree horizontal and 90-degree vertical swivel
- Dual internal antennas and dedicated Micro-SIM card slot
- Maximum transfer rate of up to 480 Mbps with low 3.5 W operational power draw
Power
- Power Consumption Operational
- 3.5 Watt
General
- Device Type
- Wireless cellular modem
- Form Factor
- External
- Built-in Devices
- Beidou, QZSS, GPS / GLOSNASS / Galileo
Dimensions & Weight
- Width
- 5 cm
- Depth
- 10 cm
- Height
- 2 cm
- Weight
- 78 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x USB 2.0 - Type A
Miscellaneous
- SIM Card Supported
- Micro-SIM x 1
- Compliant Standards
- Plug and Play, EN 60950, IEC 60950, UL 60950, EN 62368-1, IEC 62368-1
Modem
- Bus
- USB
- Connectivity Technology
- Wireless
- Max Transfer Rate
- 480 Mbps
- Mobile Band
- LTE B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B66 / WCDMA B1/B2/B3/B4/B5/B8/B9/B19
- Mobile Communication Protocol
- WCDMA, FDD LTE, TDD LTE
- Antenna
- Internal
- Antenna Qty
- 2
- Features
- 270° horizontal swivel / 90° vertical swivel
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba USB LTE Modem is an external wireless cellular dongle designed to provide high-speed mobile connectivity for enterprise network devices. Featuring broad FDD/TDD LTE and WCDMA band support, integrated multi-constellation GPS tracking, and an adjustable swivel USB connector, it is ideal for organisations needing reliable primary or backup cellular uplinks.
Frequently asked questions
What is the Aruba USB LTE Modem used for?
- This modem connects to compatible network hardware via USB to deliver wireless cellular data connectivity using LTE or WCDMA mobile networks. It also provides integrated satellite positioning capabilities across GPS, GLONASS, Galileo, Beidou, and QZSS.
What type of SIM card does this modem require?
- The modem features a dedicated slot designed for a single Micro-SIM card to access your cellular carrier network.
Does the Aruba USB LTE Modem come with a warranty?
- Yes, orders placed through Server Hub include a local South African warranty to protect your purchase.
