Aruba Instant On AP17 (RW) Access Point
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

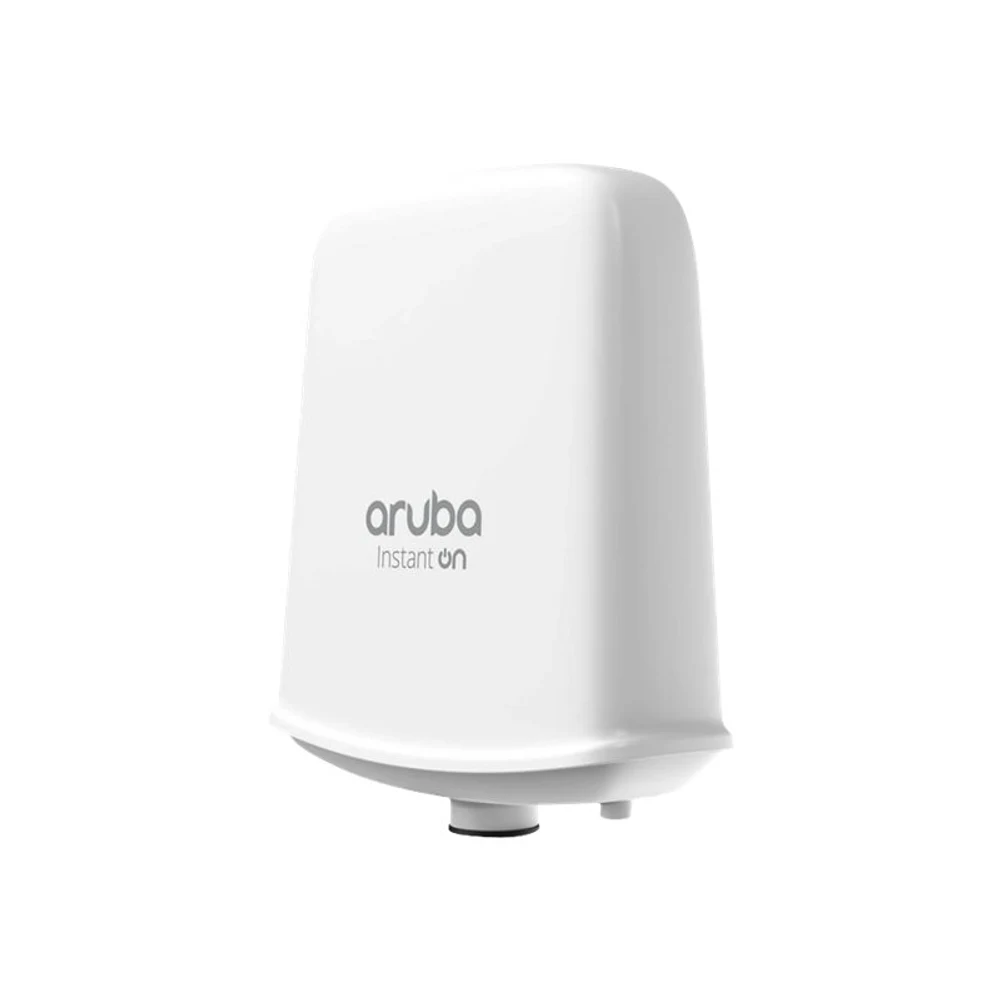

Aruba Instant On AP17 (RW) Access Point.
Device Type: Radio access point. Ruggedized Design: Outdoor. Width: 18.7 cm. Depth: 15.6 cm. Height: 6.7 cm. Weight: 650 g. Form Factor: External. Connectivity Technology: Wireless.
Specifications
Highlights
- Dual-band 802.11ac connectivity with 2T2R MIMO technology
- Concurrent data rates up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- Ruggedised outdoor design operating from -40 °C to 50 °C
- Gigabit 1000Base-T RJ-45 interface with IEEE 802.3af PoE support
- Advanced security protocols including WPA2, WPA3, and OWE
- Flexible deployment with included wall and pole mounting hardware
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Link Protocol
- Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Concurrent data rate (5 GHz): 867 Mbps
- Performance
- Concurrent data rate (2.4 GHz): 300 Mbps
- Status Indicators
- Status
- Features
- Manageable, wall mountable, reset button, 2T2R MIMO technology, pole mountable, Bluetooth (BLE) clients support
- Encryption Algorithm
- WPA2, WPA3, Opportunistic Wireless Encryption (OWE)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac
Power
- Power Over Ethernet (PoE) Supported
- PoE
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 18.7 cm
- Depth
- 15.6 cm
- Height
- 6.7 cm
- Weight
- 650 g
Aerial
- Antenna
- Internal
- Antenna Qty
- 2
- Directivity
- Omni-directional
- Gain Level
- 4.7 dBi
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 93% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
- Service & Support
- Technical support - phone consulting - 90 days
- Service & Support
- Technical support - web support - 2 years
Miscellaneous
- Included Accessories
- Cable gland M20x1.5, self-tapping screw, grounding lug, M4x8 screw, mounting bracket
- MTBF
- 34 years
- Compliant Standards
- IEC 60950, UL 2043, EN 60601-1-2, EN 60601-1-1, CB 62368
Software / System Requirements
- OS Provided
- InstantOS
Related Products
Mellanox ConnectX-3 CX353A-FCBT Single-Port 40GB QSFP+ PCIe 3.0 x8 NIC Half Hght
Teltonika TRB145 LTE Cat1 RS485 Gateway
Teltonika TRB142 LTE Cat 1, 1 x LAN (1 Gbps), RS232 Gateway
Teltonika RUTX12 Cat 6 x 2 Industrial Router,Dual-SIM, Wi-FI 5, 1 x WAN(1 Gbps), 4 x LAN(1 Gbps), MQTT, MODBUS
The Aruba Instant On AP17 (RW) is a ruggedised dual-band outdoor wireless access point engineered by HPE. Built for businesses requiring reliable external Wi-Fi coverage, it delivers concurrent speeds up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, featuring weather-resistant hardware, Power over Ethernet support, and modern WPA3 security.
Frequently asked questions
What is the Aruba Instant On AP17 used for?
- The Aruba Instant On AP17 is designed to provide secure, high-performance wireless network coverage in outdoor environments. Its weather-resistant enclosure allows reliable deployment in outdoor business areas, patios, and yards.
How is the Aruba AP17 powered?
- The access point is powered via Power over Ethernet (PoE) using its standard 1000Base-T RJ-45 port compliant with IEEE 802.3af standards. This allows both power and data to be delivered through a single network cable.
Does the Aruba Instant On AP17 come with a warranty?
- The product specifications list a 2-year limited warranty. They also list 2 years of web support and 90 days of phone consulting.
