Aruba EC-XL-H-10G SD-WAN Gateway
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

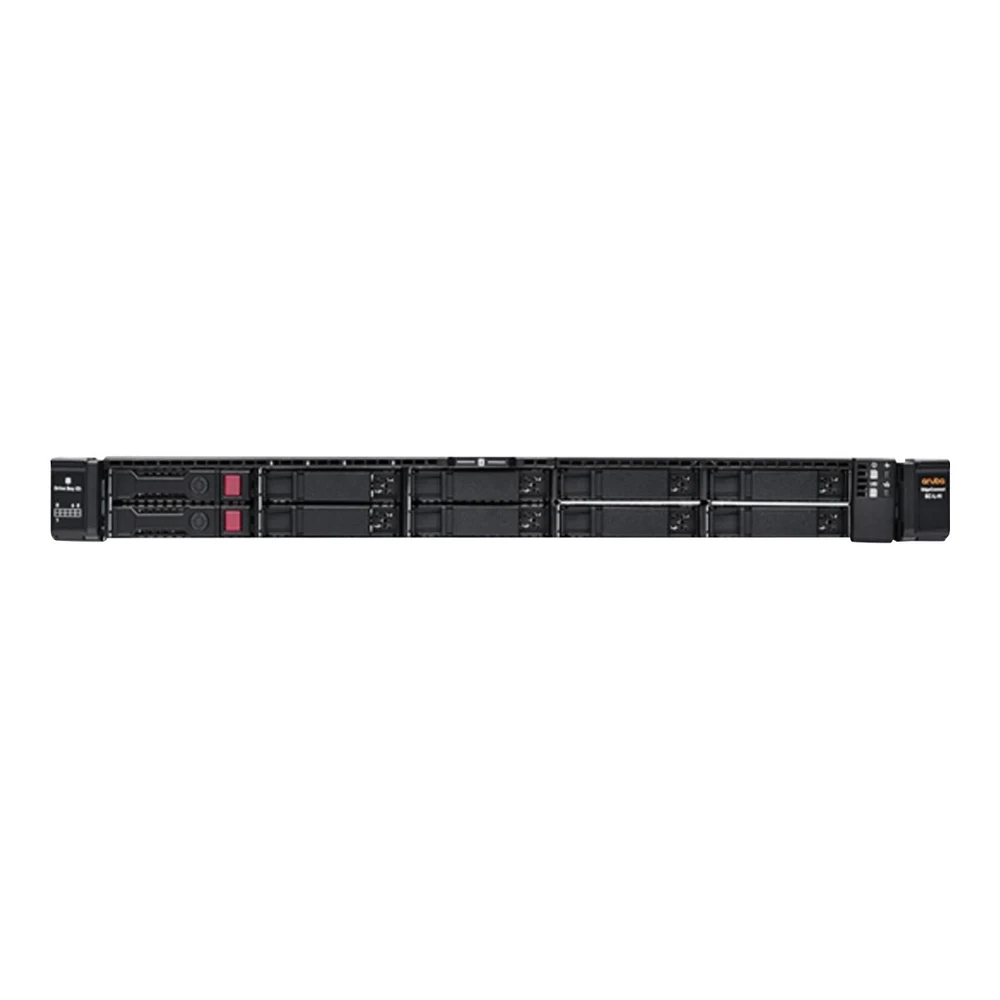

Aruba EC-XL-H-10G SD-WAN Gateway.
Device Type: SD-WAN gateway. Height (Rack Units): 1U. Width: 43.46 cm. Depth: 70.69 cm. Height: 4.29 cm. Weight: 15.2 kg. Hard Drive: SSD 480 GB x 2. Form Factor: Rack-mountable.
Specifications
- Hard Drive
- SSD 480 GB x 2
Highlights
- 1U rack-mountable chassis with dual redundant power supplies
- 2 to 10 Gbps WAN throughput with 5 Gbps recommended boost
- Six 1G/10GbE SFP+ WAN ports and dual Gigabit management ports
- Internal storage equipped with two 480 GB solid-state drives
- Supports up to 2,000,000 simultaneous connections and 64 VLANs
- Cloud-managed with 256-bit AES encryption and BGP/OSPF routing
Networking
- Form Factor
- Rack-mountable
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet
- Routing Protocol
- OSPF, BGP
- Remote Management Protocol
- SNMP 3, SNMP 2c, HTTPS, SSH
- Cloud-Managed
- Yes
- Performance
- Recommend boost: 5 Gbps
- Performance
- WAN throughput: 2 - 10 Gbps
- Capacity
- Simultaneous connections: 2000000
- Capacity
- VLANs supported: 64
- Features
- NetFlow, IPFIX
- Encryption Algorithm
- 128-bit AES, 256-bit AES, TLS 1.2
- Authentication Method
- RADIUS, TACACS+
- Compliant Standards
- IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ae
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 413 Watt
General
- Device Type
- SD-WAN gateway
- Height (Rack Units)
- 1U
- Width
- 43.46 cm
- Depth
- 70.69 cm
- Height
- 4.29 cm
- Weight
- 15.2 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 80% RH (non-condensing)
Expansion / Connectivity
- Interfaces
- 6 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+ (WAN)
- Interfaces
- 2 x 1000Base-T (management)
- Interfaces
- 1 x console
Miscellaneous
- Included Accessories
- 2 x power cords, 4 post tool-less sliding rail kit
- MTBF
- 10 years
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, CISPR 22, UL 60950-1, IEC 60950-1, FCC Part 15 A, VCCI Class A, EN 55024 Class A, EN 55032 Class A, IEC 62368, CISPR 23
- Pricing Type
- BTO
Processor / Memory / Storage
- Hard Drive
- SSD 480 GB x 2
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba EC-XL-H-10G SD-WAN Gateway by HPE is a high-performance 1U rack-mountable network appliance engineered for enterprise data centres and large campus environments. Featuring 2 to 10 Gbps WAN throughput, six 10GbE SFP+ interfaces, dual 480 GB SSDs, and support for up to 2,000,000 simultaneous connections, it provides robust cloud-managed edge routing and secure traffic optimisation.
Frequently asked questions
What is the Aruba EC-XL-H-10G SD-WAN Gateway used for?
- It is used as an enterprise-grade SD-WAN edge appliance to route, manage, and secure high-bandwidth network traffic across distributed sites. With support for up to 10 Gbps WAN throughput and 2,000,000 concurrent connections, it connects data centres and large enterprise campuses reliably.
What interfaces and connectivity options are available on this gateway?
- The gateway features six 1G/10GbE SFP+ WAN ports, two dedicated 1000Base-T management ports, and a console port. It also includes dual 480 GB SSDs and redundant internal power supplies for continuous high availability.
Does the Aruba EC-XL-H-10G come with a warranty in South Africa?
- Yes, this SD-WAN gateway comes with a local South African warranty backed by Server Hub. You receive dependable local hardware support and assistance for your enterprise infrastructure deployment.
