Aruba EC-S-P SD-WAN Gateway
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

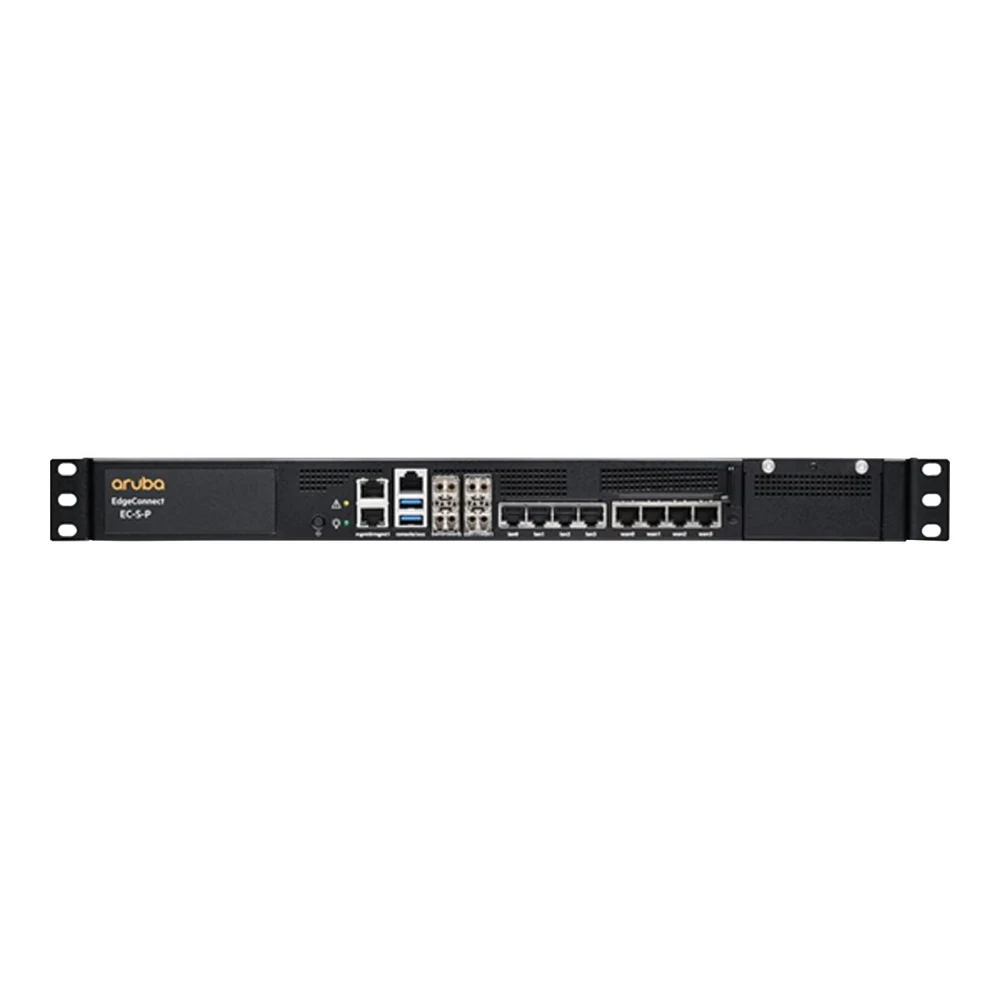

Aruba EC-S-P SD-WAN Gateway.
Device Type: SD-WAN gateway. Height (Rack Units): 1U. Width: 43.8 cm. Depth: 42 cm. Height: 4.4 cm. Weight: 8.23 kg. Hard Drive: SSD 480 GB x 2. Form Factor: Rack-mountable.
Specifications
- Hard Drive
- SSD 480 GB x 2
Highlights
- 1U rack-mountable enterprise SD-WAN gateway appliance
- WAN throughput ranging from 10 Mbps to 3000 Mbps
- Dual 480 GB solid-state drives for onboard storage
- Eight 1000Base-T RJ-45 and four 1G/10G SFP+ uplink ports
- Supports up to 256,000 simultaneous connections
- Hardware-level 128-bit and 256-bit AES encryption support
Networking
- Form Factor
- Rack-mountable
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 2, SNMP 3, HTTPS, SSH
- Cloud-Managed
- Yes
- Performance
- Recommend boost: 500 Mbps
- Performance
- WAN throughput: 10 - 3000 Mbps
- Capacity
- Simultaneous connections: 256000
- Encryption Algorithm
- 128-bit AES, 256-bit AES
- Authentication Method
- RADIUS, TACACS+
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ae
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Power Redundancy
- Optional
- Voltage Required
- AC 100-240 V (47 - 63 Hz)
- Power Consumption Operational
- 300 Watt
General
- Device Type
- SD-WAN gateway
- Height (Rack Units)
- 1U
- Width
- 43.8 cm
- Depth
- 42 cm
- Height
- 4.4 cm
- Weight
- 8.23 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 8 - 90% RH (non-condensing)
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T - RJ-45
- Interfaces
- 4 x 1 Gigabit / 10 Gigabit SFP+
- Interfaces
- 1 x console
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Miscellaneous
- MTBF
- 177,726 hours
- Compliant Standards
- UL, EN 60950, EN 61000-3-2, EN 61000-3-3, FCC Part 15 A, VCCI Class A, EN 55024 Class A, EN 55032 Class A, CB 60950-1, EN 62368, CB 62368-1, EN 55035 Class A
Processor / Memory / Storage
- Hard Drive
- SSD 480 GB x 2
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba EC-S-P SD-WAN Gateway is a 1U rack-mountable enterprise networking appliance designed for secure edge connectivity and cloud-managed branch operations. Built with two 480 GB SSDs, eight Gigabit RJ-45 ports, and four 10GbE SFP+ uplinks, it delivers up to 3000 Mbps WAN throughput for organisations requiring robust multi-site data routing and centralised management.
Frequently asked questions
What is the Aruba EC-S-P SD-WAN Gateway used for?
- The Aruba EC-S-P SD-WAN Gateway connects enterprise branch offices and data centres over wide-area networks. It manages traffic routing, cloud-delivered policies, and secure site-to-site connectivity with support for up to 256,000 concurrent sessions.
What network interfaces are available on the Aruba EC-S-P?
- This gateway is equipped with eight 1000Base-T RJ-45 Gigabit Ethernet ports and four 1G/10G SFP+ fibre transceiver slots. It also includes a dedicated RJ-45 console port for direct serial management.
Does this Aruba SD-WAN appliance come with a warranty?
- Yes, it includes a 1-year limited warranty backed locally in South Africa through Server Hub. Support and hardware coverage are handled directly for business peace of mind.
