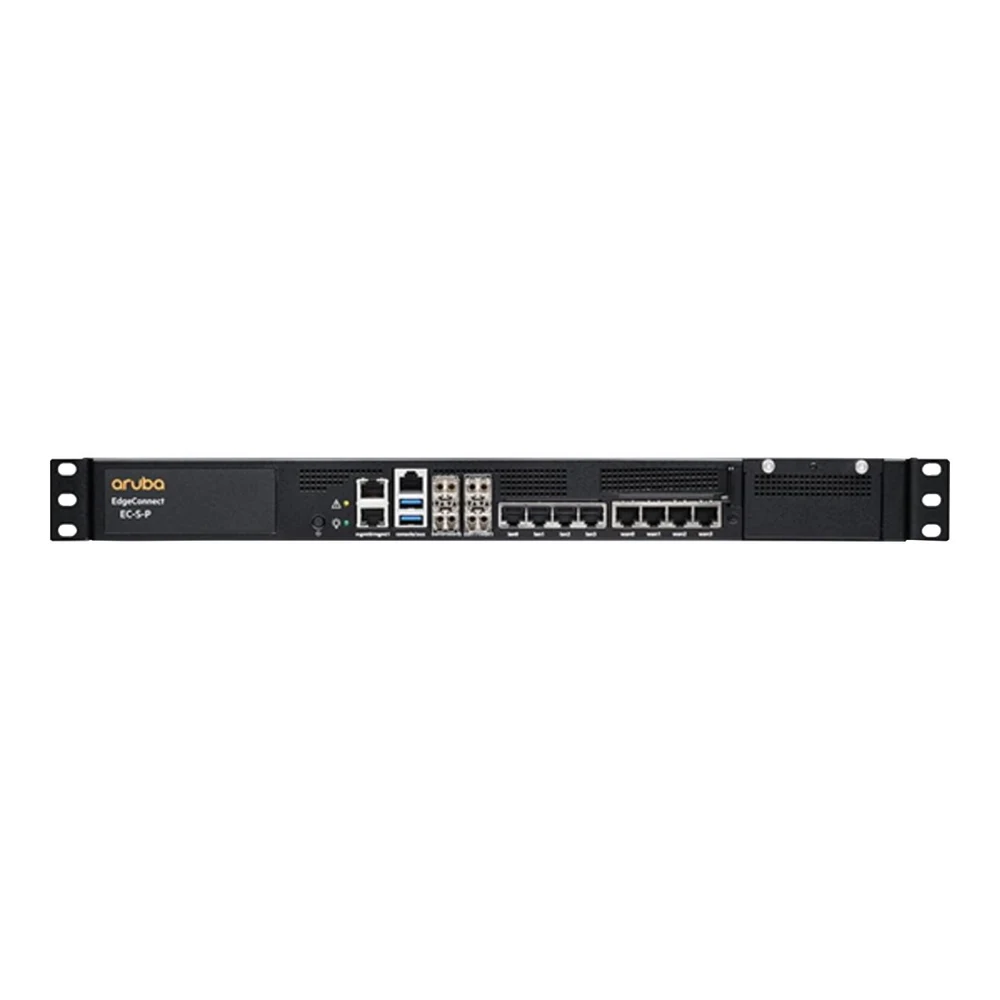

Aruba EC-S-P-NFR SD-WAN Gateway
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Aruba EC-S-P-NFR SD-WAN Gateway.
Device Type: SD-WAN gateway. Height (Rack Units): 1U. Width: 43.8 cm. Depth: 42 cm. Height: 4.4 cm. Weight: 8.23 kg. Hard Drive: SSD 2. Form Factor: Rack-mountable.
Specifications
- Hard Drive
- SSD 2
Highlights
- 1U rack-mountable chassis with dual SSD internal storage
- Scalable WAN throughput rated from 10 to 3000 Mbps
- High connection capacity supporting up to 256,000 concurrent sessions
- Flexible connectivity with four 1G/10G SFP+ and eight 1GbE RJ-45 ports
- Cloud-managed security featuring Intrusion Detection System and 256-bit AES
- Internal 300W power supply with optional power redundancy support
Networking
- Form Factor
- Rack-mountable
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol
- SNMP 3, SNMP 2c, HTTPS, SSH
- Cloud-Managed
- Yes
- Performance
- Recommend boost: 500 Mbps
- Performance
- WAN throughput: 10 - 3000 Mbps
- Capacity
- Simultaneous connections: 256000
- Features
- Intrusion Detection System (IDS), NetFlow, IPFIX
- Encryption Algorithm
- 128-bit AES, 256-bit AES
- Authentication Method
- RADIUS, TACACS+
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ae
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Power Redundancy
- Optional
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 300 Watt
General
- Device Type
- SD-WAN gateway
- Height (Rack Units)
- 1U
- Width
- 43.8 cm
- Depth
- 42 cm
- Height
- 4.4 cm
- Weight
- 8.23 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 8 - 90% RH (non-condensing)
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T - RJ-45
- Interfaces
- 4 x 1000Base-T - RJ-45 (WAN)
- Interfaces
- 4 x 1 Gigabit / 10 Gigabit SFP+ - SFP+
- Interfaces
- 2 x 1000Base-T (management) - RJ-45
- Interfaces
- 1 x console
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - 1 year - response time: 10 days
Miscellaneous
- MTBF
- 177,726 hours
- Compliant Standards
- EN 60950, EN 61000-3-2, EN 61000-3-3, UL 60950-1, FCC Part 15 A, VCCI Class A, EN 55024 Class A, EN 55032 Class A, UL 62368-1, CB 60950-1, EN 62368, CB 62368-1, EN 55035 Class A
- Pricing Type
- Not for resale
Processor / Memory / Storage
- Hard Drive
- SSD 2
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Aruba EC-S-P-NFR is a 1U rack-mountable SD-WAN gateway engineered for enterprise edge networking and branch connectivity. Featuring up to 3000 Mbps WAN throughput, support for 256,000 simultaneous connections, and integrated 10G SFP+ interfaces, it is designed for network administrators requiring secure, cloud-managed edge routing with built-in intrusion detection.
Frequently asked questions
What is the Aruba EC-S-P-NFR SD-WAN Gateway used for?
- The Aruba EC-S-P-NFR is an enterprise appliance used to manage, optimise, and secure wide area network traffic across distributed offices. It provides unified edge routing, cloud-based management, and integrated security features including NetFlow and intrusion detection.
What network interfaces are available on this appliance?
- This gateway includes four 1G/10G SFP+ optical ports, four 1000Base-T RJ-45 LAN ports, four dedicated 1000Base-T RJ-45 WAN ports, two 1GbE management ports, and a console port.
Does the Aruba EC-S-P-NFR include a local warranty?
- Yes, this product is backed by a 1-year limited hardware replacement warranty supported locally in South Africa via Server Hub.
