SPT-A9F92B5A997B44

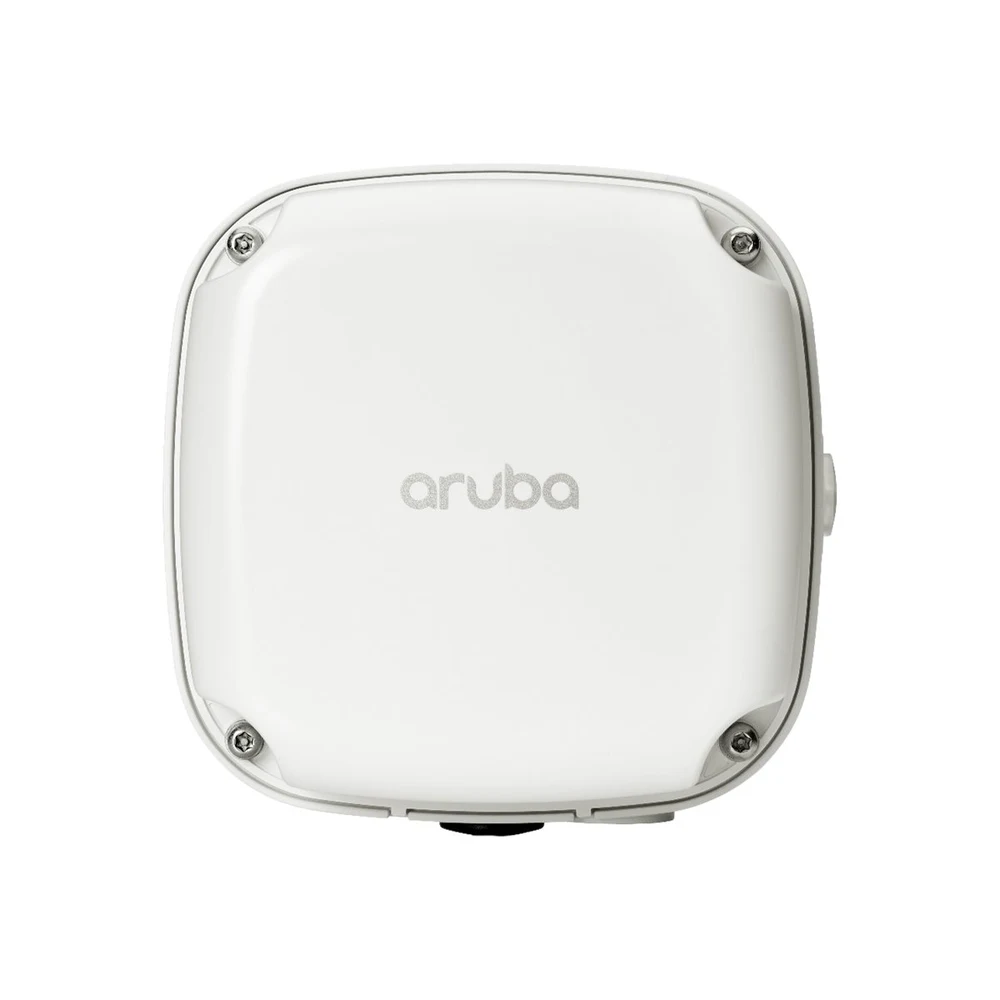

Aruba AP-567 (RW) TAA Outdoor 11ax AP
R 37 070
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
Aruba AP-567 (RW) TAA Outdoor 11ax AP.
Device Type: Radio access point. Ruggedized Design: Outdoor. Width: 16.5 cm. Depth: 16.5 cm. Height: 11 cm. Weight: 1.09 kg. Form Factor: External. Connectivity Technology: Wireless.
Specifications
Highlights
- Wi-Fi 6 (802.11ax) dual-radio support with data transfer rates up to 1.49 Gbps
- Ruggedised IP66 and IP67 weather-rated external enclosure
- Integrated directional antenna for focused outdoor wireless coverage
- Built-in Bluetooth 5.0 Low Energy and Zigbee radios for IoT devices
- Gigabit Ethernet interface powered via standard PoE+ (15.6W)
- Wide operating temperature range between -40 °C and 55 °C
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 1.49 Gbps
- Line Coding Format
- CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
- Spread Spectrum Method
- OFDM, DSSS, OFDMA
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (5 GHz): 1.2 Gbps
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps
- Capacity
- Wireless clients per Wi-Fi radio: 256
- Capacity
- BSSIDs per radio: 16
- Capacity
- OFDMA units: 16
- Status Indicators
- System, status, radio
- Features
- Auto-uplink (auto MDI/MDI-X), Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Hig
- Encryption Algorithm
- WPA3-Enhanced Open, WPA2-MPSK
Power
- Power Over Ethernet (PoE) Supported
- PoE+
- Power Consumption Operational
- 15.6 Watt
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 16.5 cm
- Depth
- 16.5 cm
- Height
- 11 cm
- Weight
- 1.09 kg
Aerial
- Antenna
- Internal
- Directivity
- Directional
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T - RJ-45
- Interfaces
- 2 x aerial
- Interfaces
- 1 x console - USB-C
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Communications Technology
- Bluetooth Low Energy (LE), Zigbee
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Compliant Standards
- CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETSI 300 019-2-4, RED 2014/53/EU
- Pricing Type
- BTO
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- ArubaOS, InstantOS 8.8.0.0
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The Aruba AP-567 (RW) TAA is a ruggedised outdoor Wi-Fi 6 (802.11ax) radio access point designed for enterprise deployments requiring reliable wireless coverage in harsh environments. Featuring internal directional antennas, integrated Bluetooth 5.0 and Zigbee IoT support, and IP66/IP67 weatherproofing, it provides up to 1.49 Gbps data transfer rates for high-density outdoor client environments.
Frequently asked questions
What environments is the Aruba AP-567 designed for?
- The Aruba AP-567 is engineered for demanding outdoor environments, featuring a ruggedised IP66 and IP67 weather-rated enclosure. It operates reliably in severe temperatures ranging from -40 °C to 55 °C.
What wireless speeds does the Aruba AP-567 support?
- This access point supports dual-band Wi-Fi 6 connectivity, delivering a maximum data rate of 1.2 Gbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, with an aggregate data transfer rate of 1.49 Gbps.
Does the Aruba AP-567 come with a warranty?
- Yes, this unit comes with a limited lifetime manufacturer warranty and is backed locally in South Africa via Server Hub.
