SPT-2C444A83A39C3B
Aruba AP-565 (RW) TAA Outdoor 11ax AP
R 37 070
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

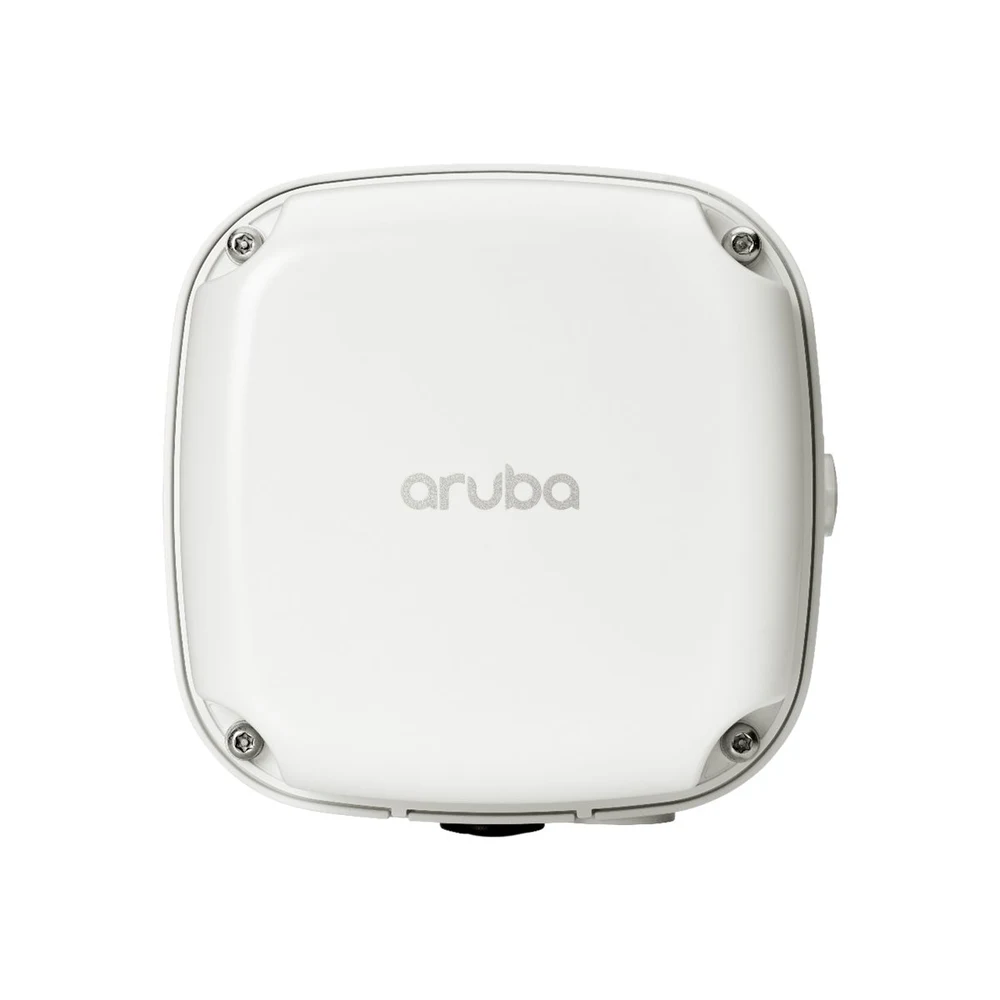

Aruba AP-565 (RW) TAA Outdoor 11ax AP.
Device Type: Radio access point. Ruggedized Design: Outdoor. Width: 16.5 cm. Depth: 16.5 cm. Height: 11 cm. Weight: 1.03 kg. Form Factor: External. Connectivity Technology: Wireless.
Specifications
Highlights
- Dual-band Wi-Fi 6 connectivity with data rates up to 1.49 Gbps
- Ruggedised IP66 and IP67 weather-rated outdoor enclosure
- Integrated Bluetooth 5.0 Low Energy and Zigbee IoT radios
- Internal omni-directional antennas with MU-MIMO support
- Power over Ethernet (PoE+) powered for streamlined deployment
- TAA compliant hardware running ArubaOS or InstantOS
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 1.49 Gbps
- Line Coding Format
- CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
- Spread Spectrum Method
- OFDM, DSSS, OFDMA
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (5 GHz): 1.2 Gbps
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps
- Capacity
- Wireless clients per Wi-Fi radio: 256
- Capacity
- BSSIDs per radio: 16
- Capacity
- OFDMA units: 16
- Status Indicators
- System, status, radio
- Features
- Auto-uplink (auto MDI/MDI-X), Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Virtual Mobility Controller mode, Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Hig
- Encryption Algorithm
- WPA3-Enhanced Open, WPA2-MPSK
Power
- Power Over Ethernet (PoE) Supported
- PoE+
- Power Consumption Operational
- 15.6 Watt
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 16.5 cm
- Depth
- 16.5 cm
- Height
- 11 cm
- Weight
- 1.03 kg
Aerial
- Antenna
- Internal
- Directivity
- Omni-directional
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T - RJ-45
- Interfaces
- 2 x aerial
- Interfaces
- 1 x console - USB-C
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Communications Technology
- Bluetooth Low Energy (LE), Zigbee
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Compliant Standards
- CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETSI 300 019-2-4, RED 2014/53/EU
- Pricing Type
- BTO
- TAA Compliant
- Yes
Software / System Requirements
- OS Required
- ArubaOS, InstantOS 8.8.0.0
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The Aruba AP-565 (RW) TAA is a ruggedised Wi-Fi 6 (802.11ax) outdoor radio access point designed by HPE for enterprise environments requiring weather-resistant wireless connectivity. Supporting combined transfer rates up to 1.49 Gbps alongside integrated Bluetooth 5.0 and Zigbee IoT radios, it is built for campus grounds, industrial sites, and demanding outdoor commercial deployments.
Frequently asked questions
What is the Aruba AP-565 outdoor access point used for?
- The Aruba AP-565 is engineered to deliver high-performance Wi-Fi 6 wireless coverage in exposed outdoor environments. It connects high-density client devices across business campuses, warehouses, public venues, and hazardous industrial locations while also bridging IoT devices via Bluetooth and Zigbee.
Can the Aruba AP-565 withstand harsh weather conditions?
- Yes, this access point features a ruggedised enclosure with IP66 and IP67 weather ratings. It is designed to operate reliably in temperatures ranging from -40 °C to 55 °C and withstand non-condensing humidity levels up to 95%.
Does the Aruba AP-565 come with a warranty in South Africa?
- Yes, orders placed through Server Hub include genuine product support and a local South African warranty for your enterprise networking peace of mind.
