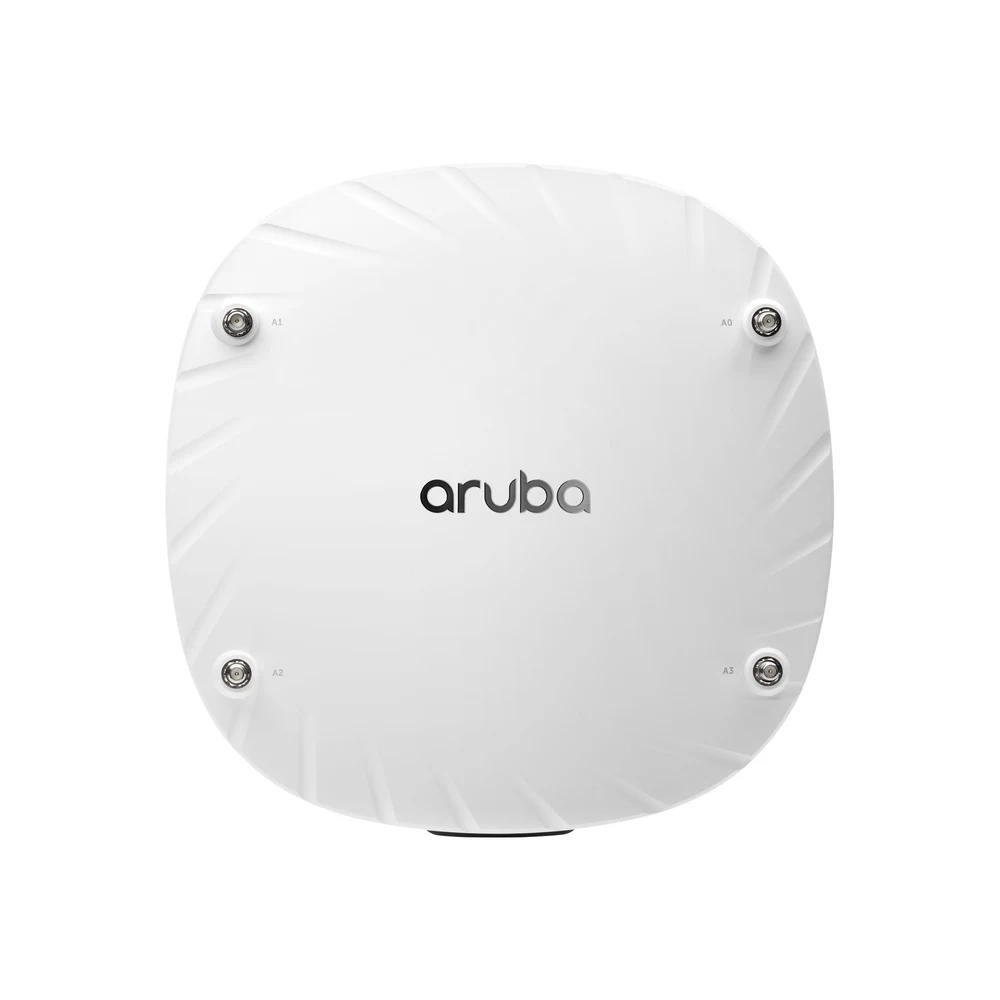

Aruba AP-534 (RW) TAA Unified AP
hpeSPT-48DCCDD99DC22E

Aruba AP-534 (RW) TAA Unified AP

R 41 710
Available to order
3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity
1

Aruba AP-534 (RW) TAA Unified AP.

Device Type: Radio access point. Ruggedized Design: Indoor. Width: 24 cm. Depth: 24 cm. Height: 5.7 cm. Weight: 1 kg. Form Factor: External. Connectivity Technology: Wireless.

Specifications

Highlights

  • High-performance Wi-Fi 6 with up to 3.55 Gbps aggregate bandwidth
  • Supports up to 1024 wireless clients per radio and 37 OFDMA units
  • Four external detachable antenna connectors using RP-SMA interfaces
  • Integrated IoT compatibility with Bluetooth Low Energy and Zigbee
  • HPE Smart Rate multi-gigabit Ethernet uplink with PoE support
  • TAA compliant hardware with built-in Trusted Platform Module

Networking

Form Factor
External
Connectivity Technology
Wireless
Data Transfer Rate
2.4 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method
OFDM, DSSS, OFDMA
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (2.4 GHz): 1150 Mbps
Performance
Maximum data rate (5 GHz): 2.4 Gbps
Performance
Aggregate bandwidth: 3.55 Gbps
Capacity
Wireless clients per Wi-Fi radio: 1024
Capacity
OFDMA units: 37
Capacity
BSSIDs per radio: 16
Status Indicators
System, status
Features
Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring
Encryption Algorithm
WPA, WPA2, WPA3
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax

Power

Power Over Ethernet (PoE) Supported
PoE

General

Device Type
Radio access point
Ruggedized Design
Indoor
Width
24 cm
Depth
24 cm
Height
5.7 cm
Weight
1 kg

Aerial

Antenna
External detachable
Antenna Qty
4

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 93% (non-condensing)

Expansion / Connectivity

Interfaces
1 x HPE Smart Rate - RJ-45
Interfaces
1 x USB 2.0 - Type A
Interfaces
4 x aerial - RP-SMA x 4

Internet of Things (IoT)

Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth Low Energy (LE), Zigbee

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Miscellaneous

Included Accessories
Mounting brackets
MTBF
57 years
Compliant Standards
FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2
TAA Compliant
Yes

Software / System Requirements

OS Required
ArubaOS, InstantOS

Related Products

iPhone 17E Silicone Case with MagSafe - Black
Apple

iPhone 17E Silicone Case with MagSafe - Black

3–7 day delivery
R 1 220Available
Apple Power Adapter Extension Cable
Apple

Apple Power Adapter Extension Cable

3–7 day delivery
R 459Available
Sold out
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
rct

RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount

3–7 day delivery
R 260Sold Out
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
zebra

Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

Ships in 10–15 business days
R 3 920Available

The HPE Aruba AP-534 (RW) TAA Unified AP is an enterprise indoor Wi-Fi 6 (802.11ax) radio access point designed for high-density corporate environments. Delivering up to 3.55 Gbps aggregate bandwidth with support for up to 1024 clients per radio, it provides robust wireless coverage, IoT integration via Bluetooth and Zigbee, and advanced enterprise-grade security.

Frequently asked questions

What environments is the Aruba AP-534 best suited for?

The Aruba AP-534 is designed for high-density indoor commercial environments such as offices, campuses, and enterprise facilities. It handles up to 1024 clients per Wi-Fi radio and uses Wi-Fi 6 OFDMA technology to efficiently manage congested network traffic.

What connectivity and IoT options does the AP-534 provide?

In addition to high-speed dual-band Wi-Fi 6 connectivity, this access point features built-in Bluetooth 5.0 and Zigbee support for IoT deployments. It connects to your wired infrastructure via an HPE Smart Rate RJ-45 Ethernet port supporting Power over Ethernet.

Does the Aruba AP-534 come with a warranty?

Yes, this access point includes a manufacturer limited lifetime warranty. When purchased via Server Hub, you receive dependable local South African warranty support and order assistance.
