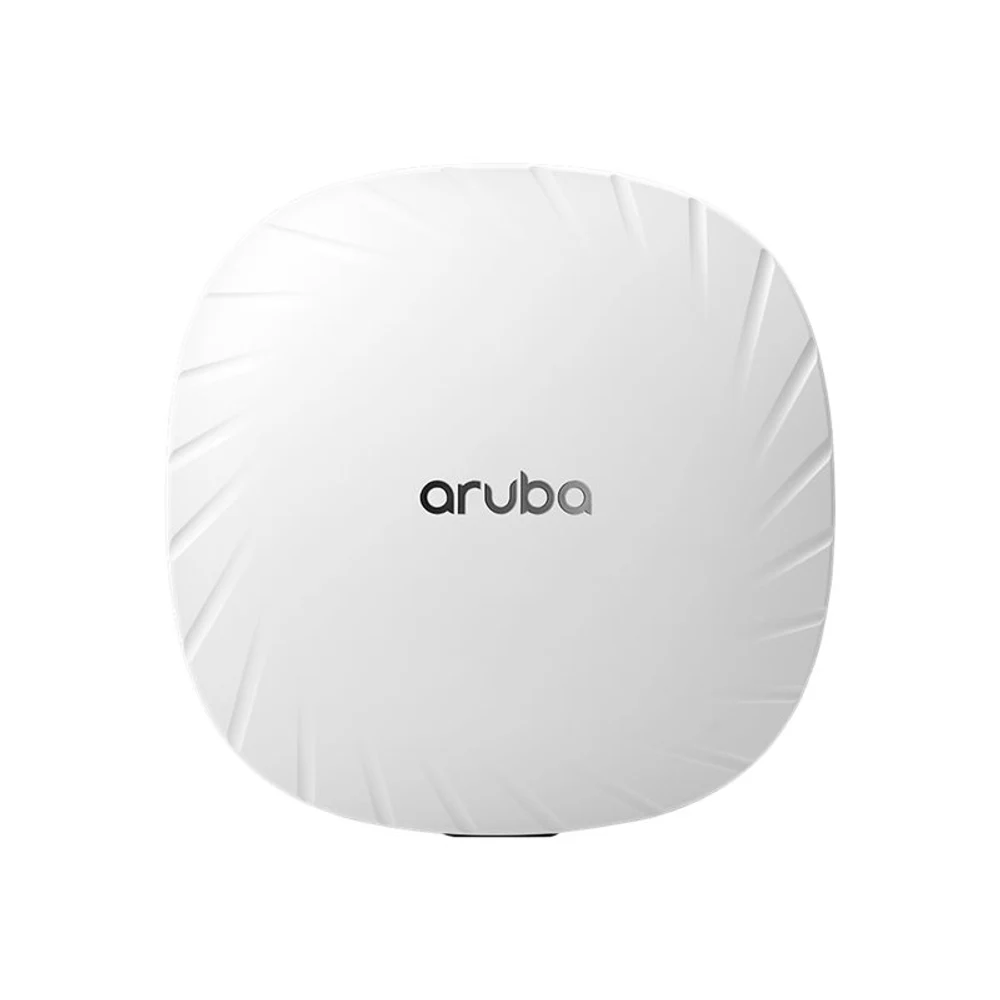

Aruba AP-515 (EG) Unified AP
hpeSPT-BF839AC6FDB86C

Aruba AP-515 (EG) Unified AP

R 25 470
Available to order
3–7 day delivery

New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).

30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

Quantity
1

Aruba AP-515 (EG) Unified AP.

Device Type: Radio access point. Ruggedized Design: Indoor. Width: 20 cm. Depth: 20 cm. Height: 4.6 cm. Weight: 810 g. Form Factor: In-ceiling. Connectivity Technology: Wireless.

Specifications

Highlights

  • Wi-Fi 6 (802.11ax) connectivity with aggregate speeds up to 5.4 Gbps
  • Dual-band operation delivering 4.8 Gbps on 5 GHz and 575 Mbps on 2.4 GHz
  • High capacity supporting up to 256 wireless clients per radio
  • Integrated Bluetooth 5.0 and Zigbee for IoT compatibility
  • HPE Smart Rate and 1000Base-T Ethernet ports with PoE support
  • Advanced enterprise security with WPA, WPA2, and WPA3 encryption

Networking

Form Factor
In-ceiling
Connectivity Technology
Wireless
Data Transfer Rate
4.8 Gbps
Line Coding Format
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Spread Spectrum Method
OFDM, DSSS
Frequency Band
2.4 GHz, 5 GHz
Performance
Maximum data rate (2.4 GHz): 575 Mbps
Performance
Maximum data rate (5 GHz): 4.8 Gbps
Performance
Aggregate bandwidth: 5.4 Gbps
Capacity
Wireless clients per Wi-Fi radio: 256
Capacity
OFDMA units: 16
Capacity
BSSIDs per radio: 16
Status Indicators
System, status
Features
Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring
Encryption Algorithm
WPA, WPA2, WPA3
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax

Power

Power Over Ethernet (PoE) Supported
PoE
Power Consumption Operational
16 Watt

General

Device Type
Radio access point
Ruggedized Design
Indoor
Width
20 cm
Depth
20 cm
Height
4.6 cm
Weight
810 g

Aerial

Antenna
Internal
Antenna Qty
4
Directivity
Omni-directional
Gain Level
7.5 dBi

Dimensions & Weight (Shipping)

Shipping Width
23 cm
Shipping Depth
22 cm
Shipping Height
7.2 cm
Shipping Weight
1.01 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 93% (non-condensing)

Expansion / Connectivity

Interfaces
1 x HPE Smart Rate - RJ-45
Interfaces
1 x 1000Base-T - RJ-45
Interfaces
1 x USB 2.0 - Type A
Interfaces
1 x console - micro-USB

Internet of Things (IoT)

Internet of Things (IoT) Compatible
Yes
Communications Technology
Bluetooth, Zigbee

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Miscellaneous

MTBF
64 years
Compliant Standards
UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019 Class 1.1, ETS 300 019 Class 2.3

Software / System Requirements

OS Required
ArubaOS, InstantOS

Related Products

iPhone 17E Silicone Case with MagSafe - Black
Apple

iPhone 17E Silicone Case with MagSafe - Black

3–7 day delivery
R 1 220Available
Apple Power Adapter Extension Cable
Apple

Apple Power Adapter Extension Cable

3–7 day delivery
R 459Available
Sold out
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
rct

RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount

3–7 day delivery
R 260Sold Out
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
zebra

Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking

Ships in 10–15 business days
R 3 920Available

The HPE Aruba AP-515 (EG) Unified AP is an indoor, in-ceiling Wi-Fi 6 (802.11ax) radio access point designed for high-density enterprise networking. Delivering aggregate wireless bandwidth of up to 5.4 Gbps across dual 2.4 GHz and 5 GHz radios, it provides robust performance for up to 256 clients per radio alongside integrated Bluetooth and Zigbee IoT capabilities.

Frequently asked questions

What is the Aruba AP-515 (EG) Unified AP used for?

The Aruba AP-515 is an enterprise indoor access point engineered to deliver high-performance Wi-Fi 6 coverage in medium-density environments. It delivers high-speed wireless connectivity for office workspaces while simultaneously accommodating IoT devices via built-in Bluetooth and Zigbee radios.

How is the Aruba AP-515 access point powered?

The AP-515 operates using standard Power over Ethernet (PoE) via its network interfaces, requiring an operational power consumption of 16 Watts. This allows for straightforward in-ceiling or wall installation without the need for adjacent AC power sockets.

Does the Aruba AP-515 come with a warranty in South Africa?

Yes, this product is backed by a limited lifetime manufacturer warranty. Purchases through Server Hub include local South African warranty support for complete peace of mind.
