SPT-7A37C2C2DCBE06
Aruba AP-504 (EG) Unified AP
R 16 190
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

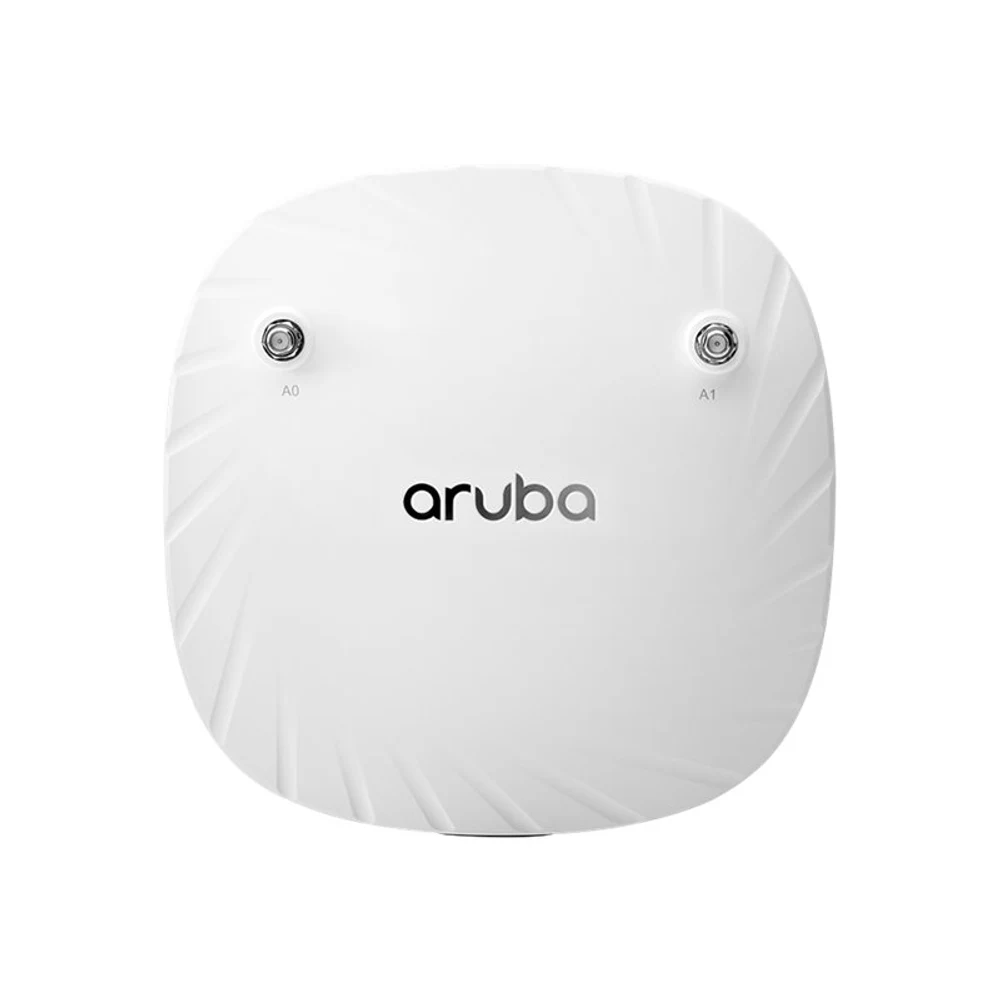

Aruba AP-504 (EG) Unified AP.
Device Type: Radio access point. Ruggedized Design: Indoor. Width: 16 cm. Depth: 16.1 cm. Height: 3.7 cm. Weight: 500 g. Form Factor: External. Connectivity Technology: Wireless.
Specifications
Highlights
- Wi-Fi 6 connectivity delivering up to 1.774 Gbps aggregate throughput
- Dual-band operation with 1.2 Gbps on 5 GHz and 574 Mbps on 2.4 GHz
- Support for up to 256 wireless clients per Wi-Fi radio
- Integrated Bluetooth 5.0 Low Energy and Zigbee for IoT compatibility
- Two external detachable antenna connectors (RP-SMA)
- Power over Ethernet (PoE) support with 8.9 W operational consumption
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 1.2 Gbps
- Line Coding Format
- CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
- Spread Spectrum Method
- OFDM, DSSS, OFDMA
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps
- Performance
- Maximum data rate (5 GHz): 1.2 Gbps
- Performance
- Aggregate throughput: 1.774 Gbps
- Capacity
- Wireless clients per Wi-Fi radio: 256
- Capacity
- BSSIDs per radio: 16
- Capacity
- OFDMA units: 8
- Status Indicators
- System, status
- Features
- Auto-uplink (auto MDI/MDI-X), Deep Packet Inspection (DPI), Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (
- Encryption Algorithm
- SSL, WPA, WPA2, WPA3
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Consumption Operational
- 8.9 Watt
General
- Device Type
- Radio access point
- Ruggedized Design
- Indoor
- Width
- 16 cm
- Depth
- 16.1 cm
- Height
- 3.7 cm
- Weight
- 500 g
Aerial
- Antenna
- External detachable
- Antenna Qty
- 2
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 93% (non-condensing)
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T - RJ-45
- Interfaces
- 1 x USB 2.0 - Type A
- Interfaces
- 2 x aerial - RP-SMA x 2
- Interfaces
- 1 x console - micro-USB
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Communications Technology
- Bluetooth Low Energy (LE), Zigbee
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- Mounting bracket
- MTBF
- 148 years
- Compliant Standards
- UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2
Software / System Requirements
- OS Required
- ArubaOS, InstantOS
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The Aruba AP-504 (EG) is an enterprise-grade indoor Wi-Fi 6 (802.11ax) access point manufactured by HPE. Designed for business networks and IoT environments, it delivers up to 1.774 Gbps aggregate throughput across dual 2.4 GHz and 5 GHz bands, supporting up to 256 wireless clients per radio with external antenna flexibility.
Frequently asked questions
What is the Aruba AP-504 (EG) Unified AP used for?
- The Aruba AP-504 is designed to provide high-density, secure Wi-Fi 6 wireless connectivity for enterprise, branch, and campus indoor networks. It also supports IoT devices through built-in Zigbee and Bluetooth Low Energy capabilities.
Does the Aruba AP-504 have built-in antennas?
- No, the AP-504 model features two RP-SMA connectors for external detachable antennas. This allows network administrators to attach specialised external antennas suited to specific coverage areas.
Does the Aruba AP-504 come with a warranty?
- Yes, it is backed by an HPE limited lifetime warranty with local South African warranty assistance and support provided directly through Server Hub.
