Aruba 9300-32D Prt2Pwr 6F2AC Sw Bdl HPE
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

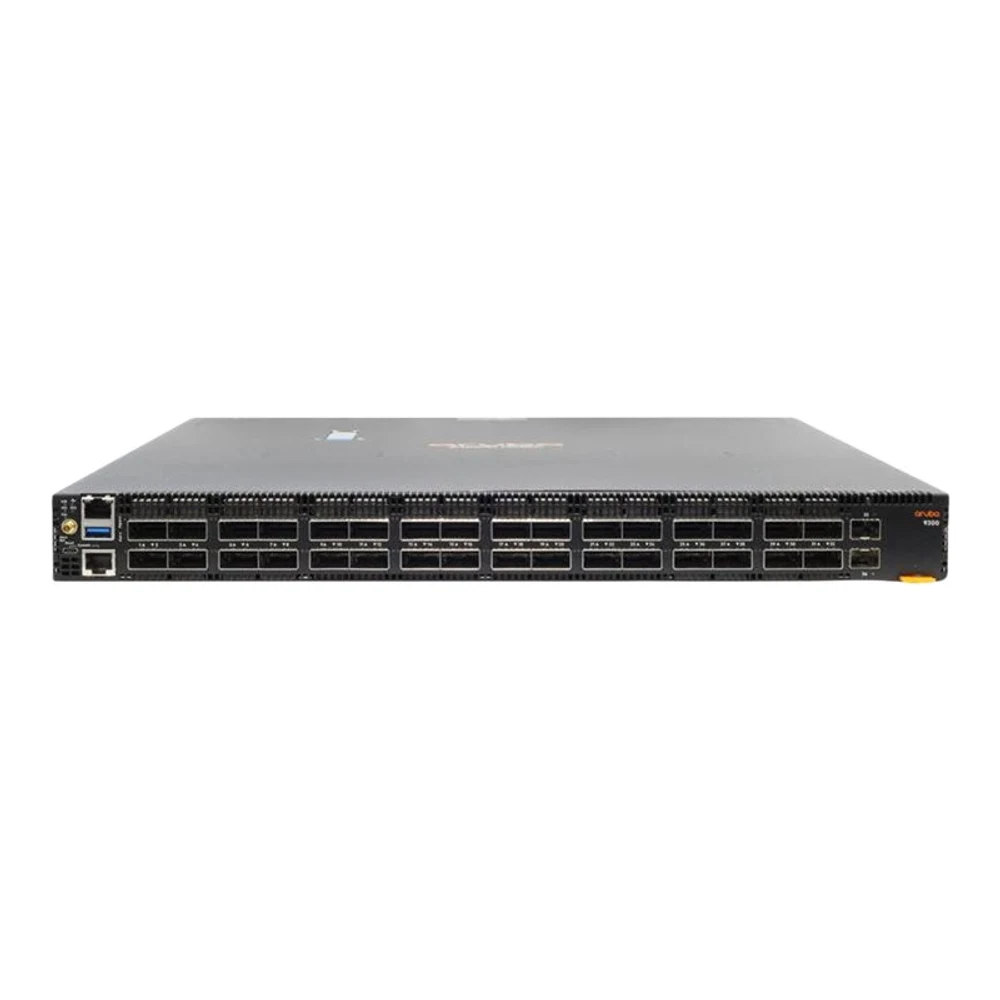

Aruba 9300-32D Prt2Pwr 6F2AC Sw Bdl HPE.
Device Type: Switch - 32 ports - L3 - Managed. Enclosure Type: Front to back airflow rack-mountable 1U. Subtype: 100 Gigabit Ethernet. Ports: 32 x 100/200/400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+. Performance: Switching capacity: 25.6 Tbps; Throughput: 5 Bpps. Routing Protocol: OSPF, BGP-4, RIP-2, BGP, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng. Remote Management Protocol: SNMP 3, SNMP 2c. Features: sFlow, Virtual Route Redundancy Protocol (VRRP) support, Data Center Bridging Exchange (DCBX) support, Bidirectional Forwarding Detection (BFD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Ethernet Ring Protection Switching (ERPS), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Cisco IOS IP Service-Level Agreements (IPSLA), Enhanced transmission selection (ETS), Virtual Switch Extension (VSX), Unidirectional Link Detection (UDLD).
Specifications
- Processor
- 1: 1.7 GHz
- RAM
- 32 GB SDRAM
Highlights
- 32 x 100/200/400 Gigabit QSFP-DD ports and 2 x 1/10 Gigabit SFP+ ports
- High performance with 25.6 Tbps switching capacity and 5 Bpps throughput
- 1U rack-mountable chassis with front-to-back airflow design
- Dual hot-plug internal power supplies with N+1 power redundancy
- Advanced Layer 3 routing including BGP, OSPF, OSPFv3, ECMP, and VXLAN
- Includes 6 fan trays and 2-post rack mounting kit
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- N+1
- Voltage Required
- AC 100-127/200-240 V (50/60 Hz)
- Power Consumption Stand by
- 210 Watt
General
- Device Type
- Switch - 32 ports - L3 - Managed
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 100 Gigabit Ethernet
- Ports
- 32 x 100/200/400 Gigabit QSFP-DD + 2 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Switching capacity: 25.6 Tbps
- Performance
- Throughput: 5 Bpps
- Routing Protocol
- OSPF, BGP-4, RIP-2, BGP, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng
- Remote Management Protocol
- SNMP 3, SNMP 2c
- Features
- sFlow, Virtual Route Redundancy Protocol (VRRP) support, Data Center Bridging Exchange (DCBX) support, Bidirectional Forwarding Detection (BFD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Ethernet Ring Protection Switching (ERPS), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Cisco IOS IP Service-Level Agreements (IPSLA), Enhanced transmission selection (ETS), Virtual Switch Extension (VSX), Unidirectional Link Detection (UDLD)
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
- Processor
- 1: 1.7 GHz
- RAM
- 32 GB SDRAM
- Flash Memory
- 128 GB
Dimensions & Weight
- Width
- 43.84 cm
- Depth
- 59 cm
- Height
- 4.35 cm
- Weight
- 11.85 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
Expansion / Connectivity
- Interfaces
- 32 x 100/200/400Gbit LAN QSFP-DD
- Interfaces
- 2 x 1/10Gbit LAN SFP+
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x console (micro-USB)
- Interfaces
- 1 x management
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 6 fan trays, 2-Post Rack Kit
- Rack Mounting Kit
- Included
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba 9300-32D is a high-performance 1U rack-mountable Layer 3 managed switch engineered for enterprise data centres and service providers. Featuring 32 high-density 100/200/400GbE QSFP-DD ports and dual 10GbE SFP+ uplinks, it delivers up to 25.6 Tbps of switching capacity with redundant hot-plug power supplies and front-to-back airflow.
Frequently asked questions
What is the Aruba 9300-32D switch used for?
- The Aruba 9300-32D is designed for high-density spine or leaf network deployments in modern enterprise data centres. With 32 QSFP-DD ports supporting speeds up to 400 Gbps, it provides massive throughput for bandwidth-intensive cloud, compute, and storage fabrics.
Does the Aruba 9300-32D bundle include power and cooling redundancy?
- Yes, this switch bundle includes two hot-plug AC power supplies configured for N+1 redundancy alongside six fan trays. It is built for continuous enterprise uptime with front-to-back airflow for standard server rack integration.
Does this switch come with a warranty?
- Yes, this HPE Aruba switch includes manufacturer warranty coverage and local South African warranty support when purchased through Server Hub.
