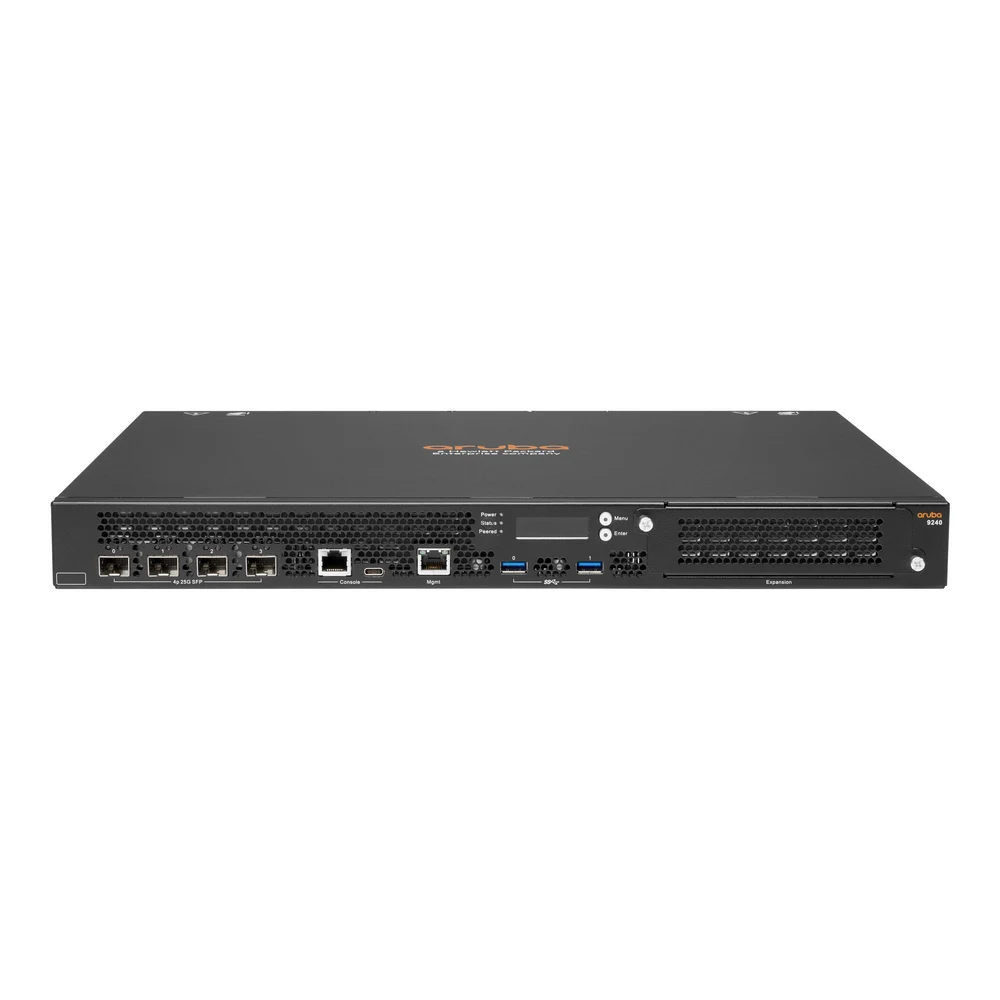

Aruba 9240 (RW) TAA Campus Gateway
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Aruba 9240 (RW) TAA Campus Gateway.
Device Type: Gateway. Height (Rack Units): 1U. Width: 44.2 cm. Depth: 39.6 cm. Height: 4.4 cm. Weight: 8.2 kg. Form Factor: Rack-mountable. Ports Qty: 4.
Specifications
Highlights
- Supports up to 2048 access points and 32000 managed devices
- Four 25Gb Ethernet SFP28 network interfaces
- Compact 1U rack-mountable form factor with 5 cooling fans
- Integrated Policy Enforcement Firewall and Quality of Service support
- TAA compliant hardware design with dual power supply capability
Networking
- Form Factor
- Rack-mountable
- Ports Qty
- 4
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- 25 Gigabit Ethernet
- Capacity
- Maximum number of access points: 2048
- Capacity
- Maximum number of managed devices: 32000
- Status Indicators
- Port status, power, status, peer node
- Features
- Quality of Service (QoS), Unified Communications, 5 fans, Policy Enforcement Firewall (PEF)
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Voltage Required
- AC 100-240 V (50 - 60 Hz)
- Power Consumption Operational
- 190 Watt
- Power Provided
- 550 Watt
General
- Device Type
- Gateway
- Height (Rack Units)
- 1U
- Width
- 44.2 cm
- Depth
- 39.6 cm
- Height
- 4.4 cm
- Weight
- 8.2 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Expansion / Connectivity
- Expansion Slots
- 1 (total) / 1 (free) x expansion slot
- Interfaces
- 4 x 25Gb Ethernet - SFP28
- Interfaces
- 2 x USB 3.0 - Type A
- Interfaces
- 1 x console - RJ-45
- Interfaces
- 1 x console - USB-C
- Interfaces
- 1 x management - RJ-45
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 1 year
- Service & Support
- Limited warranty - software application support - 90 days
Miscellaneous
- MTBF
- 185.301 hours
- Compliant Standards
- EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class B, CNS 13438, FCC Part 15 Class B, KN35, EN 55032 Class B, AS/NZS CISPR 32 Class B, KN32 Class B, UL 62368-1 Second Edition, CISPR 32 Class B, EN 55035, CAN/CSA-C22.2 No. 62368-1-14, EN 62368-1:2014 Second Edition
- TAA Compliant
- Yes
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba 9240 (RW) TAA Campus Gateway is a high-performance 1U rack-mountable network gateway engineered for large enterprise campus environments. Designed to manage up to 2,048 access points and 32,000 devices, it provides 25GbE SFP28 connectivity and integrated Policy Enforcement Firewall capabilities for organisations requiring scalable, secure wired and wireless network orchestration.
Frequently asked questions
What is the Aruba 9240 Campus Gateway used for?
- The Aruba 9240 Campus Gateway is used to manage, secure, and optimise traffic across large enterprise wired and wireless networks. It acts as a central control and policy enforcement point capable of handling up to 2,048 access points and tens of thousands of connected client devices.
What network interfaces are available on the Aruba 9240?
- This gateway is equipped with four 25 Gigabit Ethernet SFP28 ports for high-speed data uplinks and traffic routing. It also features two USB 3.0 Type A ports, dedicated management ports, and both RJ-45 and USB-C console connections.
Does this Aruba gateway come with a warranty in South Africa?
- Yes, the gateway includes standard manufacturer warranty coverage backed locally in South Africa via Server Hub. This covers parts and labour for hardware support alongside initial application software support.
