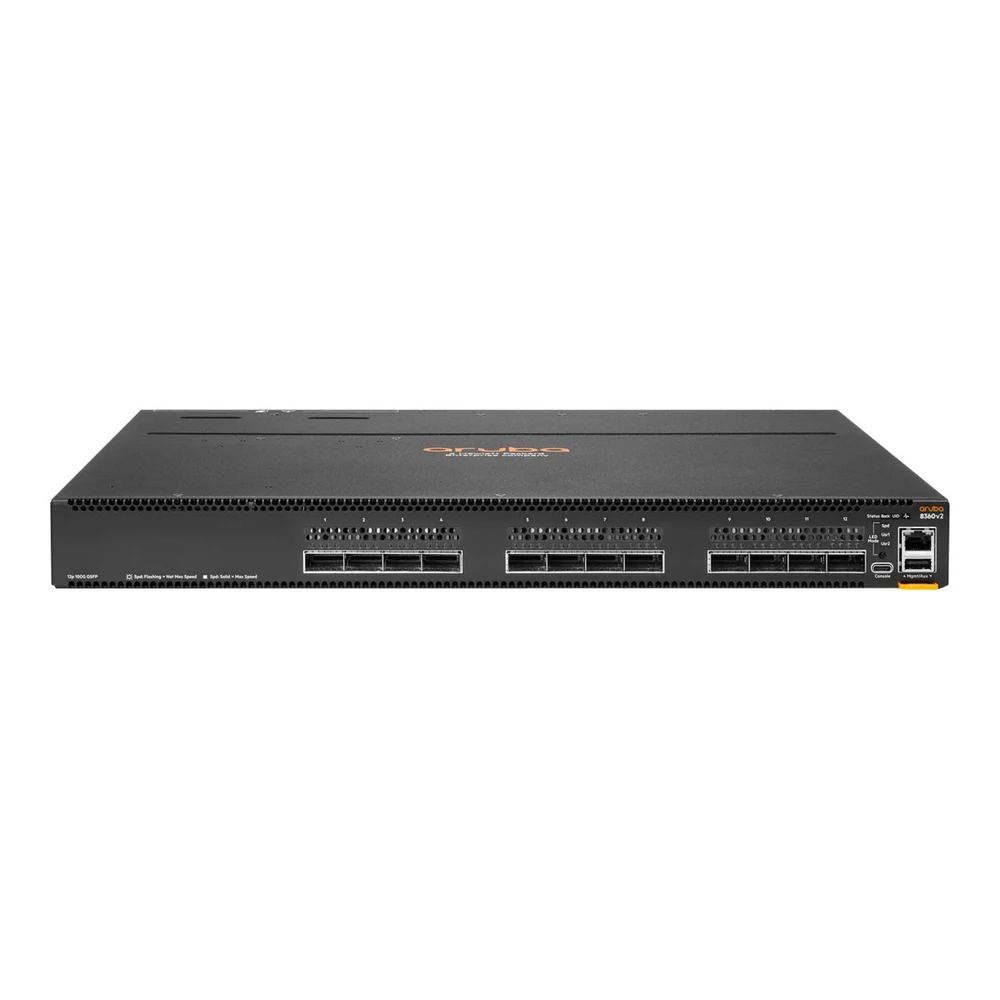

Aruba 8360-12Cv2 Prt2Pwr Bundle HPE.
Device Type: Switch - 12 ports - L3 - Managed. Enclosure Type: Front to back airflow rack-mountable 1U. Subtype: 100 Gigabit Ethernet. Ports: 12 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+. Performance: Switching capacity: 2.4 Tbps; Throughput: 2.678 Mpps. Capacity: IPv6 host table capacity: 145780; IPv4 host table capacity: 145780; IPv4 routes (Unicast): 606977; IPv6 routes (Unicast): 630784; IPv4 ACL entries (ingress): 65536; IPv6 ACL entries (ingress): 16384; MAC ACL entries (ingress): 65536; IPv4 ACL entries (egress): 8192; IPv6 ACL entries (egress): 2048; MAC ACL entries (egress): 8192; VLANs supported: 4094; IGMP groups: 7000; MLD groups: 7000; IPv4 routes (Multicast): 7000; IPv6 routes (Multicast): 7000. MAC Address Table Size: 212992 entries. Jumbo Frame Support: 9KB.
Specifications
- Processor
- 1: 1.8 GHz
- RAM
- 16 GB
Highlights
- 12 x 100GbE QSFP28 / 40GbE QSFP+ high-speed ports
- 2.4 Tbps switching capacity and 2.678 Mpps throughput
- 1U rack-mountable design with front-to-back airflow
- Dual redundant 550W hot-plug power supplies included
- Comprehensive Layer 3 routing including BGP, OSPF, and MPLS
- 16 GB RAM and 32 GB flash memory
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- N+1
- Power Provided
- 550 Watt
- Voltage Required
- AC 90-264 V (47 - 63 Hz)
General
- Device Type
- Switch - 12 ports - L3 - Managed
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 100 Gigabit Ethernet
- Ports
- 12 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
- Performance
- Switching capacity: 2.4 Tbps
- Performance
- Throughput: 2.678 Mpps
- Capacity
- IPv6 host table capacity: 145780
- Capacity
- IPv4 host table capacity: 145780
- Capacity
- IPv4 routes (Unicast): 606977
- Capacity
- IPv6 routes (Unicast): 630784
- Capacity
- IPv4 ACL entries (ingress): 65536
- Capacity
- IPv6 ACL entries (ingress): 16384
- Capacity
- MAC ACL entries (ingress): 65536
- Capacity
- IPv4 ACL entries (egress): 8192
- Capacity
- IPv6 ACL entries (egress): 2048
- Capacity
- MAC ACL entries (egress): 8192
- Capacity
- VLANs supported: 4094
- Capacity
- IGMP groups: 7000
- Capacity
- MLD groups: 7000
- Capacity
- IPv4 routes (Multicast): 7000
- Capacity
- IPv6 routes (Multicast): 7000
- MAC Address Table Size
- 212992 entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- OSPF, EGP, BGP-4, RIP-2, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, MPLS, BGP-MP, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, IP-routing, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, De
- Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
- Processor
- 1: 1.8 GHz
- RAM
- 16 GB
- Flash Memory
- 32 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 40.64 cm
- Height
- 4.4 cm
- Weight
- 8.01 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 12 x 100Gbit/40Gbit LAN
- Interfaces
- 1 x serial (console)
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x LAN RJ-45
- Interfaces
- 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 3 x fan modules
- Rack Mounting Kit
- Included
- Compliant Standards
- EMC, ICES-003 Class A, RoHS, Laser Class 1, UL 60950-1, ISO 7779, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EMC 2014/30/EU, ISO 9296, FCC CFR47 Part 15 A, CNS 13438 Class A, Directive 2014/35/EU, EN 55032:2015, CISPR 32 Class A, EN 61000-3-2:2014 Class A, CISPR 35, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, IEC 60825-1:2014 Class 1, IEC60950-1:2005, Second edition + A
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Aruba 8360-12Cv2 Prt2Pwr Bundle is a 1U managed Layer 3 enterprise switch designed for high-performance data centres and campus aggregations. Featuring 12 high-speed 100GbE/40GbE QSFP28 ports, 2.4 Tbps switching capacity, and redundant hot-plug power supplies, it delivers robust throughput and advanced routing for demanding enterprise network infrastructures.
Frequently asked questions
What is the Aruba 8360-12Cv2 switch used for?
- The Aruba 8360-12Cv2 is built for high-throughput enterprise and data centre aggregation environments. It provides high-density 100GbE/40GbE connectivity, advanced Layer 3 routing protocols, and enterprise-grade policy management.
What power and cooling configuration is included with this bundle?
- This bundle features front-to-back airflow and includes three fan modules. It is equipped with two 550W hot-plug internal power supplies configured for N+1 power redundancy.
Does this switch come with a warranty in South Africa?
- Yes, this unit comes with warranty coverage supported locally in South Africa through Server Hub. Please refer to the product specifications above for detailed manufacturer warranty terms.
