Aruba 8325-48Y8C Prt2Pwr Bdl HPE
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Aruba 8325-48Y8C Prt2Pwr Bdl HPE.
Device Type: Switch - 48 ports - L3 - Managed. Enclosure Type: Front to back airflow rack-mountable 1U. Subtype: 25 Gigabit Ethernet. Ports: 48 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 8 x 40/100 Gigabit QSFP+ / QSFP28. Performance: Switching capacity: 6.4 Tbps; Throughput: 2000 Mpps. Capacity: IPv4 host table capacity: 120000; IPv6 host table capacity: 52000; IPv4 routes (Unicast): 131072; IPv6 routes (Unicast): 32732; MAC address entries: 98304; IGMP groups: 4094; MLD groups: 4094; IPv4 routes (Multicast): 7000; IPv6 routes (Multicast): 7000. Jumbo Frame Support: 9KB. Routing Protocol: OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, Bidirectional Forwarding Detection (BFD), MLDv3, MSTP, RSTP, STP.
Specifications
- Processor
- 1: 2.2 GHz
- RAM
- 16 GB
Highlights

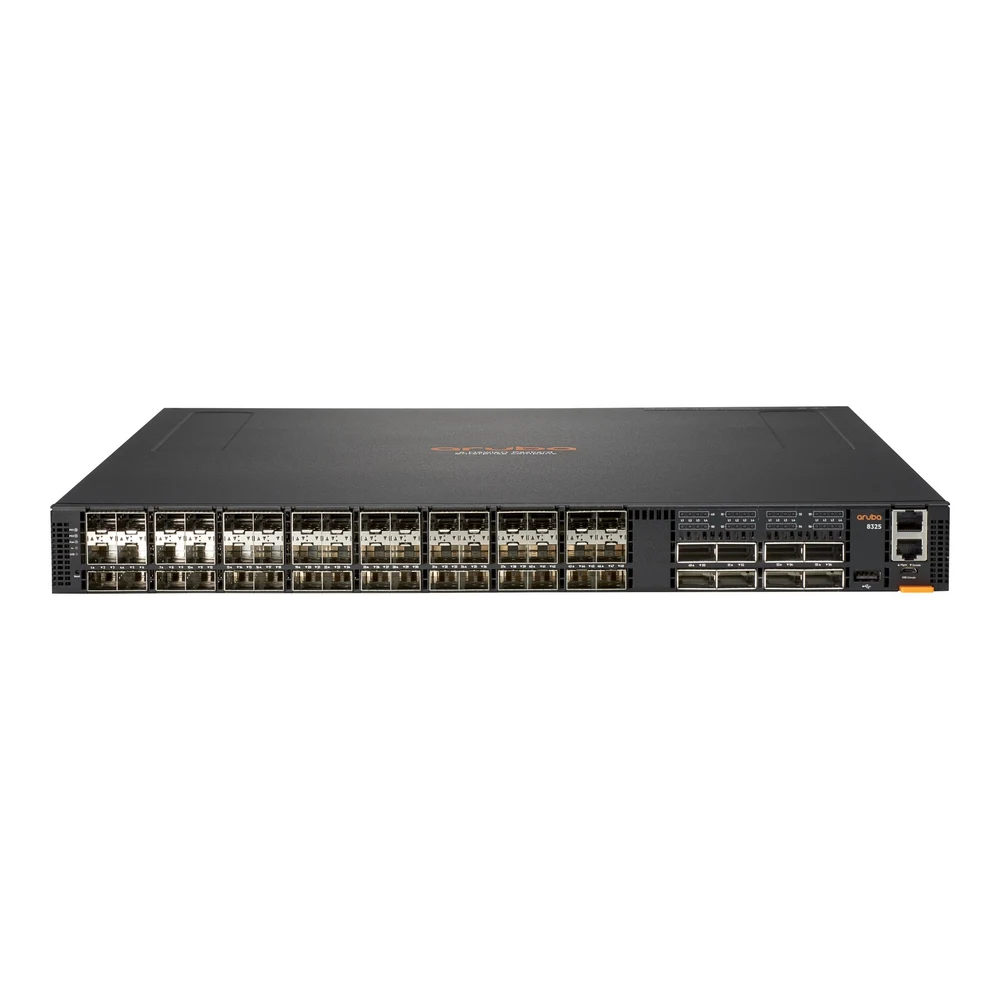

- 48 x 1/10/25GbE SFP28 and 8 x 40/100GbE QSFP28 ports
- 6.4 Tbps switching capacity with 2000 Mpps throughput
- Layer 3 dynamic routing including BGP, OSPF, and VRF-Lite

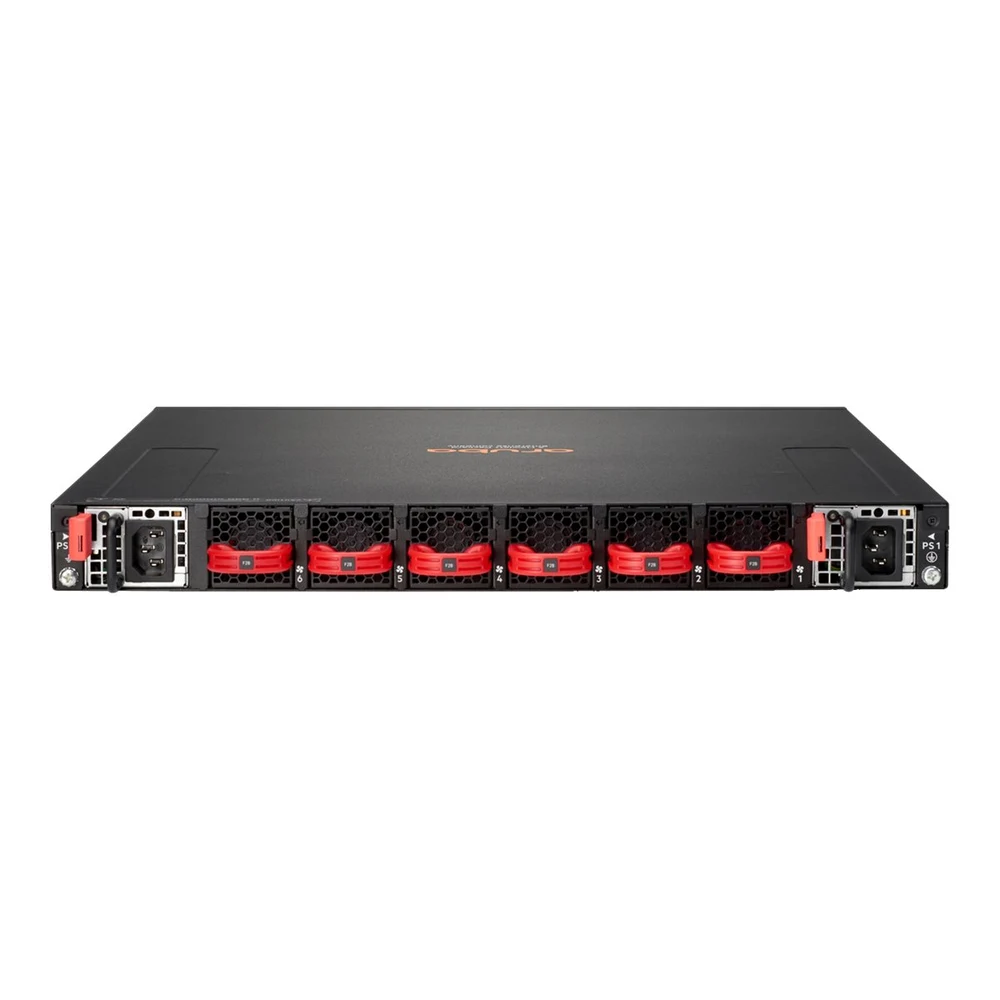

- Dual 650W redundant hot-plug power supplies with N+1 scheme
- Front-to-back airflow in a compact 1U rackmount chassis
- Integrated 64 GB SSD, 16 GB RAM, and 2.2 GHz processor
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- N+1
- Power Provided
- 650 Watt
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 550 Watt
General
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 25 Gigabit Ethernet
- Ports
- 48 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 8 x 40/100 Gigabit QSFP+ / QSFP28
- Performance
- Switching capacity: 6.4 Tbps
- Performance
- Throughput: 2000 Mpps
- Capacity
- IPv4 host table capacity: 120000
- Capacity
- IPv6 host table capacity: 52000
- Capacity
- IPv4 routes (Unicast): 131072
- Capacity
- IPv6 routes (Unicast): 32732
- Capacity
- MAC address entries: 98304
- Capacity
- IGMP groups: 4094
- Capacity
- MLD groups: 4094
- Capacity
- IPv4 routes (Multicast): 7000
- Capacity
- IPv6 routes (Multicast): 7000
- Jumbo Frame Support
- 9KB
- Routing Protocol
- OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, Bidirectional Forwarding Detection (BFD), MLDv3, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, SFTP
- Encryption Algorithm
- FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), RADSEC
- Features
- ARP support, load balancing, VLAN support, IGMP snooping, port mirroring, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Deficit Weighted Round Robin (DWRR), DHCP relay, Da
- Compliant Standards
- IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by
- Processor
- 1: 2.2 GHz
- RAM
- 16 GB
- Flash Memory
- 8 GB
- Built-in Devices
- 64 GB SSD
- Status Indicators
- Port transmission speed
Dimensions & Weight
- Width
- 43.8 cm
- Depth
- 53.6 cm
- Height
- 4.3 cm
- Weight
- 10 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95%
Expansion / Connectivity
- Interfaces
- 48 x 1/10/25Gbit LAN SFP28
- Interfaces
- 8 x 40/100Gbit LAN QSFP28
- Interfaces
- 1 x management (LAN) RJ-45
- Interfaces
- 1 x console RJ-45
- Interfaces
- 1 x console (micro-USB) Type B
- Interfaces
- 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Miscellaneous
- Included Accessories
- 6 x fans
- Compliant Standards
- RoHS, Laser Class 1, UL 60950-1, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, IEC 60825-1:2007 Class 1, EN 55032:2012 Class A, EN 61000-3-2:2014 Class A, EN 60825-1:2014, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60825-1:2014 Class 1, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013
- TAA Compliant
- Yes
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba 8325-48Y8C Prt2Pwr Bdl HPE is a high-performance 1U rack-mountable Layer 3 managed enterprise switch. Designed for data centres and campus core deployments, it delivers 48 25GbE SFP28 ports alongside 8 100GbE QSFP28 uplinks, providing 6.4 Tbps switching capacity with redundant hot-plug power.
Frequently asked questions
What is the Aruba 8325-48Y8C switch used for?
- The Aruba 8325-48Y8C is designed for top-of-rack data centre aggregation and enterprise core or spine-and-leaf networks requiring high-density 25GbE server connectivity and 100GbE uplinks.
What power redundancy does this switch bundle offer?
- This model includes two installed 650W hot-plug internal power supplies operating under an N+1 redundancy configuration to keep network traffic uninterrupted in the event of a power fault.
Does the Aruba 8325-48Y8C come with a warranty?
- Yes, this unit includes a 5-year limited hardware warranty backed by local South African support through Server Hub.
