Aruba 8325-48Y8C FB 6 F 2 PS Bdl
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.

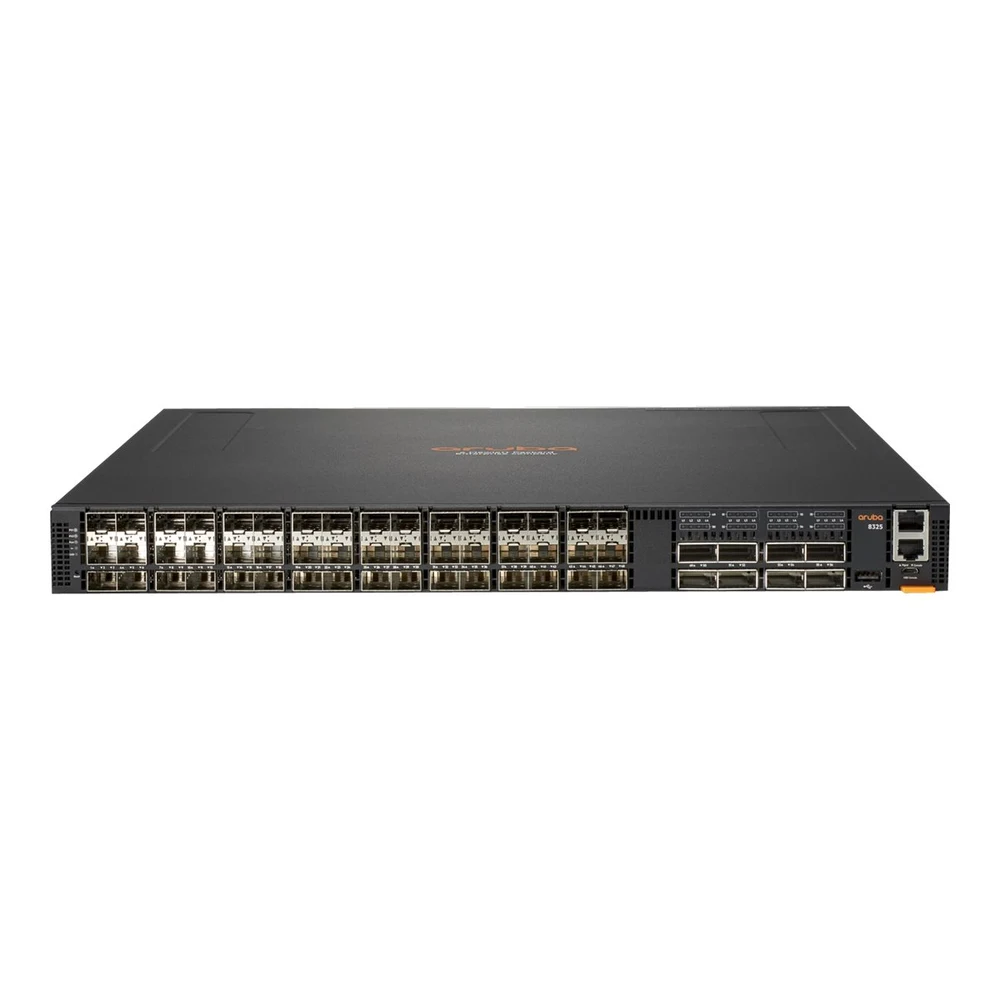

Aruba 8325-48Y8C FB 6 F 2 PS Bdl.
Device Type: Switch - 48 ports - L3 - Managed. Enclosure Type: Front to back airflow rack-mountable 1U. Subtype: 100 Gigabit Ethernet. Ports: 48 x 10/25 Gigabit SFP+ / SFP28 + 8 x 40/100 Gigabit QSFP+ / QSFP28. Performance: Switching capacity: 6.4 Tbps; Throughput: 1.905 Mpps. Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096. Jumbo Frame Support: 9KB. Routing Protocol: OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP, STP.
Specifications
Highlights
- 48 x 10/25G SFP+/SFP28 and 8 x 40/100G QSFP+/QSFP28 ports
- 6.4 Tbps switching capacity and 1.905 Mpps throughput
- Layer 3 routing with BGP, OSPF, OSPFv3, and ECMP support
- 1U rack-mountable design with front-to-back airflow
- Dual 650W hot-plug redundant power supplies and 6 fans
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- N+1
- Power Provided
- 650 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- Switch - 48 ports - L3 - Managed
- Enclosure Type
- Front to back airflow rack-mountable 1U
- Subtype
- 100 Gigabit Ethernet
- Ports
- 48 x 10/25 Gigabit SFP+ / SFP28 + 8 x 40/100 Gigabit QSFP+ / QSFP28
- Performance
- Switching capacity: 6.4 Tbps
- Performance
- Throughput: 1.905 Mpps
- Capacity
- Virtual interfaces (VLANs) per port for 802.1q: 4096
- Jumbo Frame Support
- 9KB
- Routing Protocol
- OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP, NTP
- Encryption Algorithm
- FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Routing, DHCP support, VPN support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), fan tr
- Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Dimensions & Weight
- Width
- 43.84 cm
- Depth
- 53.59 cm
- Height
- 4.32 cm
- Weight
- 10 kg
Expansion / Connectivity
- Interfaces
- 48 x 10/25Gbit LAN
- Interfaces
- 8 x 100Gbit/40Gbit LAN
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Miscellaneous
- Included Accessories
- 6 x fans
- Compliant Standards
- RoHS, WEEE
- TAA Compliant
- Yes
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Aruba 8325-48Y8C is a high-performance 1U rack-mountable Layer 3 managed switch engineered for enterprise data centres and high-density aggregation. It features 48 ports of 10/25GbE SFP28 and 8 ports of 40/100GbE QSFP28, delivering a switching capacity of 6.4 Tbps with front-to-back airflow and redundant hot-plug power supplies.
Frequently asked questions
What is the Aruba 8325-48Y8C switch used for?
- The Aruba 8325-48Y8C is designed for top-of-rack data centre deployments and enterprise core or aggregation switching. It provides high-speed 10/25GbE server connectivity alongside 40/100GbE uplinks to handle demanding network traffic.
What airflow direction does this bundle use?
- This bundle features front-to-back airflow with six included fans. It is designed to fit standard 1U server racks that require cool air intake from the front and exhaust out the rear.
Does the Aruba 8325-48Y8C come with a warranty?
- Yes, this switch includes a 5-year limited manufacturer warranty supported locally in South Africa via Server Hub.
