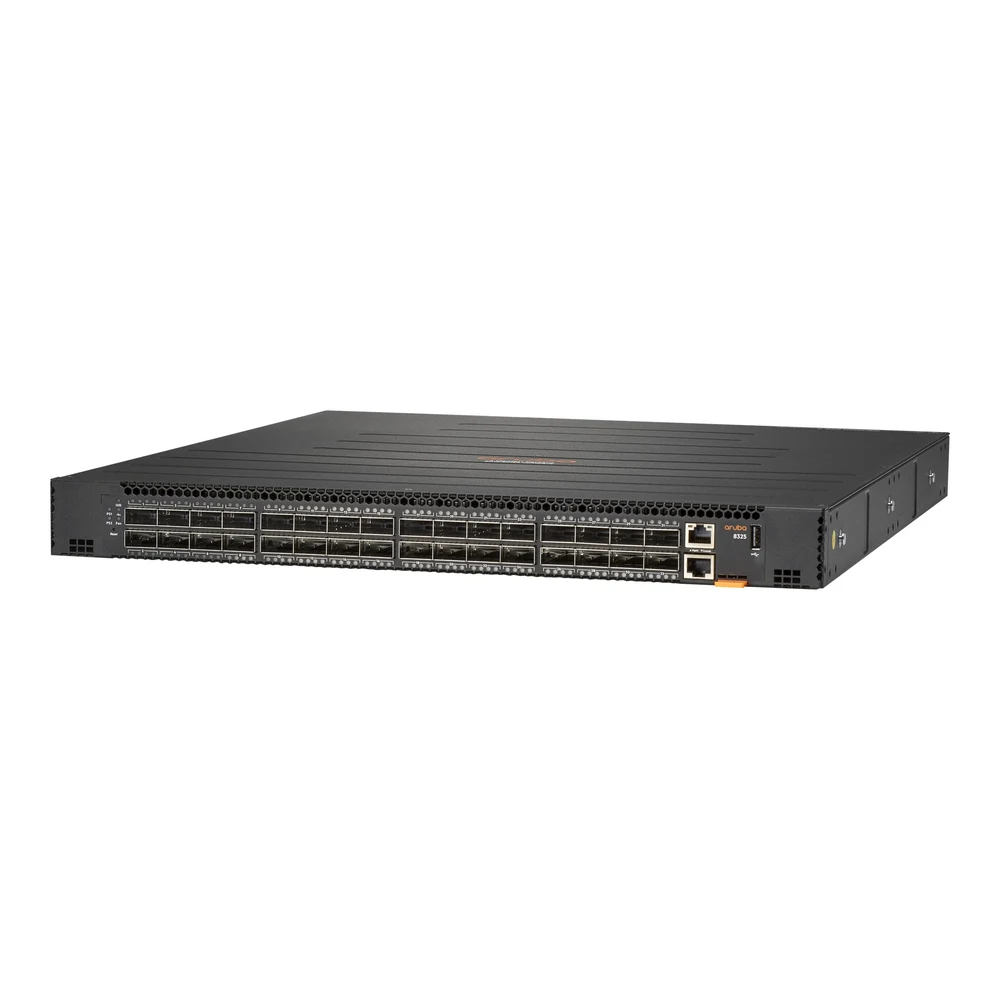

Aruba 8325-32C Pwr2Prt6F2DC Sw Bdl HPE
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Aruba 8325-32C Pwr2Prt6F2DC Sw Bdl HPE.
Device Type: Switch - 32 ports - L3 - Managed. Enclosure Type: Back to front airflow rack-mountable 1U. Subtype: 100 Gigabit Ethernet. Ports: 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+. Performance: Switching capacity: 6.4 Tbps; Throughput: 1.905 Mpps. Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096. Jumbo Frame Support: 9KB. Routing Protocol: OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP, STP.
Specifications
Highlights
- 32 x 100GbE QSFP28 / 40GbE QSFP+ ports
- 6.4 Tbps switching capacity and 1.905 Mpps throughput
- 1U rack-mountable chassis with back-to-front airflow
- Dual 850W hot-plug DC power supplies with N+1 redundancy
- Comprehensive Layer 3 routing including BGP-4, OSPF, and ECMP
- Includes 6 modular fan trays
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- N+1
- Power Provided
- 850 Watt
- Voltage Required
- DC 48 V
General
- Device Type
- Switch - 32 ports - L3 - Managed
- Enclosure Type
- Back to front airflow rack-mountable 1U
- Subtype
- 100 Gigabit Ethernet
- Ports
- 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+
- Performance
- Switching capacity: 6.4 Tbps
- Performance
- Throughput: 1.905 Mpps
- Capacity
- Virtual interfaces (VLANs) per port for 802.1q: 4096
- Jumbo Frame Support
- 9KB
- Routing Protocol
- OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv6 routing, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP, NTP
- Encryption Algorithm
- FIPS 140-2
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Routing, DHCP support, VPN support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), fan tr
- Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 47.3 cm
- Height
- 4.395 cm
- Weight
- 10.87 kg
Expansion / Connectivity
- Interfaces
- 32 x 100Gbit/40Gbit LAN
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- 6 fan trays
- Compliant Standards
- RoHS, WEEE
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba 8325-32C from HPE is a 1U rack-mountable Layer 3 managed network switch designed for enterprise data centre and high-density aggregation environments. It features 32 ports supporting 100GbE QSFP28 or 40GbE QSFP+ transceivers, delivering a massive 6.4 Tbps switching capacity, back-to-front airflow, and dual redundant hot-pluggable DC power supplies.
Frequently asked questions
What is the HPE Aruba 8325-32C switch used for?
- The HPE Aruba 8325-32C is designed for high-density core, spine-and-leaf, and data centre aggregation deployments. With 32 ports of 100GbE/40GbE connectivity and 6.4 Tbps switching capacity, it provides the throughput and low latency required for intensive enterprise network workloads.
What power and cooling configuration is included with this model?
- This specific bundle comes equipped with two 850W hot-pluggable 48V DC power supplies for N+1 power redundancy. Cooling is managed by six included fan trays configured for back-to-front rack airflow.
Does the switch come with a warranty in South Africa?
- Yes, the Aruba 8325-32C comes with limited lifetime warranty coverage supported locally in South Africa via Server Hub. Purchases are billed in South African Rand (ZAR) with reliable local technical support.
