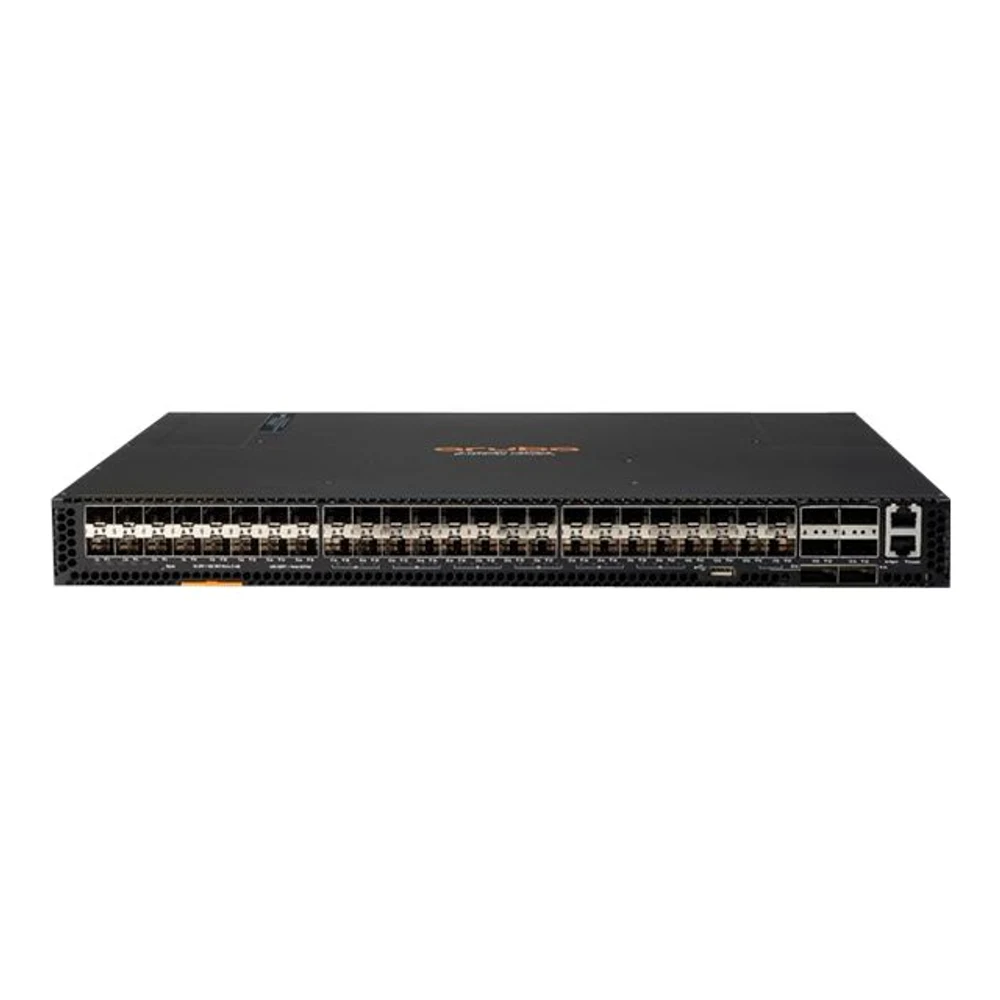

Aruba 8320 48 10/6 40 X472 5 2 Bdl
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Aruba 8320 48 10/6 40 X472 5 2 Bdl.
Device Type: Switch - 48 ports - L3 - Managed - with 2 x Aruba X371 400W AC Power Supply, 5 x Aruba X721 Front-to-Back Fan, Aruba X472 2-post Rack Kit. Enclosure Type: Rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+. Performance: Switching capacity: 2.5 Tbps; Forwarding performance: 1.905 Mpps. Capacity: Virtual interfaces (VLANs) per port for 802.1q: 4096. Jumbo Frame Support: 9KB. Routing Protocol: OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP.
Specifications
Highlights
- 48 x 10Gb SFP+ and 6 x 40Gb QSFP+ network ports
- 2.5 Tbps switching capacity with 1.905 Mpps forwarding performance
- Layer 3 routing support including OSPF, VRRP, ECMP, and IPv6
- Includes 2 x 400W hot-plug power supplies with 1+1 redundancy
- 5 x hot-swappable front-to-back airflow fan modules and 2-post rack kit
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Power Provided
- 400 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- Switch - 48 ports - L3 - Managed - with 2 x Aruba X371 400W AC Power Supply, 5 x Aruba X721 Front-to-Back Fan, Aruba X472 2-post Rack Kit
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+
- Performance
- Switching capacity: 2.5 Tbps
- Performance
- Forwarding performance: 1.905 Mpps
- Capacity
- Virtual interfaces (VLANs) per port for 802.1q: 4096
- Jumbo Frame Support
- 9KB
- Routing Protocol
- OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP
- Remote Management Protocol
- SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SFTP
- Encryption Algorithm
- FIPS 140-2
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- VPN support, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, Bridge protocol data unit (BPDU), Multi-Chassis
- Compliant Standards
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX
Dimensions & Weight
- Width
- 44.2 cm
- Depth
- 50.55 cm
- Height
- 4.32 cm
- Weight
- 9.4 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 10Gbit LAN SFP+
- Interfaces
- 6 x 40Gbit LAN QSFP+
- Interfaces
- 1 x serial RJ-45
- Interfaces
- 1 x console (micro-USB)
- Interfaces
- 1 x RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, UL 60950-1, WEEE, AS/NZS, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 5, Directive 2014/35/EU, EN 55032:2015, IEC 60825-1:2007 Class 1, CISPR 32:2015 Class A, CISPR 32 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12
- TAA Compliant
- Yes
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE Aruba 8320 is a high-performance 1U rack-mountable Layer 3 managed enterprise switch featuring 48 10GbE SFP+ ports and 6 40GbE QSFP+ uplinks. Designed for demanding data centres and campus core aggregation, it delivers 2.5 Tbps switching capacity, dual redundant 400W hot-plug power supplies, and front-to-back cooling fans.
Frequently asked questions
What is included in the Aruba 8320 switch bundle?
- This bundle includes the 1U rack-mountable Aruba 8320 switch chassis, two Aruba X371 400W AC power supplies for 1+1 power redundancy, five Aruba X721 front-to-back fan modules, and an Aruba X472 2-post rack mounting kit.
What network port configuration does the Aruba 8320 offer?
- The switch is equipped with 48 10-Gigabit SFP+ ports for server or downstream switch connections and 6 high-speed 40-Gigabit QSFP+ ports for aggregation and uplinks. It also features dedicated RJ-45 and micro-USB console management interfaces.
Does this Aruba 8320 switch come with a warranty?
- Yes, it is covered by a 5-year limited manufacturer warranty. South African customers receive reliable order fulfilment and local warranty assistance directly through Server Hub.
