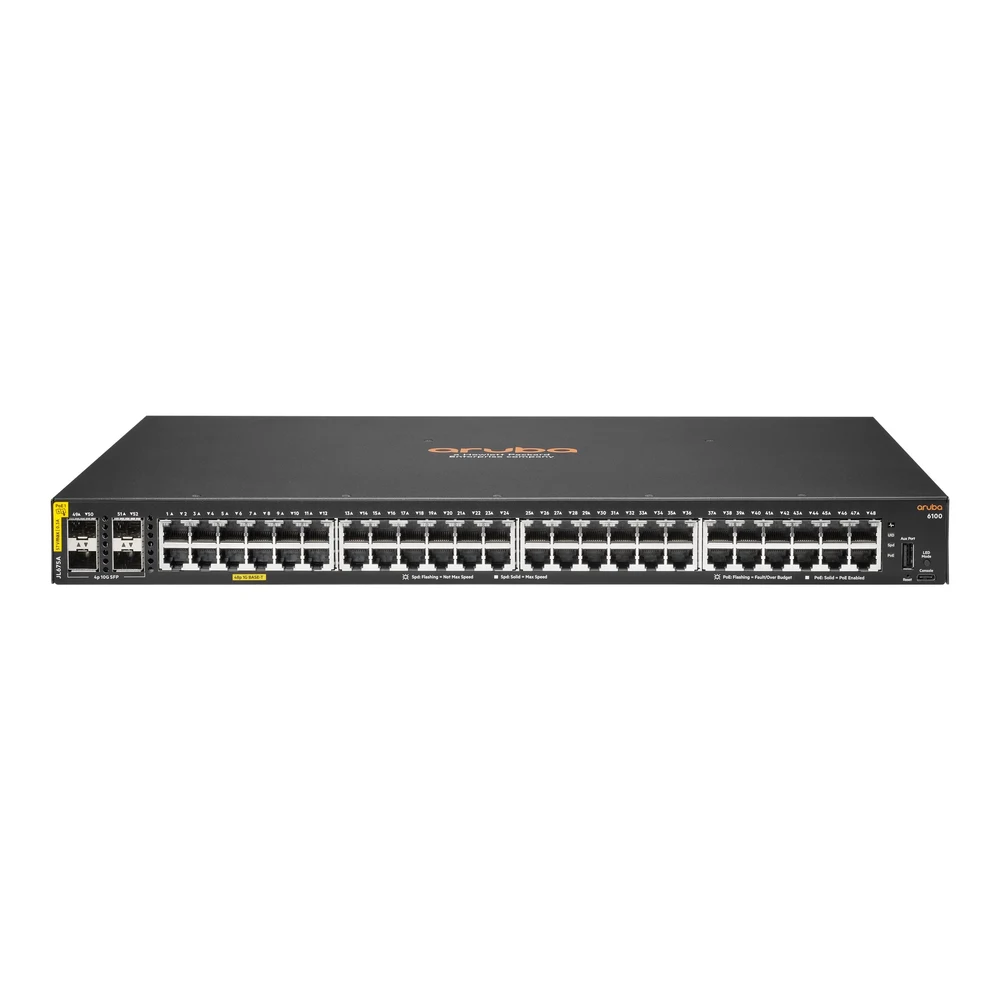

Aruba 6100 48G CL4 4SFP+ Swch
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Aruba 6100 48G CL4 4SFP+ Swch.
Device Type: Switch - 52 ports - Managed. Enclosure Type: Side to side airflow rack-mountable 1U. Subtype: 10 Gigabit Ethernet. Ports: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+. Power Over Ethernet (PoE): PoE+. PoE Budget: 370 W. Performance: Switching capacity: 176 Gbps; Throughput: 98.6 µs; Latency (1 Gbps): 1.9 µs; Latency (10 Gbps): 1.8 µs. Capacity: Switched virtual interfaces (SVIs): 16; ARP entries: 1024; IPv4 routes (Unicast): 512; IPv6 routes (Unicast): 512; IGMP groups: 512; MLD groups: 512; IPv4 ACL entries (ingress): 256; IPv6 ACL entries (ingress): 128; MAC ACL entries (ingress): 256.
Specifications
- Processor
- 1 x ARM A9: 1.016 GHz
- RAM
- 4 GB DDR3 SDRAM
Highlights
- 48 Gigabit Ethernet RJ-45 PoE+ ports with 370 W total budget
- 4 high-speed 1G/10G SFP+ uplink ports
- 176 Gbps switching capacity for high-throughput networking
- 1U rack-mountable enclosure with side-to-side airflow
- Managed capabilities including VLAN, sFlow, ACLs, and IPv6 support
Power
- Power Device
- Internal power supply
- Power Provided
- 500 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 30.6 Watt
General
- Device Type
- Switch - 52 ports - Managed
- Enclosure Type
- Side to side airflow rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 176 Gbps
- Performance
- Throughput: 98.6 µs
- Performance
- Latency (1 Gbps): 1.9 µs
- Performance
- Latency (10 Gbps): 1.8 µs
- Capacity
- Switched virtual interfaces (SVIs): 16
- Capacity
- ARP entries: 1024
- Capacity
- IPv4 routes (Unicast): 512
- Capacity
- IPv6 routes (Unicast): 512
- Capacity
- IGMP groups: 512
- Capacity
- MLD groups: 512
- Capacity
- IPv4 ACL entries (ingress): 256
- Capacity
- IPv6 ACL entries (ingress): 128
- Capacity
- MAC ACL entries (ingress): 256
- MAC Address Table Size
- 8192 entries
- Routing Protocol
- IGMPv2, IGMPv3
- Encryption Algorithm
- SSL
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED
- Compliant Standards
- IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
- Processor
- 1 x ARM A9: 1.016 GHz
- RAM
- 4 GB DDR3 SDRAM
- Flash Memory
- 16 GB
Dimensions & Weight
- Width
- 44.2 cm
- Depth
- 30.48 cm
- Height
- 4.39 cm
- Weight
- 5.02 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Humidity Range Storage
- 15 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 10/100/1000 Base-T RJ-45 PoE+
- Interfaces
- 4 x 1/10Gbit LAN SFP+
- Interfaces
- 1 x USB-C console
- Interfaces
- 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Compliant Standards
- FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The Aruba 6100 48G CL4 4SFP+ is a 1U rack-mountable 52-port managed switch built for enterprise branch offices and campus networks. It delivers 48 Gigabit Ethernet PoE+ ports backed by a 370 W power budget and four 10G SFP+ uplink slots, providing 176 Gbps switching capacity for reliable, high-speed device connectivity.
Frequently asked questions
What is the Aruba 6100 48G CL4 4SFP+ switch used for?
- This managed switch is engineered to connect and power network endpoints such as wireless access points, IP cameras, and VoIP phones across enterprise and branch deployments. With 48 Gigabit access ports and four 10GbE SFP+ uplinks, it delivers high-performance aggregation and access-layer switching.
How much PoE power does this Aruba 6100 model deliver?
- The switch provides Class 4 PoE+ across its 48 Gigabit Ethernet ports with a total power budget of 370 W. This enables administrators to power compatible network devices directly through standard RJ-45 cabling without requiring separate power adapters.
Does the switch include a warranty in South Africa?
- Yes, purchases made through Server Hub include local South African warranty support. The hardware itself also carries HPE's limited lifetime warranty for long-term operational assurance.
