SPT-C6D44147019A90

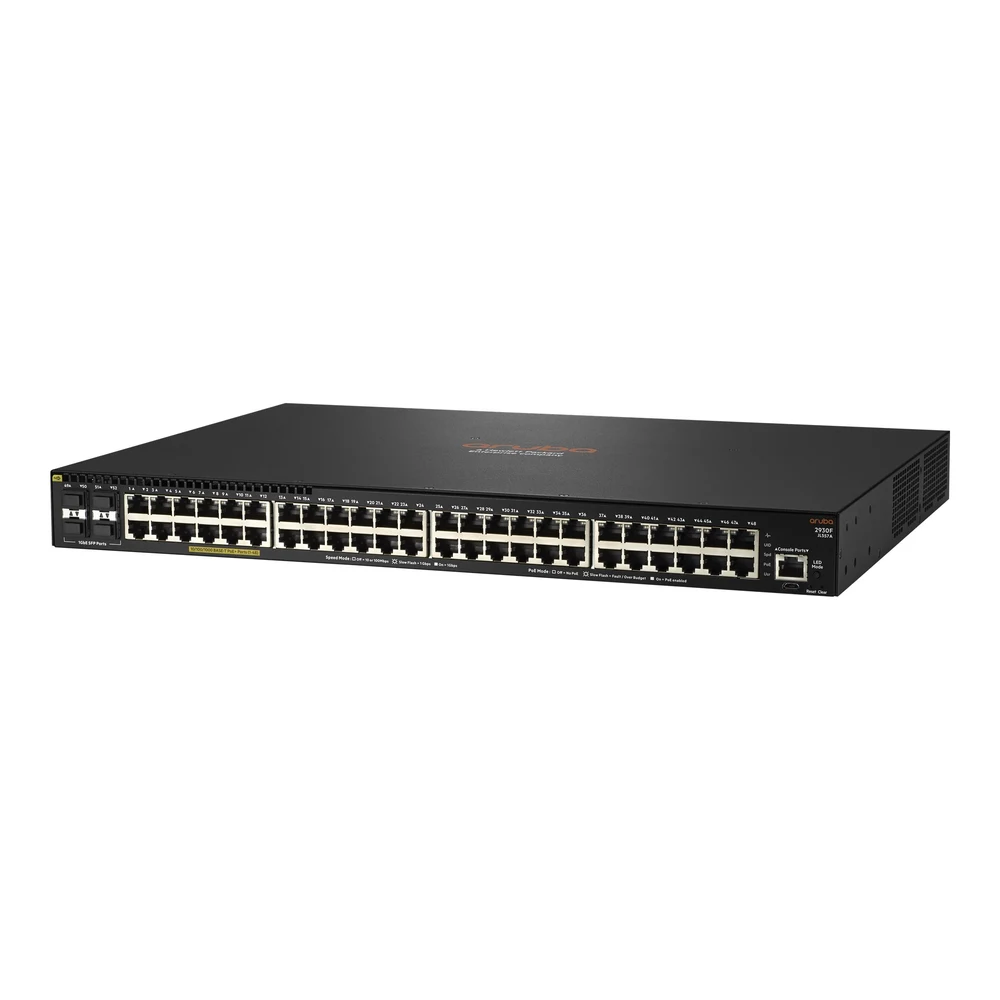

Aruba 2930F 48GPoE+4SFP 740W Swch
R 51 120
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
Aruba 2930F 48GPoE+4SFP 740W Swch.
Device Type: Switch - 48 ports - L3 - Managed - stackable. Enclosure Type: Rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink). Power Over Ethernet (PoE): PoE+. PoE Budget: 740 W. Performance: Throughput: 77.4 Mpps; Switching capacity: 104 Gbps; Latency (1 Gbps): 3.8 µs. Capacity: Jumbo frame size: 9220; IPv4 routing table entries: 10000; IPv6 routing table entries: 5000.
Specifications
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
Highlights
- 48 x Gigabit RJ-45 PoE+ ports with 740 W total power budget
- 4 dedicated Gigabit SFP uplink ports
- 104 Gbps switching capacity and 77.4 Mpps throughput
- Layer 3 routing support including OSPF, RIP, and static IP routing
- 1U rack-mountable managed stackable design
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Power Provided
- 459 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 48.6 Watt
- 80 PLUS Certification
- 80 PLUS Silver
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Throughput: 77.4 Mpps
- Performance
- Switching capacity: 104 Gbps
- Performance
- Latency (1 Gbps): 3.8 µs
- Capacity
- Jumbo frame size: 9220
- Capacity
- IPv4 routing table entries: 10000
- Capacity
- IPv6 routing table entries: 5000
- MAC Address Table Size
- 32K entries
- Routing Protocol
- OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
- Encryption Algorithm
- MD5, SSL
- Authentication Method
- RADIUS, PAP, CHAP, TACACS, TACACS+
- Features
- Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
- Flash Memory
- 4 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 30.42 cm
- Height
- 4.39 cm
- Weight
- 4.46 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 PoE+
- Interfaces
- 4 x Gigabit LAN SFP
- Interfaces
- 1 x serial (console)
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Installed Modules Qty (Max)
- 0 (installed) / 4 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
- Compliant Standards
- CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Software / System Requirements
- Software Included
- Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE Aruba 2930F 48G PoE+ 4SFP (740W) is a 1U rack-mountable Layer 3 managed Gigabit Ethernet switch designed for enterprise edge, branch offices, and SMB networks. Delivering 48 PoE+ Gigabit ports with a 740 W power budget, 4 SFP uplinks, and a 104 Gbps switching capacity, it provides high-density device connectivity and robust routing capabilities.
Frequently asked questions
What is the HPE Aruba 2930F 48G PoE+ switch used for?
- This switch is designed for enterprise edge, campus, and branch deployments needing high-density network connectivity and power for networked devices. With 48 Gigabit PoE+ ports and a 740 W budget, it can power access points, IP cameras, and VoIP phones while handling Layer 3 routing.
What uplink capabilities does this switch provide?
- The switch includes four dedicated Gigabit SFP ports for high-speed fibre or copper uplink connections to core switches and data centres. These uplinks ensure reliable aggregate bandwidth and network segmentation without sacrificing any of the 48 copper Gigabit access ports.
Does this Aruba switch come with a warranty in South Africa?
- Yes, this switch is backed by local South African warranty support when purchased through Server Hub. You can order with confidence, knowing local assistance and service are available.
