SPT-C909983D3FD2D5
Aruba 2930F 24G PoE+ 4SFP Swch
R 20 940
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1

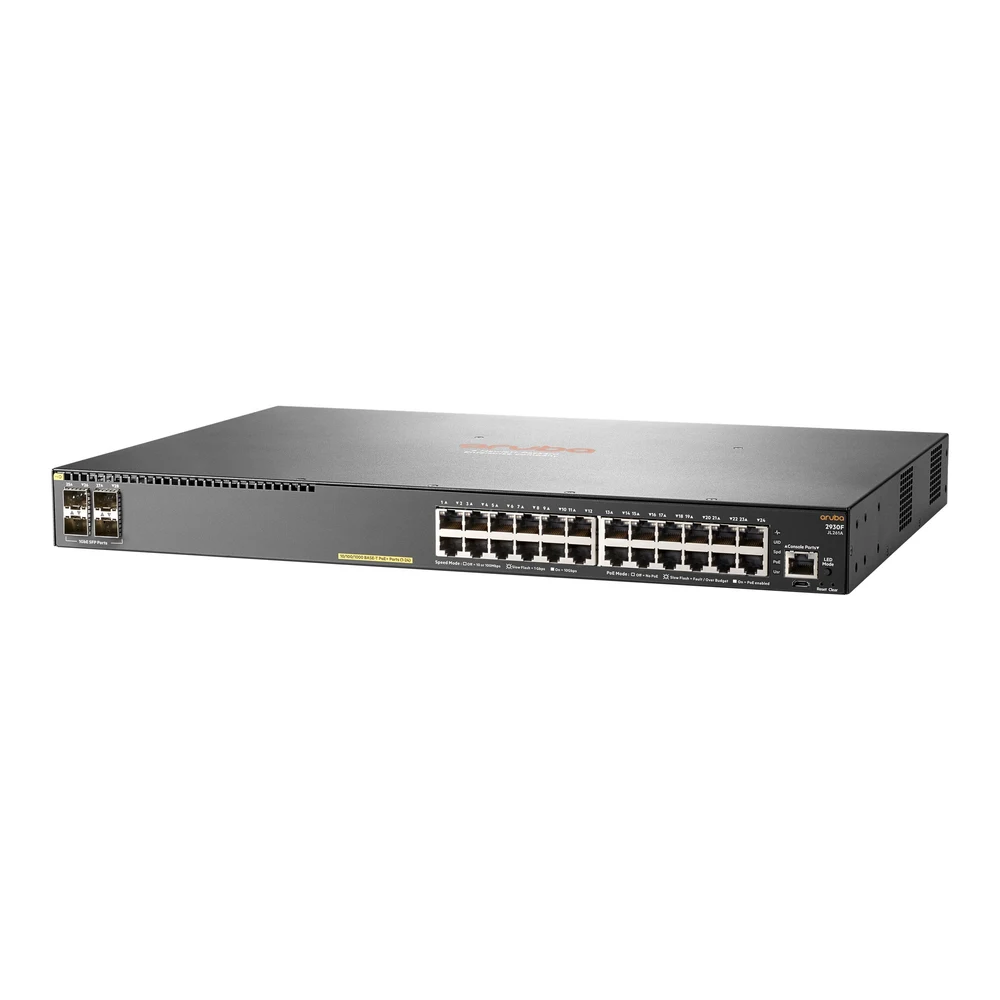

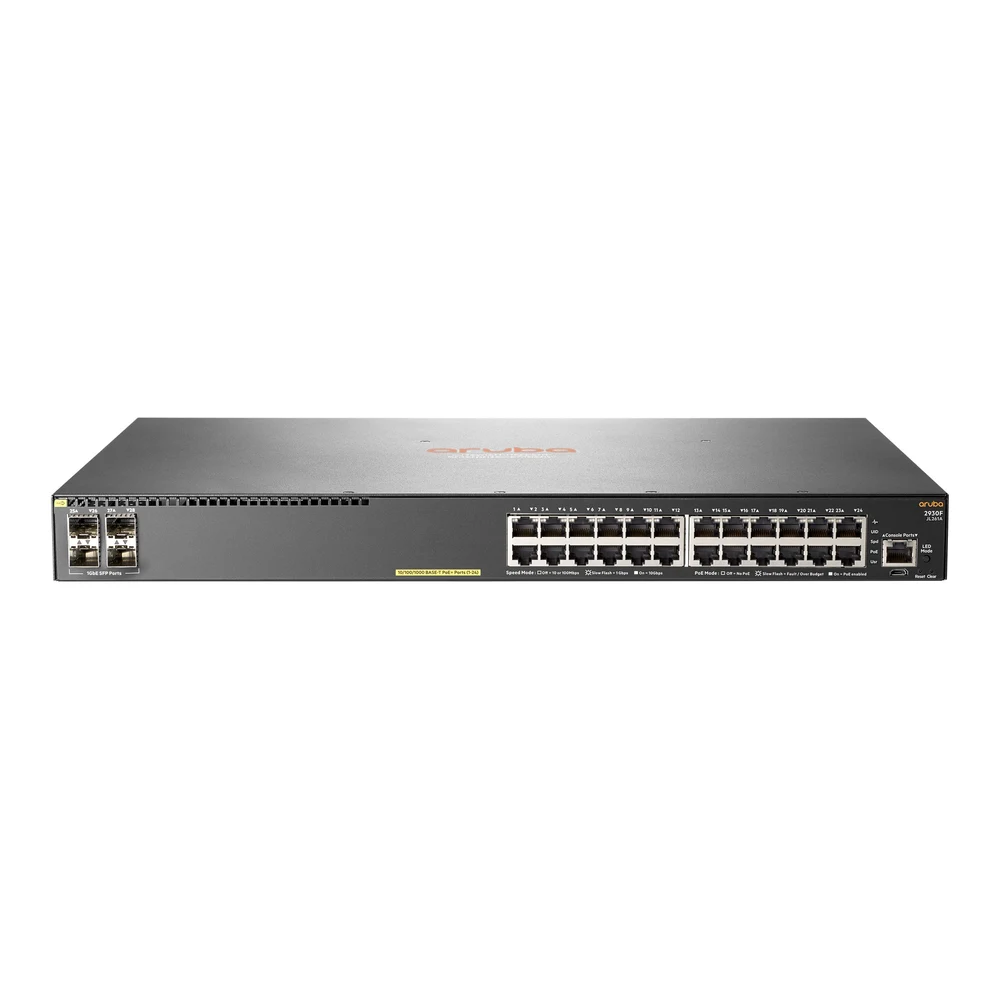

Aruba 2930F 24G PoE+ 4SFP Swch.
Device Type: Switch - 24 ports - L3 - Managed - stackable. Enclosure Type: Rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink). Power Over Ethernet (PoE): PoE+. PoE Budget: 370 W. Performance: Throughput: 41.7 Mpps; Switching capacity: 56 Gbps; Latency (1 Gbps): 3.8 µs. Capacity: Jumbo frame size: 9220; IPv4 routing table entries: 10000; IPv6 routing table entries: 5000.
Specifications
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
Highlights
- 24 x 10/100/1000Base-T PoE+ RJ-45 ports with 370 W power budget
- 4 x dedicated Gigabit SFP uplink ports for fibre expansion
- 56 Gbps switching capacity with up to 41.7 Mpps throughput
- Layer 3 routing support including OSPF, RIP, BGP, and static IP
- Compact 1U rack-mountable chassis with 80 PLUS Silver internal power supply
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Voltage Required
- AC 120/230 V
- 80 PLUS Certification
- 80 PLUS Silver
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Throughput: 41.7 Mpps
- Performance
- Switching capacity: 56 Gbps
- Performance
- Latency (1 Gbps): 3.8 µs
- Capacity
- Jumbo frame size: 9220
- Capacity
- IPv4 routing table entries: 10000
- Capacity
- IPv6 routing table entries: 5000
- MAC Address Table Size
- 32K entries
- Routing Protocol
- OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
- Encryption Algorithm
- MD5, SSL
- Authentication Method
- RADIUS, PAP, CHAP, TACACS, TACACS+
- Features
- Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
- Flash Memory
- 4 GB
Dimensions & Weight
- Width
- 44.25 cm
- Depth
- 30.42 cm
- Height
- 4.39 cm
- Weight
- 3.9 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 90% (non-condensing)
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+
- Interfaces
- 4 x Gigabit LAN SFP
- Interfaces
- 1 x serial (console)
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Installed Modules Qty (Max)
- 0 (installed) / 4 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Included Accessories
- Mounting screws, 4 mounting ears, 4 bumper feet, cable tie
- Compliant Standards
- CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Software / System Requirements
- Software Included
- Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE Aruba 2930F 24G PoE+ 4SFP is a managed Layer 3 Gigabit Ethernet switch built for enterprise branch offices and campus networks. Featuring 24 PoE+ Gigabit ports with a 370W power budget and 4 dedicated SFP uplink ports, it delivers 56 Gbps switching capacity and advanced routing for connected access points, VoIP systems, and networked devices.
Frequently asked questions
What is the HPE Aruba 2930F 24G PoE+ switch used for?
- This switch provides managed Layer 3 access connectivity for enterprise networks, SMBs, and branch deployments. With 24 Gigabit PoE+ ports and a 370 W power budget, it delivers power and network access to connected endpoints such as wireless access points, IP cameras, and VoIP phones.
Does this switch support optical uplink connections?
- Yes, the Aruba 2930F includes 4 dedicated Gigabit SFP transceiver slots alongside its 24 Ethernet ports. These SFP ports facilitate high-speed fibre uplinks to core switches and aggregation layers across your facility.
Does it come with a warranty in South Africa?
- Yes, purchases through Server Hub come backed by local South African warranty and support. Pricing is listed directly in ZAR with reliable domestic dispatch.
