SPT-FBCA8AACF08D90

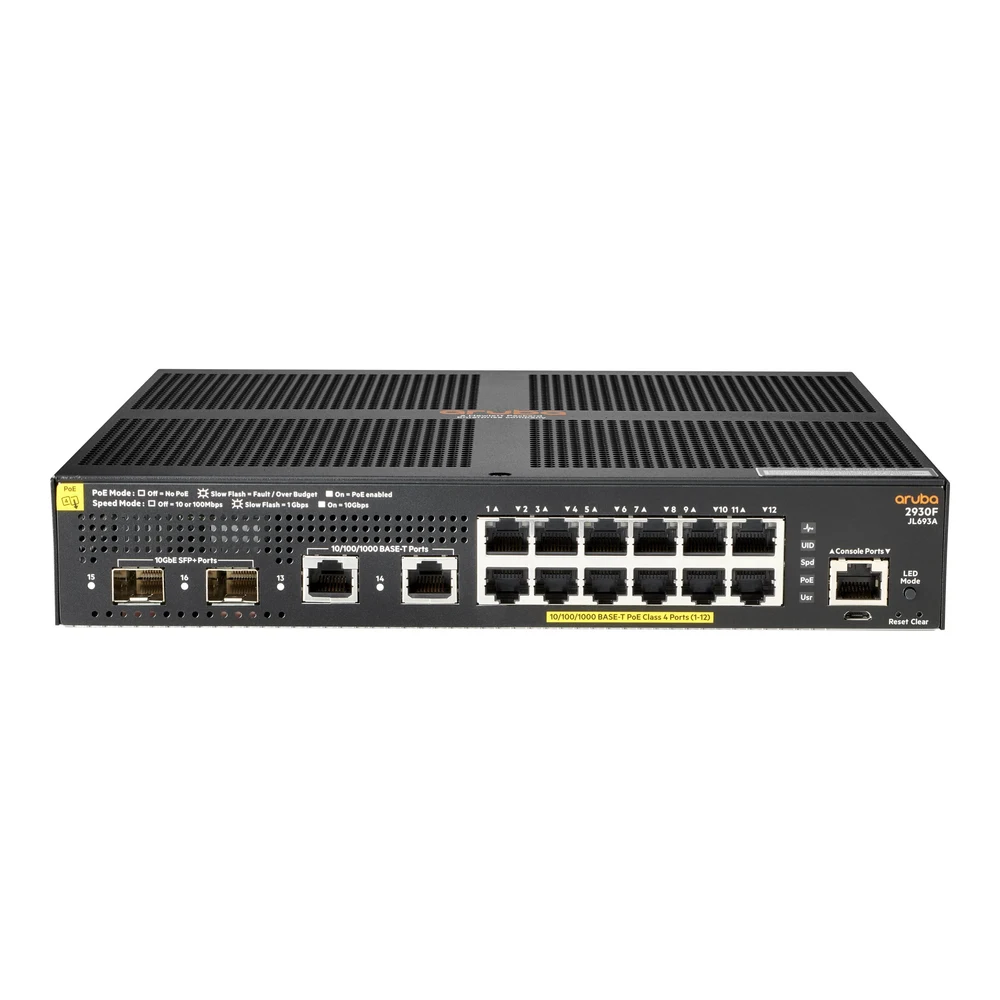

Aruba 2930F 12G PoE+ Swch
R 18 040
Available to order
3–7 day deliveryNew: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
Quantity
1
Aruba 2930F 12G PoE+ Swch.
Device Type: Switch - 12 ports - L3 - Managed - stackable. Enclosure Type: Rack-mountable 1U. Subtype: Gigabit Ethernet. Ports: 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000. Power Over Ethernet (PoE): PoE+. PoE Budget: 139 W. Performance: Throughput: 41.7 Mpps; Switching capacity: 68 Gbps; Latency (1 Gbps): 3.8 µs; Latency (10 Gbps): 1.6 µs. Capacity: Jumbo frame size: 9220; IPv4 routing table entries: 2000; IPv6 routing table entries: 1000.
Specifications
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
Highlights
- 12 x Gigabit PoE+ ports with a 139 W total power budget
- 2 x 1G/10G SFP+ uplink ports and 2 x standard Gigabit RJ-45 ports
- Layer 3 routing capabilities including OSPF, RIP, and static IP routing
- 68 Gbps switching capacity and 41.7 Mpps throughput
- Compact 1U rack-mountable managed stackable design
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Voltage Required
- AC 120/230 V (50/60 Hz)
General
- Device Type
- Switch - 12 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 139 W
- Performance
- Throughput: 41.7 Mpps
- Performance
- Switching capacity: 68 Gbps
- Performance
- Latency (1 Gbps): 3.8 µs
- Performance
- Latency (10 Gbps): 1.6 µs
- Capacity
- Jumbo frame size: 9220
- Capacity
- IPv4 routing table entries: 2000
- Capacity
- IPv6 routing table entries: 1000
- MAC Address Table Size
- 32K entries
- Routing Protocol
- OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
- Encryption Algorithm
- MD5, SSL
- Authentication Method
- RADIUS, PAP, CHAP, TACACS, TACACS+
- Features
- Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- 1 x ARM Cortex-A9: 1.016 GHz
- RAM
- 1 GB DDR3 SDRAM
- Flash Memory
- 4 GB
Dimensions & Weight
- Width
- 25.4 cm
- Depth
- 25.4 cm
- Height
- 4.39 cm
- Weight
- 2.2 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 95% (non-condensing)
Expansion / Connectivity
- Interfaces
- 12 x 1000Base-T RJ-45 PoE+
- Interfaces
- 2 x Gigabit / 10Gbit LAN SFP+
- Interfaces
- 1 x serial (console)
- Interfaces
- 2 x 1000Base-T RJ-45
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Installed Modules Qty (Max)
- 0 (installed) / 2 (max)
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Miscellaneous
- Compliant Standards
- CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Software / System Requirements
- Software Included
- Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center
Related Products
Apple
iPhone 17E Silicone Case with MagSafe - Black
3–7 day delivery
R 1 220Available
Apple
Apple Power Adapter Extension Cable
3–7 day delivery
R 459Available
rct
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
3–7 day delivery
R 260
zebra
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
Ships in 10–15 business days
R 3 920Available
The HPE Aruba 2930F 12G PoE+ is a compact, 1U rack-mountable Layer 3 managed switch engineered for enterprise branch offices and small network deployments. It delivers 12 Gigabit PoE+ ports with a 139 W power budget, two standard Gigabit ports, and two high-speed 1G/10G SFP+ uplinks for resilient edge connectivity.
Frequently asked questions
What is the Aruba 2930F 12G PoE+ switch used for?
- The Aruba 2930F 12G PoE+ is designed for enterprise edge and branch office networks requiring secure Layer 3 routing and Power over Ethernet. It powers devices such as IP phones, surveillance cameras, and wireless access points directly over network cabling.
What uplink connectivity does this switch provide?
- This switch features two dedicated 1 Gigabit / 10 Gigabit SFP+ uplink ports for high-speed fibre connections back to core switches or servers. It also includes two additional standard 10/100/1000Base-T RJ-45 network ports.
Does the switch come with a warranty in South Africa?
- Yes, orders purchased through Server Hub include local South African warranty support. This ensures your enterprise hardware is backed by reliable domestic service and replacement processes.
