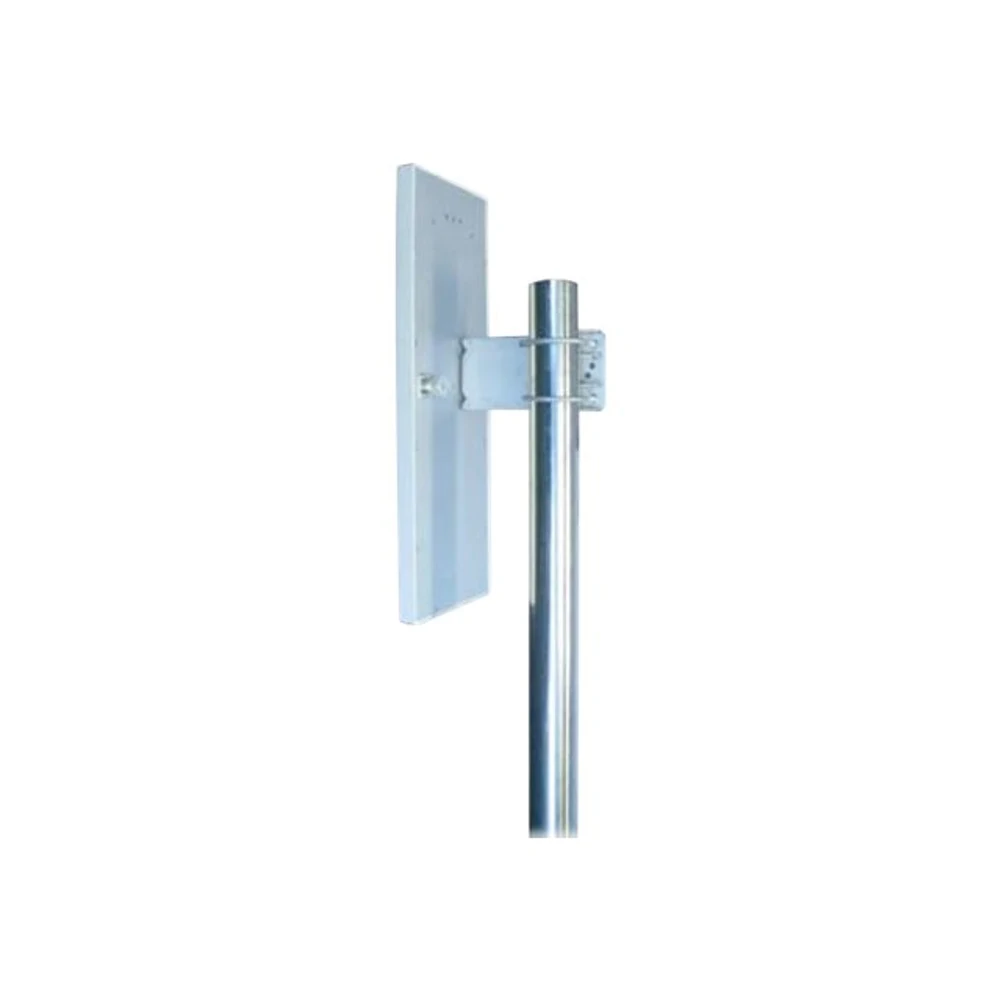

ANT-2x2-2714 2.4G 14dBi Sector
New: 12-month warranty, manufacturer-backed and mirrored locally (longer where the manufacturer's own warranty is longer).
30-day returns on unopened items — you arrange the courier; we pay it on faulty or dead-on-arrival units.
ANT-2x2-2714 2.4G 14dBi Sector.
Product Type: Antenna. Product Material: Powder-coated aluminium, acrylonitrile butadiene styrene (ABS). Width: 30.6 cm. Depth: 30.6 cm. Height: 2.5 cm. Weight: 1.7 kg. Intended For: Wi-Fi. Aerial Placing / Mounting: Outdoor, wall-mountable, pole mount.
Specifications
Highlights
- Directional 14 dBi gain for 2400 to 2483 MHz Wi-Fi frequency range
- Linear dual polarisation with 2x2 MIMO technology support
- 70-degree horizontal and 23-degree vertical beamwidths
- Rugged powder-coated aluminium and ABS outdoor enclosure
- Dual female connectors with 50 Ohm impedance
- Includes mounting kit for wall and pole installations
General
- Product Type
- Antenna
- Product Material
- Powder-coated aluminium, acrylonitrile butadiene styrene (ABS)
- Width
- 30.6 cm
- Depth
- 30.6 cm
- Height
- 2.5 cm
- Weight
- 1.7 kg
Aerial
- Intended For
- Wi-Fi
- Aerial Placing / Mounting
- Outdoor, wall-mountable, pole mount
- Compatibility
- 802.11n
- Frequency Range
- 2400 - 2483 MHz
- Gain
- 14 dBi (for 2.4 - 2.483 GHz)
- Directivity
- Directional
- Voltage Standing Wave Ratio (VSWR)
- 1.5:1
- Horizontal Beamwidth
- 70°
- Vertical Beamwidth
- 23°
- Impedance
- 50 Ohm
Cabling & Wiring
- Connector Provided
- 2 female
Compatibility Information
- Designed For
- HPE Aruba AP-584 (EG) Unified, AP-584 (IL) Unified, AP-584 (JP) Unified, AP-584 (RW) Unified, AP-584 (US) Unified, AP-585 (EG) Unified, AP-585 (IL) Unified, AP-585 (JP) Unified, AP-585 (RW) Unified, AP-587 (EG) Unified, AP-587 (IL) Unified, AP-587 (JP) Unified, AP-587 (RW) Unified, AP-587 (US) Unified
- Designed For
- HPE Aruba AirMesh MSR4KP (JP) MSR4000, MSR4KP (RW) MSR4000, MSR4KP (US) MSR4000
Environmental Parameters
- Min Operating Temperature
- -45 °C
- Max Operating Temperature
- 70 °C
Miscellaneous
- Mounting Kit
- Included
- Features
- MIMO technology, linear dual polarisation
Related Products
iPhone 17E Silicone Case with MagSafe - Black
Apple Power Adapter Extension Cable
RCT Peripherals 32-70 Inch Low Profile Tilt TV Wall Mount
Zebra 6-inch Waterproof DC Power Extension Cable for Screen Blanking
The HPE ANT-2x2-2714 is a high-gain 14 dBi outdoor directional sector antenna designed for 2.4 GHz Wi-Fi deployments. Built for network administrators expanding outdoor wireless coverage with compatible HPE Aruba access points, it delivers dual-polarised 2x2 MIMO performance with a 70-degree horizontal beamwidth in rugged powder-coated aluminium and ABS housing.
Frequently asked questions
What is the HPE ANT-2x2-2714 antenna used for?
- The HPE ANT-2x2-2714 is designed to deliver targeted, high-gain 2.4 GHz Wi-Fi coverage across outdoor sectors. Featuring a 70-degree horizontal beamwidth, it is well suited for campus perimeters, outdoor gathering areas, and perimeter wireless distribution.
Which access points are compatible with this antenna?
- This antenna is designed for HPE Aruba wireless platforms, including AP-584, AP-585, and AP-587 Unified access points, as well as AirMesh MSR4000 series devices with external antenna connectors.
Does the HPE ANT-2x2-2714 come with a warranty?
- Yes, purchases made through Server Hub include a local South African warranty for reliable product support and after-sales service.
